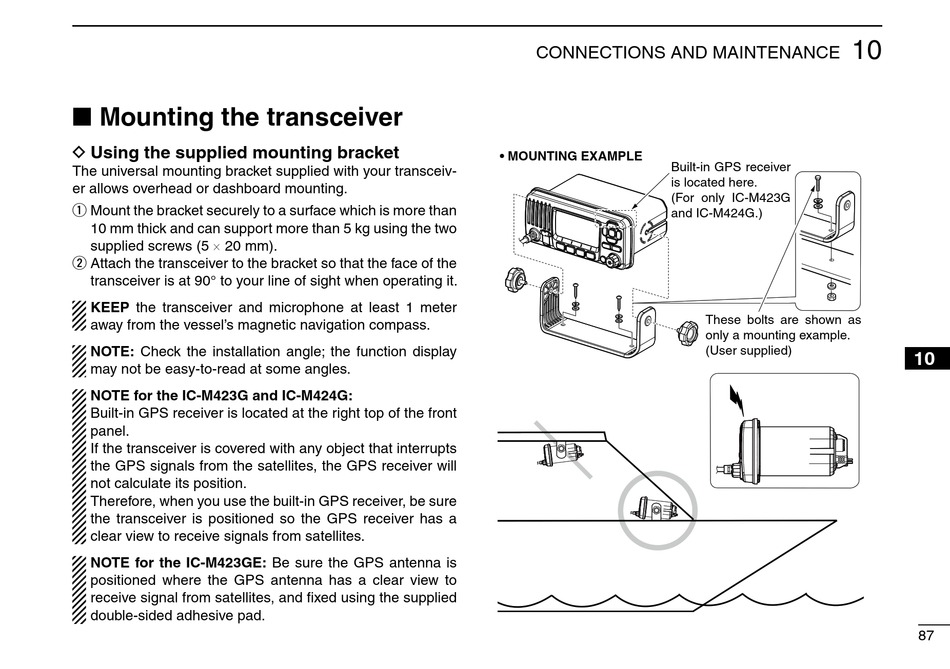

■ Mounting the transceiver

D Using the supplied mounting bracket
The universal mounting bracket supplied with your transceiv-
er allows overhead or dashboard mounting.
q Mount the bracket securely to a surface which is more than
10 mm thick and can support more than 5 kg using the two
supplied screws (5 × 20 mm).
w Attach the transceiver to the bracket so that the face of the
transceiver is at 90° to your line of sight when operating it.
KEEP the transceiver and microphone at least 1 meter
away from the vessel's magnetic navigation compass.
NOTE: Check the installation angle; the function display
may not be easy-to-read at some angles.
NOTE for the IC-M423G and IC-M424G:
Built-in GPS receiver is located at the right top of the front
panel.
If the transceiver is covered with any object that interrupts
the GPS signals from the satellites, the GPS receiver will
not calculate its position.
Therefore, when you use the built-in GPS receiver, be sure
the transceiver is positioned so the GPS receiver has a
clear view to receive signals from satellites.
NOTE for the IC-M423GE: Be sure the GPS antenna is
positioned where the GPS antenna has a clear view to
receive signal from satellites, and fixed using the supplied
double-sided adhesive pad.
CONNECTIONS AND MAINTENANCE
• MOUNTING EXAMPLE
Built-in GPS receiver
is located here.
(For only IC-M423G
and IC-M424G.)
10
These bolts are shown as
only a mounting example.
(User supplied)
