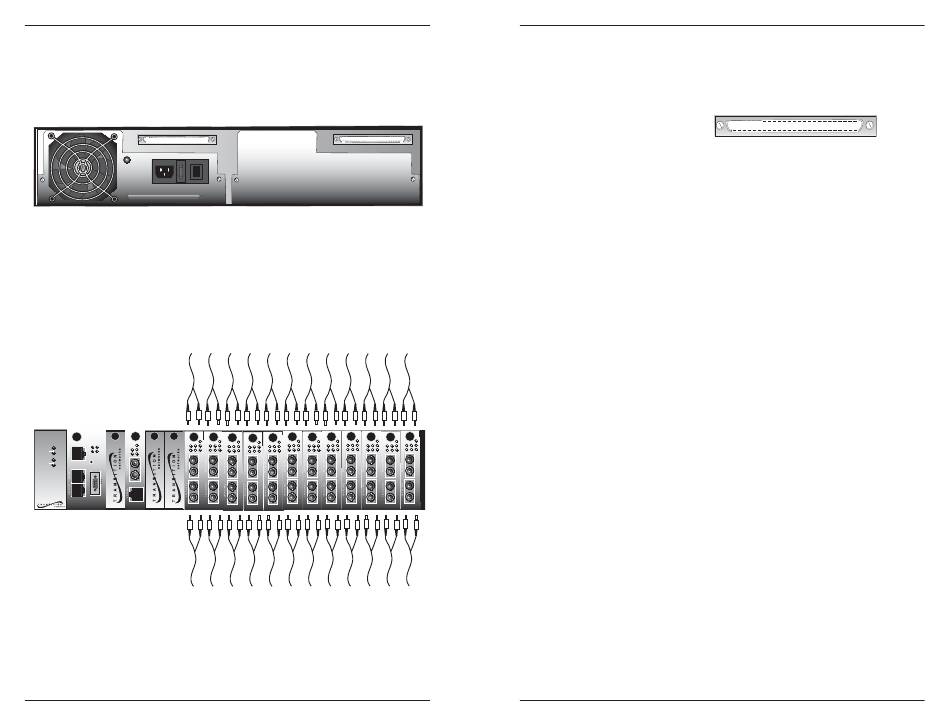

Telco Network Connection
The TELCO option CPSMC1850 Media Conversion Center is shipped with two
(2) 50-pin Telco connectors installed at the chassis back. Each TELCO 50-pin
connector concentrates twelve (12) UTP connections, which are broken out to
six (6) two-port Media Converter Slide-In-Module installation slots.
RJ-21 Telco Connector #1
I
0
TELCO Signals
Signals from TELCO connector #2 go to slots 7-12 and signals from the TELCO
connector #1 go to slots 13-18. (See page 5.)
Two (2) sets of signals go to the connector on the upper portion of the media
converter (Converter 1) and two (2) sets of signals go to the connector on the
lower portion of the media converter (Converter 2).
Media
Conversion
Center
TX
PWR
PWR
LKF
Power
1
RXF
In Use
RX
LNK
RXC
LKC
Power
TX
2
RESET
In Use
RX
MCCM10
MGMT MASTER
CETTF100
CDFTF100
CDFTF100
RJ-21 Telco Connector #2
CDFTF100
CDFTF100
CDFTF100
CDFTF100
CDFTF100
CDFTF100
CDFTF100
CDFTF100
CDFTF100
CDFTF100
Telco Connectors
NOTE: The chart below shows the 50 signals that go through each Telco
connector on the CPSMC1850 to slots 7-12 (Telco connector #2) OR to slots
13-18 (Telco connector #1). In addition, the chart shows how the signals are
distributed to the upper and lower ports in a CDFTFxxxx-10x series media
converter installed each slot.
CHASSIS SLOT
#7 or 13
CHASSIS SLOT
#8 or 14
CHASSIS SLOT
#9 or 15
CHASSIS SLOT
#10 or 16
CHASSIS SLOT
#11 or 17
CHASSIS SLOT
#12 or 18
3
4
25
50
Pin # Signal
{
1
Port 1 Transmit -
{
UPPER
2
Port 1 Receive -
{
3
Port 2 Transmit -
LOWER
4
Port 2 Receive -
{
{
5
Port 3 Transmit -
UPPER
6
Port 3 Receive -
{
7
Port 4 Transmit -
LOWER
8
Port 4 Receive -
{
9
Port 5 Transmit -
{
UPPER
10
Port 5 Receive -
{
11
Port 6 Transmit -
LOWER
12
Port 6 Receive -
{
{
13
Port 7 Transmit -
UPPER
14
Port 7 Receive -
{
15
Port 8 Transmit -
LOWER
16
Port 8 Receive -
{
{
17
Port 9 Transmit -
UPPER
18
Port 9 Receive -
{
19
Port 10 Transmit -
LOWER
20
Port 10 Receive -
{
{
21
Port 11 Transmit -
UPPER
22
Port 11 Receive -
{
23
Port 12 Transmit -
LOWER
24
Port 12 Receive -
25
N.C.
1
26
Pin # Signal
26
Port 1 Transmit +
27
Port 1 Receive +
28
Port 2 Transmit +
29
Port 2 Receive +
30
Port 3 Transmit +
31
Port 3 Receive +
32
Port 4 Transmit +
33
Port 4 Receive +
34
Port 5 Transmit +
35
Port 5 Receive +
36
Port 6 Transmit +
37
Port 6 Receive +
38
Port 7 Transmit +
39
Port 7 Receive +
40
Port 8 Transmit +
41
Port 8 Receive +
42
Port 9 Transmit +
43
Port 9 Receive +
44
Port 10 Transmit +
45
Port 10 Receive +
46
Port 11 Transmit +
47
Port 11 Receive +
48
Port 12 Transmit +
49
Port 12 Receive +
50
N.C.
CDFTFxxxx-10x
