RT3 Headlight Aiming Procedure
4. Mark (or tape) the vehicle centerline of the
headlights and the vehicle itself on the
screen. Mark the horizontal centerline of the
headlights on the screen (distance from
ground to headlight centers).
The correct visual aim for Type 2 headlights is
with the top edge of the high intensity zone of the
lower beam below the horizontal centerline and
the left edge of the high intensity zone on the
vertical centerline. See diagram above.
Screen Located
25' From
Headlights

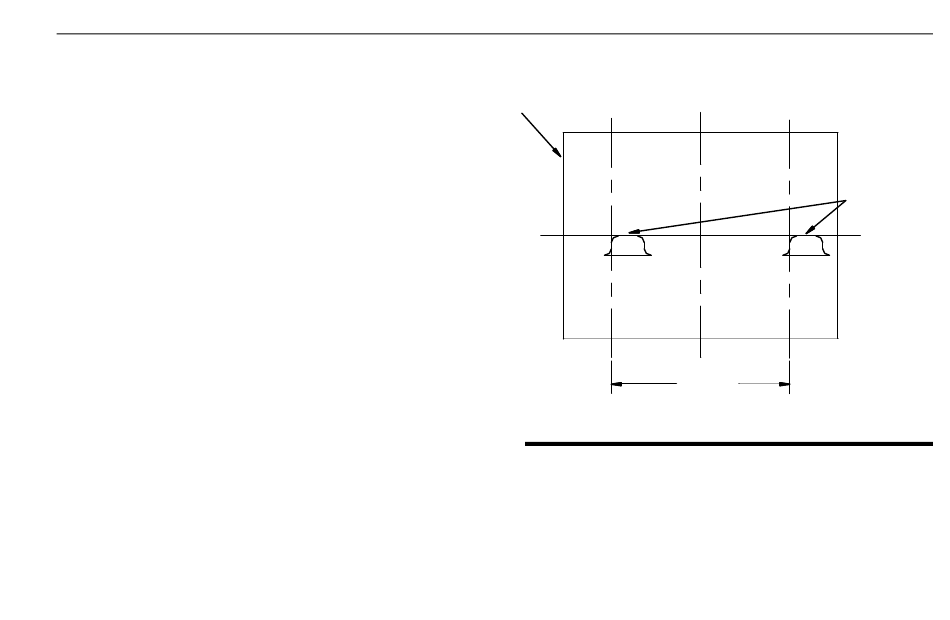

Figure 36. Headlight Aiming Procedure
81
Vertical
Centerline
Align With
Ahead
Vehicle
of Right
Centerline
Headlight
Distance
Between
Headlight
Centers
High Intensity
Zones
For Type 2
(Sealed
Beam)
Headlights on
Low Beam
G10153
