Low Flow Hydraulic Kit
for Grandstand
®
Part No. MSC13950
Register at www.bossplow.com.
Multi Force Snow Machine or Mower
Installation
Determine the left and right sides of the machine from
the normal operating position.
Preparing the Machine
1.
Park the machine on a level surface, shut off the
engine, wait for all moving parts to stop, engage
the parking brake, and remove the key.
2.
Support the machine on jack stands.
3.
Release the cushion for rear access according
to the instructions in your Grandstand Multi
Force Operator's Manual.
Note:
You can also remove the fuel tank at
this time; refer to your Grandstand Multi Force
Operator's Manual.
4.
If a mower deck is attached to the machine,
remove it according to the instructions in your
Grandstand Multi Force Operator's Manual.
5.
Place the front frame cross-tube on a jack and
raise the machine until the caster wheels clear
the ground.
6.
Remove the outer bolts and nuts securing the
caster wheels in place
Right Caster Shown
1. Outer bolt and nut
7.
Rotate the caster wheels to the rear position and
secure them with the previously removed bolts
and nuts
(Figure
Original Instructions (EN)
All Rights Reserved *MSC13989* F
Printed in the USA
Form No. MSC13989 Rev F
Installation Instructions
(Figure
1).

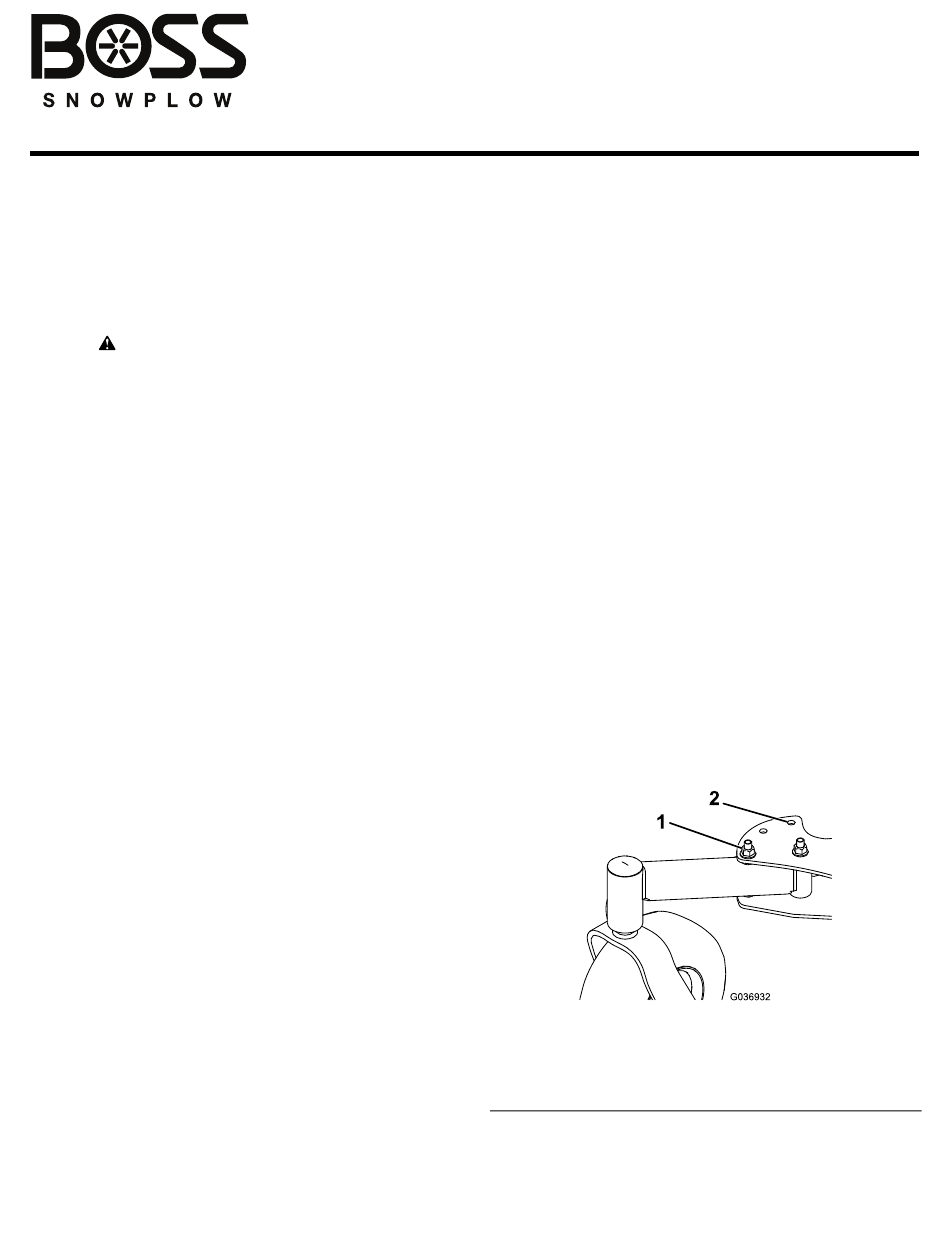

Figure 1
2. Rear wheel position
1).
g036932

Advertisement

loading
Need help?

Need help?

Do you have a question about the MSC13950 and is the answer not in the manual?

Questions and answers

Summary of Contents for Boss Snowplow MSC13950

  • Page 1 Form No. MSC13989 Rev F Low Flow Hydraulic Kit for Grandstand ® Multi Force Snow Machine or Mower Part No. MSC13950 Installation Instructions Safety Installation Determine the left and right sides of the machine from Improper use or maintenance by the operator or the normal operating position.
  • Page 2: Installing The Controller

    Note: Torque the bolts to 101 N∙m (75 ft-lb). Installing the Controller Remove the hour meter from the machine by squeezing the tabs underneath the control panel and pushing up (Figure g036935 Figure 4 1. Strain relief Route the controller cord through the opening for the hour meter and slide the strain relief plug g036933 Figure 2...
  • Page 3 Important: The fuel tank is located directly behind the side plate. Remove the fuel tank or place a steel plate between the fuel tank and side plate to prevent damaging the tank. Secure the hydraulic manifold mounting bracket to the machine using 3 bolts (3/8 x 1 inch), 3 flat washers, and 3 nylon locknuts (Figure g303475...
  • Page 4: Installing The Hoses

    Installing the Hydraulics Install the 90° fittings to the lift cylinder (Figure Attach the hydraulic cylinder to the A-frame using 2 shoulder bolts (1/2 inch) and bushings (Figure 9), and torque the bolts to 77 N∙m (57 ft-lb). Note: The rod end of the cylinder may need to be rotated to slide the cylinder into the A-frame.
  • Page 5 Apply a thin film of hydraulic fluid to the filter and install the filter head, filter, and 45° hose fitting to the fitting in the T port on the manifold as shown Figure Note: Ensure that the flow arrow on the filter head is pointing away from the manifold.
  • Page 6: Finishing The Installation

    Finishing the Installation Install the previously removed hour meter. Install the fuel tank if it was removed. Start the machine; refer to your Grandstand Multi Force Operator’s Manual. Use the controls to move the hydraulics in all directions to cycle the hydraulic fluid. With the hydraulic cylinder fully extended, shut off the engine and wait for all moving parts to stop.
  • Page 7 WARNING Hydraulic fluid escaping under pressure can penetrate skin and cause injury. • Seek immediate medical attention if fluid is injected into skin. Injected fluid must be surgically removed within a few hours by a doctor. • Ensure that all hydraulic-fluid hoses are in good condition, and all that the hydraulic connections and fittings are tight before applying pressure to the...
  • Page 8 Schematics g037075 Electrical Schematic (Rev. 0)
  • Page 9 g037128 1. R valve 6. Angle right coil (red) AISE OWER 2. Float coil (blue) 7. Raise coil (orange wire) 3. Lower coil (white) 8. A valve NGLE IGHT 4. Float coil (red and black) 9. Pressure relief valve 5. Angle left coil (green) Hydraulic Manifold (Rev.
  • Page 10 Notes:...
