Straight Blade Controllers
Joystick Control Operating
Instructions

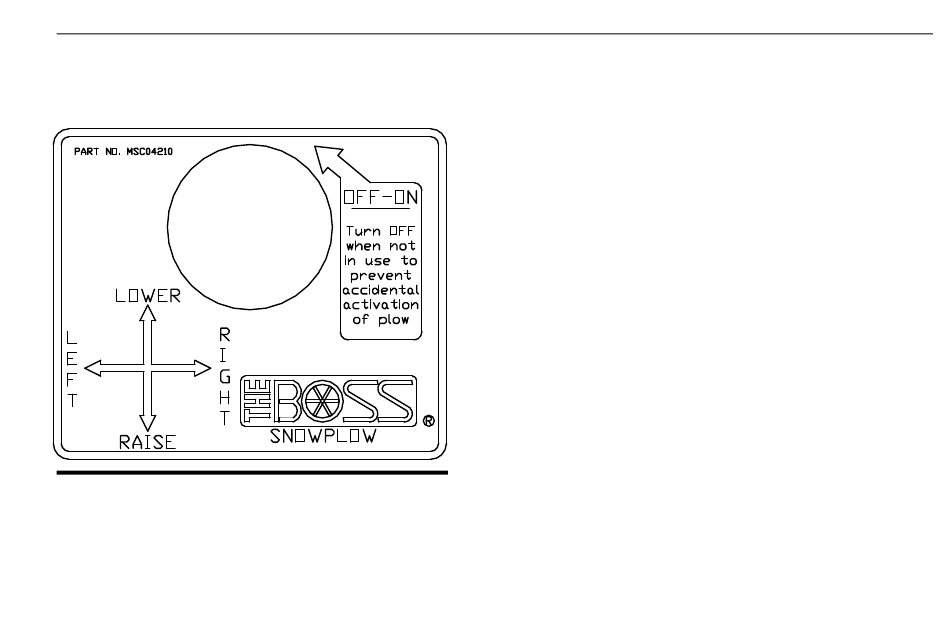

Figure 26. Straight Blade Control Operation G10154
1. Toggle the ON/OFF switch to the ON
position. A red indicator light will illuminate
on the switch. The joystick is now active.
2. To RAISE the blade of the plow, pull the control
stick towards you.
3. To LOWER the blade of the plow, push the
control stick away from you.
4. To FLOAT the blade along the contour of the
plowing surface, push the controller away from
you until the stick reaches the detent position.
(You will feel the stick click into the detent
position.) The joystick will stay in the FLOAT
position until it is physically re-centered.
5. To ANGLE the blade RIGHT, push the
controller stick to the right.
6. To ANGLE the blade LEFT, push the controller
stick to the left.
7. The control should be turned off when not in
use. It can then be unplugged and stored.
