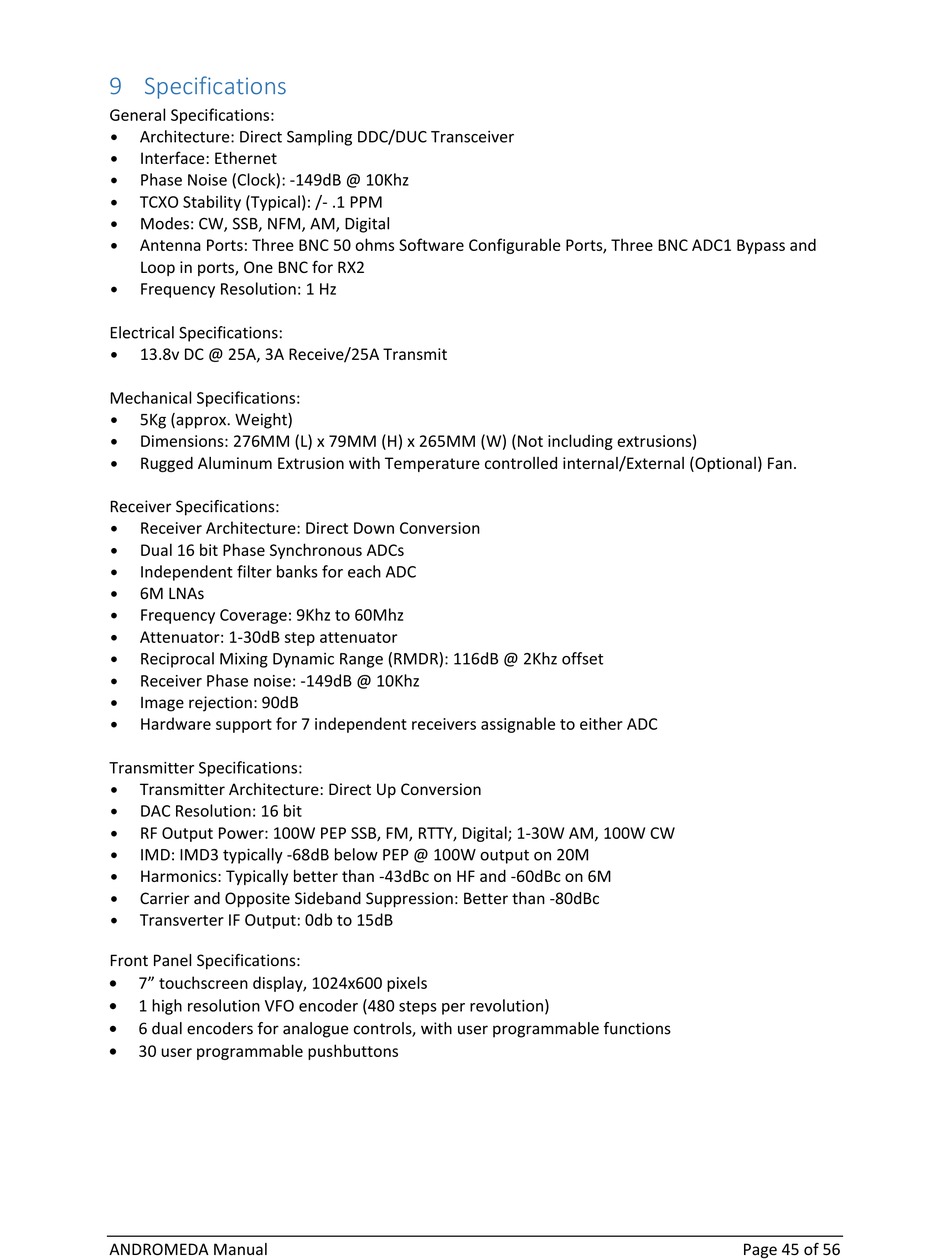

9 Specifications
General Specifications:

Architecture: Direct Sampling DDC/DUC Transceiver

Interface: Ethernet

Phase Noise (Clock): ‐149dB @ 10Khz

TCXO Stability (Typical): /‐ .1 PPM

Modes: CW, SSB, NFM, AM, Digital

Antenna Ports: Three BNC 50 ohms Software Configurable Ports, Three BNC ADC1 Bypass and
Loop in ports, One BNC for RX2

Frequency Resolution: 1 Hz
Electrical Specifications:

13.8v DC @ 25A, 3A Receive/25A Transmit
Mechanical Specifications:

5Kg (approx. Weight)

Dimensions: 276MM (L) x 79MM (H) x 265MM (W) (Not including extrusions)

Rugged Aluminum Extrusion with Temperature controlled internal/External (Optional) Fan.
Receiver Specifications:

Receiver Architecture: Direct Down Conversion

Dual 16 bit Phase Synchronous ADCs

Independent filter banks for each ADC

6M LNAs

Frequency Coverage: 9Khz to 60Mhz

Attenuator: 1‐30dB step attenuator

Reciprocal Mixing Dynamic Range (RMDR): 116dB @ 2Khz offset

Receiver Phase noise: ‐149dB @ 10Khz

Image rejection: 90dB

Hardware support for 7 independent receivers assignable to either ADC
Transmitter Specifications:

Transmitter Architecture: Direct Up Conversion

DAC Resolution: 16 bit

RF Output Power: 100W PEP SSB, FM, RTTY, Digital; 1‐30W AM, 100W CW

IMD: IMD3 typically ‐68dB below PEP @ 100W output on 20M

Harmonics: Typically better than ‐43dBc on HF and ‐60dBc on 6M

Carrier and Opposite Sideband Suppression: Better than ‐80dBc

Transverter IF Output: 0db to 15dB
Front Panel Specifications:

7" touchscreen display, 1024x600 pixels

1 high resolution VFO encoder (480 steps per revolution)

6 dual encoders for analogue controls, with user programmable functions

30 user programmable pushbuttons
