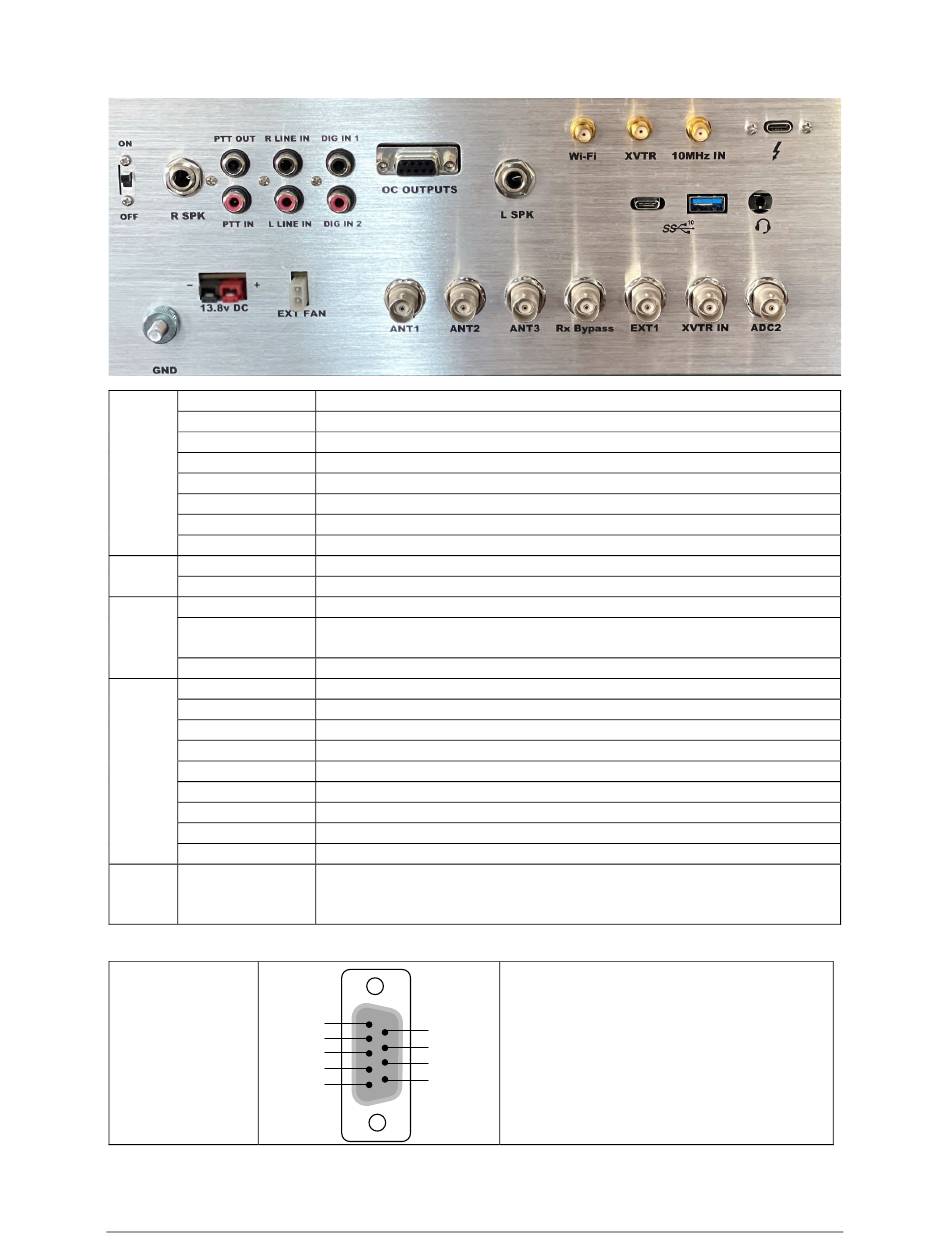

3 Rear Panel Connections
GND
ANT 1 ‐ 3
RF Bypass
EXT1
RF
XVTR In
ADC2
XVTR
10MHz in
Ext Fan
Power
13.8V DC
3.5mm Audio
USB3, USB‐C and
PC
Thunderbolt
Wi‐Fi
OC Out
Dig In 1
Dig In 2
L Line in
Aux
R Line in
Radio
PTT In
PTT Out
L SPK
R SPK
Bootloader switch
(top left)
Open collector
pinouts:
1: GND
2: REF
3: OC7
4: OC6
5: OC5
ANDROMEDA Manual
RF earthing stud
3 independent TX & RX1 Antenna connectors
RX input bypassing RX filtering. Puresignal feedback input for an external PA
RX input bypassing the T/R switch
Transverter RF input
RX2 Antenna
Low power TX signal to Transverter
10MHz reference input
DO NOT USE
PowerPole® 13.8V DC, 30A power supply input
PC 3.5mm "TRRS" audio connector
PC USB3.1 Type A and Type C connectors. A keyboard and mouse can be
connected. A USB3 hub will provide HDMI for an external display
Wi‐Fi antenna connection
7 user configurable Open Collector Outputs
User digital input 1
User digital input 2
Left TX audio line input
Right TX audio line input
PTT Input: short this signal to ground to initiate PTT
PTT output: grounded if TX active (eg to key external equipment)
Connection for left speaker
Connection for right speaker
When set to "On" the DSP board will boot up after power up into the "BOOT
Loading" state, and be ready to receive firmware updates using the HPSDR
bootloader. Set to "Off" for normal operation.
6: OC4
7: OC3
8: OC2
9: OC1
GND = 0V
OC1‐OC7 are separate open collector
outputs. Each connects to 0V when active.
REF should be connected to the highest
supply voltage used by OC1‐OC7 (typically
5V or 12V)
