Tests

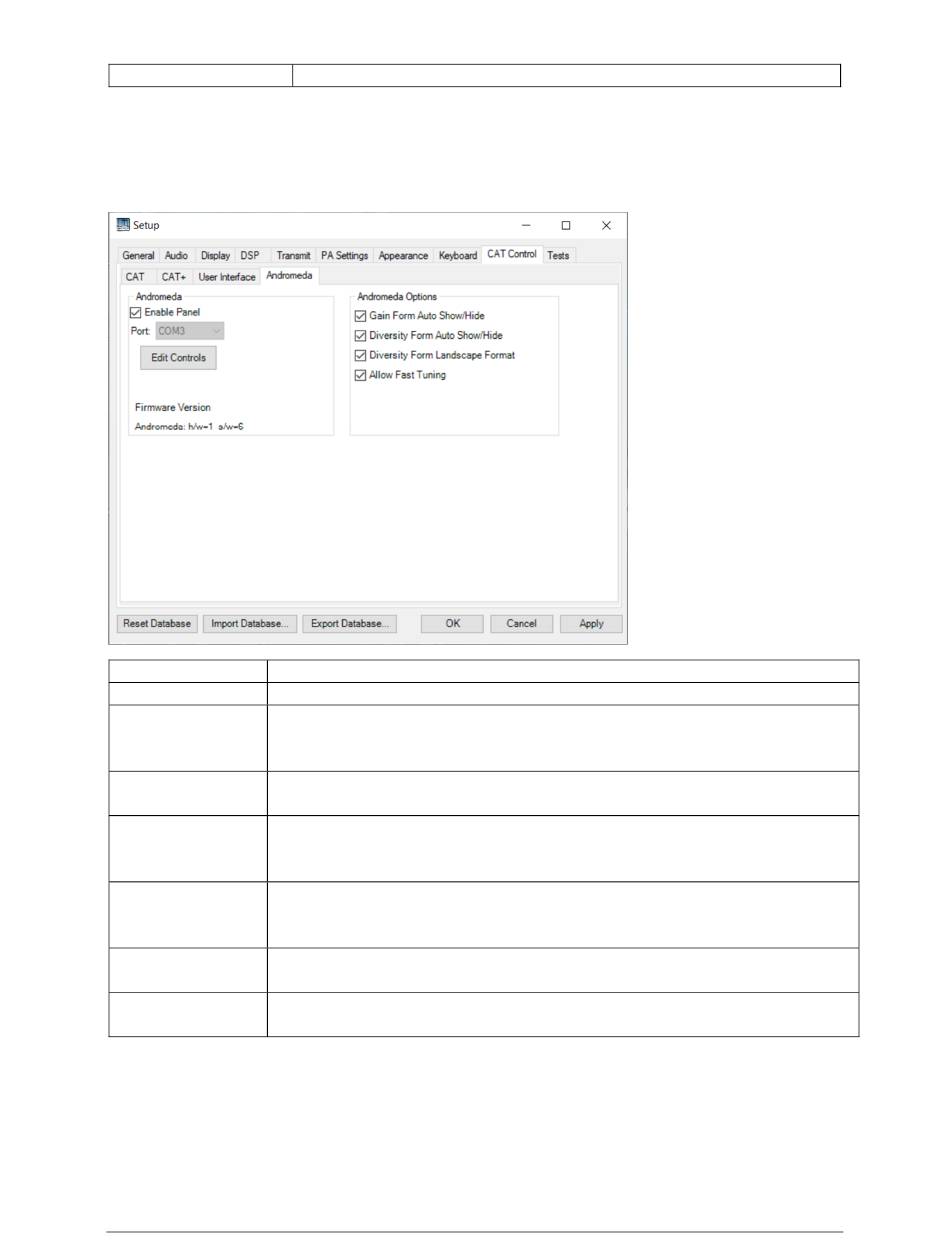

7.2 ANDROMEDA Setup screen
This form is found at the Menu > Setup > CAT control > ANDROMEDA page. It allows the PC serial
(CAT) port to be set, and various options to be selected.
Port Selects the COM port for connection to ANDROMEDA
Enable Panel When clicked, a connection is established
Edit Controls Brings up the ANDROMEDA Settings Editor form (see section 7.3). This allows
the assignments for rotary controls, pushbuttons, indicators and softkey
menus to be edited
Firmware version Shows the hardware and software version reported by the ANDROMEDA panel
controller.
Gain Form Auto If ticked, the gain settings form will automatically be shown if a rotary control
Show/Hide is turned that controls a setting that is on the form. If there is no activity it will
auto hide after 10 seconds. It gives a quick way to see all the gain settings.
Diversity Form If ticked, the Diversity form will automatically be shown if a rotary control for
Auto Show/Hide diversity gain or phase is turned. If there is no activity it will auto hide after 10
seconds.
Diversity Form If ticked, the diversity form is shown in a landscape (wide) format. This fits
Landscape format better to small screens.
Allow Fast Tuning If ticked, the VFO knob tune rate increases as it is turned faster. Above approx.
1 turn per second, its speed increases to allow fast movement across the band.
7.3 Changing Front Panel Control Assignments
This form is invoked from the setup form to change the control assignments for ANDROMEDA front
panel pushbuttons, encoders and indicators. Also the softkey menus at the bottom of the
ANDROMEDA display layout can be edited.
ANDROMEDA Manual
Controls various signal generator and TX tests.
