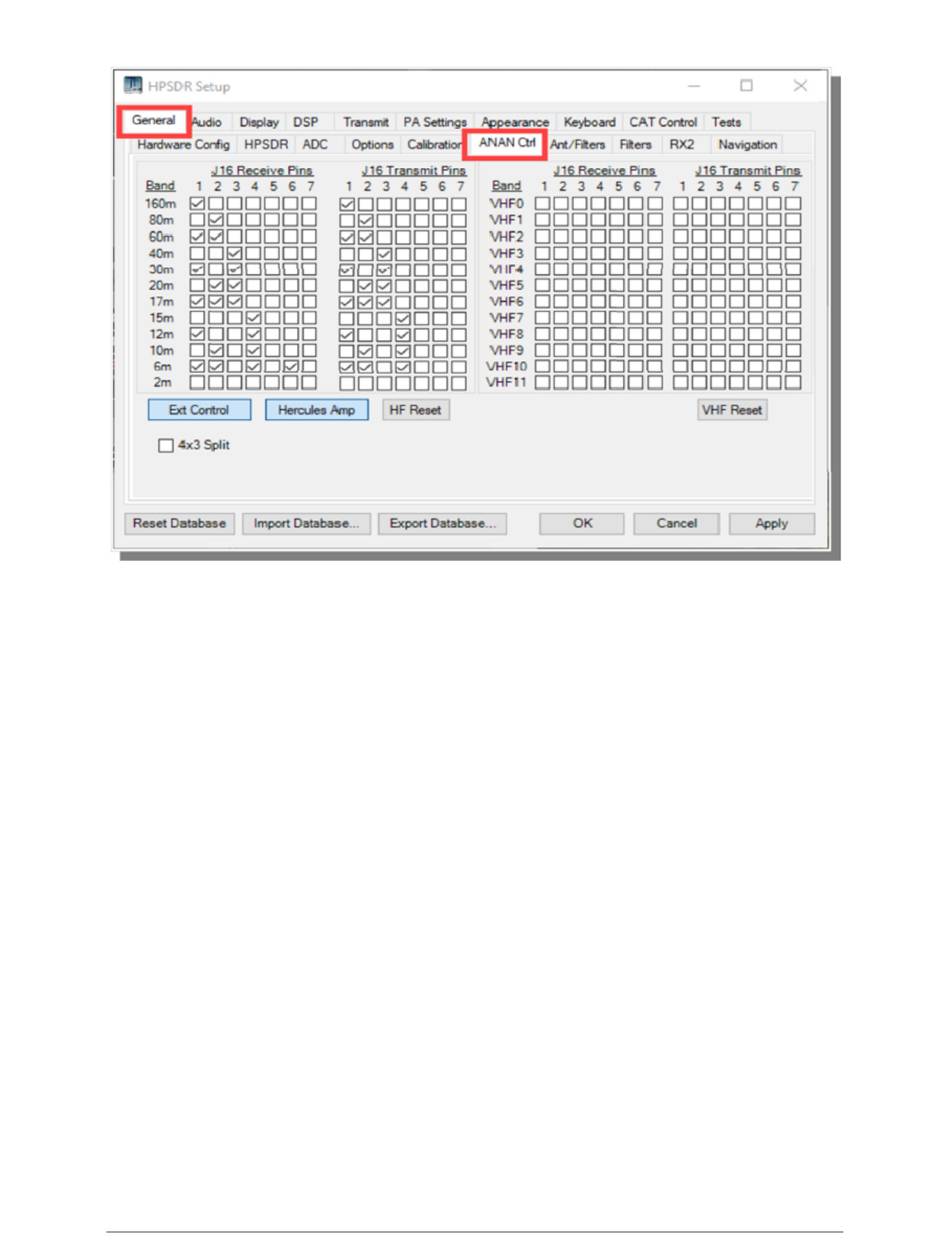

4x3 Split – When enabled the 7 OC outputs are split into 1x4 and 1x3. The first 4‐bits are controlled
by VFOA band data and the upper 3 are controlled by VFOB band data.
8.1.4 Puresignal
To get Puresignal linearization your amplifier will need a coupler to take a sample of the TX signal
and provide it back to ANDROMEDA. It should be just above 0dBm at normal operation. The signal
should be connected to the RX Bypass input connector. That input needs to be enabled on the
Antenna tab of the Setup form:
ANDROMEDA Manual
Page 42 of 56
