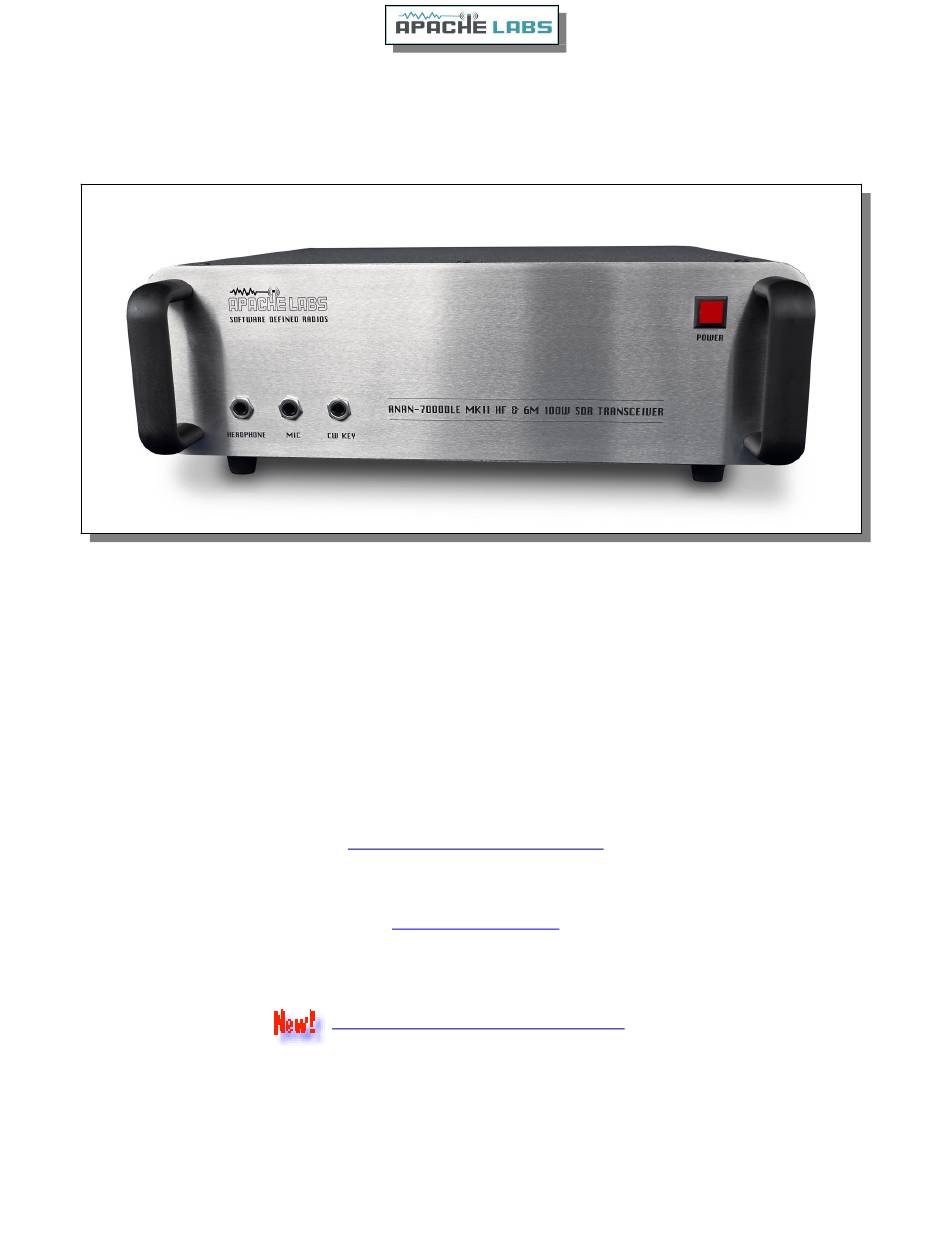

ANAN-7000DLE MKII User Guide

This document contains the words Apache, ANAN-10, ANAN-10E,

ANAN-100, ANAN-100D, ANAN-200D, ANAN-7000DLE, ANAN-7000DLE MKII, ANAN-

8000DLE

in reference to the Apache Labs Transceiver products

http://www.apache-labs.com

In cooperation with VK6PH, NRØV, W5WC, K5SO

and the OpenHPSDR Hardware and Software Projects

http://openhpsdr.org

all images and manufacturer data is copied here with permission of the owner

Apache Labs Community Forum

26 February 2019

Table of Contents

Need help?

Do you have a question about the ANAN-7000DLE MKII and is the answer not in the manual?

Questions and answers

Summary of Contents for Apache Labs ANAN-7000DLE MKII

Page 1 Apache Labs ANAN-7000DLE MKII User Guide This document contains the words Apache, ANAN-10, ANAN-10E, ANAN-100, ANAN-100D, ANAN-200D, ANAN-7000DLE, ANAN-7000DLE MKII, ANAN- 8000DLE in reference to the Apache Labs Transceiver products http://www.apache-labs.com In cooperation with VK6PH, NRØV, W5WC, K5SO and the OpenHPSDR Hardware and Software Projects http://openhpsdr.org...
Page 2: Table Of Contents
Contents – ANAN-7000DLE MKII Users Guide Apache Labs - Declarations of Conformity..............5 Apache Labs Products CE and RTTE Certified..............5 Heat Dissipation......................5 Clarification ICAS [100W] operation................5 1. ANAN-7000DLE Architecture......................6 7000DLE MKII Design Team..................6 7000DLE MKII Specifications..................7 PA board........................6 General Specifications....................7 Electrical Specifications....................7 Mechanical Specifications....................7...
Page 3 Apache Service and Repair..................45 Manual Calibration Procedure..................46 Computer Performance....................47 Warranty........................48 IMPORTANT.......................48 MARS operation......................49 APIPA Automatic Private IP Addressing................49 Apache Labs Orion MkII PCB..................50 ANAN-7000DLE MKII PA/FILTER PCB................51 Appendix.............................53 Apache Schematics.....................53 Balanced Audio Input....................53 Copyright Apache Labs © page 3 26 February 2019...
Page 4 Independent versions of PowerSDR software..............53 Multiple independent .xml databases................53 Updating the ANAN-7000DLE MKII Firmware..............54 HPSDRProgrammer v2.0.4.10..................55 Assign Static IP Address using HPSDRProgrammer............56 HPSDRBootloader v2.0....................57 Assign Static IP Address using HPSDRBootloader............58 Copyright Apache Labs © page 4 26 February 2019...
Page 5: Contents - Anan-7000Dle Mkii Users Guide Apache Labs - Declarations Of Conformity
Apache Labs LLC, Inc. - Declarations of Conformity The ANAN-7000DLE MKII complies with FCC Part 97 rules for the Amateur Radio Service. It has been confirmed by the relevant authorities that the ANAN-7000DLE MKII DOES NOT require FCC certification. Under rule 97...
Page 6: Anan-7000Dle Architecture
Use of two 16-bit phase synchronous ADCs allow for advanced applications such as Diversity reception for ultimate noise mitigation and effects of signal fading. The ANAN-7000DLE MKII HF & 6M 100W SDR Transceiver offers top of the line performance in a rugged package, it is based on the work of the OpenHPSDR community.
Page 7: 7000Dle Mkii Specifications
IMD3 typically -68dB below PEP @ 100W output on 20M Harmonics: Typically better than -43dBc on HF and -60dBc on 6M Carrier and Opposite Sideband Suppression: Better than -80dBc Transverter IF Output: 0db to 15dB Copyright Apache Labs © page 7 26 February 2019...
Page 8: Additional I/O Connections
“in the barrel” or “underwater” sound. The new Spectral Noise Blanker specifically uses sophisticated statistical models of speech and noise to produce superior signal-to-noise ratios and vibrant sound output. Copyright Apache Labs © page 8 26 February 2019...
Page 9: Minimized Latency
(2) sharp “brick-wall” linear-phase filters inherently have long latency, no matter how cleverly they are implemented. Both these issues have been addressed and conquered in the ANAN-7000DLE MKII Transceiver. Small “buffers”, requiring little collection time, can now be used even while retaining the very sharp “brick-wall”...
Page 10: Introduction
Note - ANAN-7000DLE i5/i7 (embedded): The ANAN-7000DLE MKII i5/i7 integrate an embedded computer inside the radio chassis, the monobloc SDR is preloaded with Windows 10 and PowerSDR mRX is configured at the factory, all basic settings such as PA and Rx level calibration is done at the factory.
Page 12: Suitable Routers Or Lan Network Switches
A 100 BaseT Ethernet switch may be used in the interim, but if a new purchase is planned then a 1000 BaseT [Gigabit] switch is recommended. An Ethernet “HUB” will not work properly and is not recommended. Note: an Ethernet Surge Protector is recommended for all delicate Ethernet equipment. Copyright Apache Labs © page 12 26 February 2019...
Page 13: Simple Network Setup
Note: the Front Panel connections to the 7000DLE MKII are 6.25mm stereo jacks. Recommended Software Windows 7, 8, or 10 recommended. Microsoft .NET 2.0 & 4.0 Framework required. OpenHPSDR PowerSDR mRX PS (multi-receiver with PureSignal) OpenHPSDR and download information Copyright Apache Labs © page 13 26 February 2019...

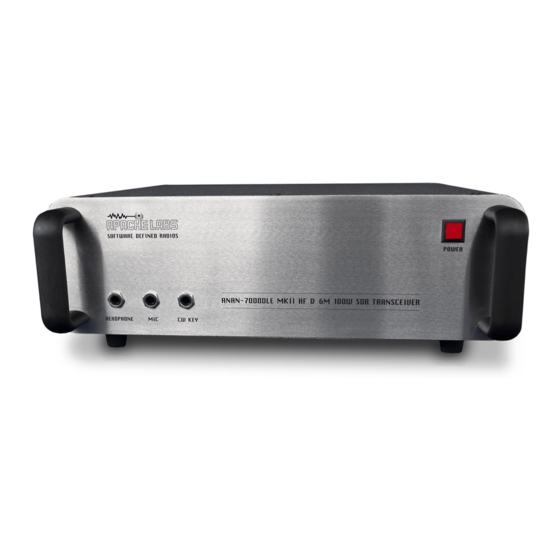

Page 14: Anan-7000Dle Mkii Front Panel
ANAN-7000DLE MKII Front Panel ANAN-7000DLE Front Panel connections Connector Number Connector Detail Headphone Microphone CW Key/Paddles Power on/off switch Copyright Apache Labs © page 14 26 February 2019...
Page 15: Anan-7000Dle Mkii Back Panel
ANAN-7000DLE MKII Back Panel ANAN-7000DLE MKII back panel details Connector Number Connector Detail PowerPole ® 13.8vdc 30A Power Supply connection External Fan connector (optional) mating plug TE#158619-2 ANT-1 ANT-2 ANT-3 Rx Bypass EXT1 XVTR IN Rx 2 XVTR OUT 10Mhz IN Right Speaker 1/4”...
Page 16: Embedded Versions I5/I7 Quick Start
ANAN-7000DLE MKII i5/i7 Quick Start: 1. Make sure that you have the following equipment and accessories: A 13.8v 30A Power Supply • 50 Ohm Dummy load capable of at least 100W load capacity • An HDMI Computer Monitoring • Keyboard/Mouse (either USB or Wireless) •...
Page 18: Anan-7000Dle Mkii Rca Connectors
ANAN-7000DLE RCA Connectors The Digital Input Lines are buffered. Digital Input Line-1 used for TX Inhibit when switched to ground. Digital Input Line-2 used for CW Straight Key or Keyer connection. Copyright Apache Labs © page 18 26 February 2019...
Page 20: Powersdr Mrx Ps Instructions
Connect an Ethernet cable between the front panel RJ45 LAN jack and your router, Gigabit switch, or PC Ethernet port. Note: the Automatic Private IP (IP) Assignment (APIPA) feature is incorporated in the firmware of the ANAN-7000DLE MKII. Copyright Apache Labs ©...
Page 21: Software Setup
Software Setup Turn on your power supply. Push the POWER button on the ANAN-7000DLE Transceiver. The ANAN-7000DLE MKII with integrated i5/i7 CPUs come preconfigured with Windows 10 and PowerSDR, the client software is preconfigured and is ready for operation out of the box, simply power up the radio and let it boot to the Windows 10 home page, you may then launch the client using the PowerSDR icon.
Page 22: Powersdr Mrx Ps Installation Wizard
If this is a new software install or the database.xml file is missing you will be presented with the Setup Wizard menu. Click on the ANAN-7000DLE button and then Next, Next, Finish. PowerSDR mRX PS console Copyright Apache Labs © page 22 26 February 2019...
Page 23: Powersdr Mrx Ps Setup Menu
Link Light on the RIGHT side of the LAN connector is illuminated. The DATA Light on the LEFT side of the LAN connector will blink as data is transferred to/from the PC. Copyright Apache Labs © page 23 26 February 2019...
Page 24: Powersdr Mrx Ps Ip Address
The new HPSDRProgrammer V2 utility allows you to assign a STATIC IP ADDRESS if you wish. Please see the APIPA appendix of this document for more information. Copyright Apache Labs © page 24 26 February 2019...
Page 25: Ssb Phone Operation
Example: here is a link to a $3 USD microphone using the keyboard space bar for push-to-talk: http://www.officedepot.com/a/products/969486/Cyber-Acoustics-ACM-51-Boom-Microphone/ PowerSDR mRX PS has a convenient Setup menu with individual selections for Tip and Ring settings. Copyright Apache Labs © page 25 26 February 2019...
Page 26: Mic Adapters
A Ham style, multi-pin microphone requires an adapter. Various adapters are readily available or can be configured for the Apache 1/8” or 1/4” Stereo style MIC socket. The Apache Labs Yahoo Group Files section has information about MIC connections and alternatives such as Headsets using a Virtual Audio Cable [VAC] utility or “VB-Audio”.
Page 27: Setting Up Powersdr For Phone Operation
0db. To enable or disable COMPRESSION click on the COMP button. We recommend that you set COMPRESSION to no more than 6dB. Copyright Apache Labs © page 27 26 February 2019...
Page 28: Tune
This filter tailors the transmitting frequency response in voice modes. The default for high is 3100hz. You can modify this and other values as needed before hitting the "Save" profile button to save for later recall. Copyright Apache Labs © page 28 26 February 2019...
Page 29: Bpf1/Lpf Filters Control Menu
Disable HF PA disables the PA on HF bands. There is a separate Disable PA selection on the XVTR Form for use with a transverter. Gnd BPF2 on Tx forces the input to ADC2/BPF2 to be grounded when transmitting. Copyright Apache Labs © page 29 26 February 2019...
Page 30 The Firmware/Manual radio buttons should be left in Firmware mode for most operations. Selecting Manual will allow you to control which receive and transmit filters are selected as well as seeing which filter is in use. Copyright Apache Labs © page 30...
Page 31: Cw Operation
The appearance of the Panadapter can be adjusted with the ZOOM settings, Sample Rate, and SETUP –-> DISPLAY –-> RX1 [or RX2] –-> Fast Fourier Transform Size [min to max] Bin width. Copyright Apache Labs © page 31 26 February 2019...
Page 32: Iambic B
Select Iambic A or B from the Settings → DSP → CW menu Note: Unchecking Iambic allows you to use the Paddle input in “Bug” mode or with a Straight Key connected to the DAH paddle input. Copyright Apache Labs © page 32 26 February 2019...
Page 33: Cw Paddle Connection
If you find that your DAH and DIT paddles are reversed, there is a very convenient SETUP check box to put DAH on tip and DIT on Ring of the input PLUG CWU/CWL Select CWLower or CWUpper from the MODE buttons on the console. Note the position of the filter changes. Copyright Apache Labs © page 33 26 February 2019...
Page 34: Select Operating Frequency
Those convenient vertical yellow marker-lines are really great when you are working split. The SPEED of the internal Iambic Keyer is shown at the top of this picture. Set Drive Level Set the DRIVE LEVEL slider to 50% [mid range]. Copyright Apache Labs © page 34 26 February 2019...
Page 35: Break-In Delay
You may wish to start with the default CW DELAY setting of 300ms. That value gives you plenty of time to complete words without tripping the T/R circuit at 20WPM. Set the DELAY to a value that best suits your comfortable operating speed. Copyright Apache Labs © page 35 26 February 2019...
Page 36: Sidetone Level
If you press and hold the left mouse button you can "drag" the frequency of interest into the panadapter highlighted filter area. Roll Mouse Wheel – see console TUNE STEP selections Copyright Apache Labs © page 36 26 February 2019...
Page 37: Tune/Swr/Output
Select the TUNE button to see your SWR and RF OUTPUT power in the upper right corner of the console. Select various meter options to see which one suits your operating style. Copyright Apache Labs © page 37 26 February 2019...
Page 38: Linear Amplifier Connection
Damage to the radio caused in this manner is not covered by Warranty. Linear Amplifier Keying ISOLATION adapters http://www.dxengineering.com/search/product-line/kd9sv-products-sv-kr-keying-relays http://www.ameritron.com/Product.php?productid=ARB-704 http://www.sultantronics.com/product.html The 7000DLE does not offer ALC control for an external amplifier. Copyright Apache Labs © page 38 26 February 2019...
Page 39: Opencollector Bcd Keying
4x3 Split – When enabled the 7 OC outputs are split into 1x4 and 1x3. The first 4-bits are controlled by VFOA band data and the upper 3 are controlled by VFOB band data. Copyright Apache Labs © page 39...
Page 40: Transverter
Drive level to insure the transverter sees the proper level. With the PA Gain by Band spinners set to their default value of 65.0 and the Drive slider to 100 the RF output is approximately 10mW at the XVTR RF SMA connector. Copyright Apache Labs © page 40 26 February 2019...
Page 41: Puresignal Adaptive Pre-Distortion Information
The output of the amplifier can therefore be corrected to behave very much like the ideal case shown above. Editorial note: IMD robs you of the value of an expensive Linear Amplifier by needlessly pumping out bad Energy in opposite sideband and IMD splatter. Copyright Apache Labs © page 41 26 February 2019...
Page 42: Using Puresignal Adaptive Predistortion
IMD by as much as -45dbc or more depending on your particular configuration. PureSignal will continue to optimize your signal as you speak in a normal voice. Copyright Apache Labs © page 42 26 February 2019...
Page 43: Puresignal Update For Powersdr Mrx Ps
It should be noted that there are "proper" ways to increase your average transmit power; those include the use of the Compressor and the CESSB Overshoot Control algorithm. Copyright Apache Labs © page 43 26 February 2019...
Page 44 The width of the "Linearity" window has been expanded to match the width of the "AmpView" window, making it easier to stack the two on the screen. Dr. Warren Pratt NR0V Copyright Apache Labs © page 44 26 February 2019...
Page 45: Reference Materials
Reference materials Apache Labs Web Forum The Apache Labs Web Forum is the central discussion point and main repository of knowledge for the Apache Labs user community Apache Labs Community Forum Nige G7CNF Please be sure to look at the excellent YouTube video produced by Nige G7CNF. If you subscribe to his Channel, you will find specific information about PureSignal, Diversity Reception, Audio chain setup and many other Apache Transceiver topics.
Page 46: Manual Calibration Procedure
Conversely, decreasing Gain By Band will increase Power Amplifier output. Maximum power output per band can be reached at the lowest value in this menu. 8. Select one of the bands on the PA settings TAB. Copyright Apache Labs © page 46 26 February 2019...
Page 47: Computer Performance
‘drop-outs’. The program supports Windows 2000, Windows XP, Windows XP x64, Windows Server 2003, Windows Server 2003 x64, Windows Vista, Windows Vista x64, Windows 7 32 bit and 64 bit and is available here. Latency checker found by N9VV http://www.resplendence.com/latencymon http://www.thesycon.de/ eng /latency_check.shtml Copyright Apache Labs © page 47 26 February 2019...
Page 48: Warranty
"Terms of Use". IMPORTANT The FPGA and other components on the ANAN-7000DLE MKII PCBs can be damaged by Electrostatic Discharge [ESD]. When handling the PCB, you should take ESD precautions [e.g. use a work bench with an antistatic mat on it and wear a grounded wrist strap].
Page 49: Mars Operation
Your current IP address, Firmware revision, and MAC address are all clearly displayed on the Setup → General → Hardware Config menu panel [shown below]. Copyright Apache Labs © page 49 26 February 2019...
Page 56: Appendix
The ANAN-7000DLE schematic are available by request from Apache Labs LLC. Balanced Audio Input is not implemented in the current Apache Labs Transceivers. The LEFT LINE level input is currently selectable in PowerSDR as an alternative to the mic input.
Page 57 When running the HPSDRProgrammer_v2.0.4.10 utility, you can update the FPGA Firmware code. The update files are available from https://github.com/TAPR/OpenHPSDR-Firmware. Firmware Update files will have the “.rbf” suffix. The HPSDRProgrammer utility is specifically designed so you cannot inadvertently overwrite or damage the lower bootloader addresses. Copyright Apache Labs © page 57 26 February 2019...
Page 58: Hpsdrprogrammer V2.0.4.10
3 – Browse to the location of the firmware file you will be using to update the radio. 4 – Click on Program to flash the firmware. Firmware files are available for download from HERE. Copyright Apache Labs © page 58 26 February 2019...
Page 59: Assign Static Ip Address Using Hpsdrprogrammer
3 – Enter the new IP address in the IP Address fields. 4 – Click on Write IP to update the IP address in the radio. To revert back to using DHCP or APIPA click on use DHCP. Copyright Apache Labs © page 59 26 February 2019...
Page 60: Hpsdrbootloader V2.0
Firmware files are available for download from HERE. If you receive this error message, rename the rbf file adding the word metis to the file name. In my example I added it to the end. Copyright Apache Labs © page 60 26 February 2019...
Page 61: Assign Static Ip Address Using Hpsdrbootloader
5 – Click on Write IP to update the IP address in the radio. To revert back to using DHCP or APIPA enter 0.0.0.0 in the IP Address fields and click on Write IP. Copyright Apache Labs © page 61...
