2.3.5 Editing the Front Panel control Assignments
The functions for each encoder and pushbutton (with the exception of the Power button) can all be
changed by the user. Also the menu bar buttons on the PC screen can be changed. See section 7.3
for details of how to do this.
2.3.6 Front Panel Connections
CW Key 3.5mm stereo jack socket. Connect a CW (morse) key: this may be a "straight" key
or iambic keyer. Do not use a mono jack plug: TX mode will be continuously
asserted!
Phone Connect stereo headphones. This is a standard 3.5mm stereo jack socket. The
internal speakers will be muted when connected.
MIC Connect a microphone with 8 pin RJ45 connections.
USB A USB socket from the internal PC; useful to connect memory sticks etc.

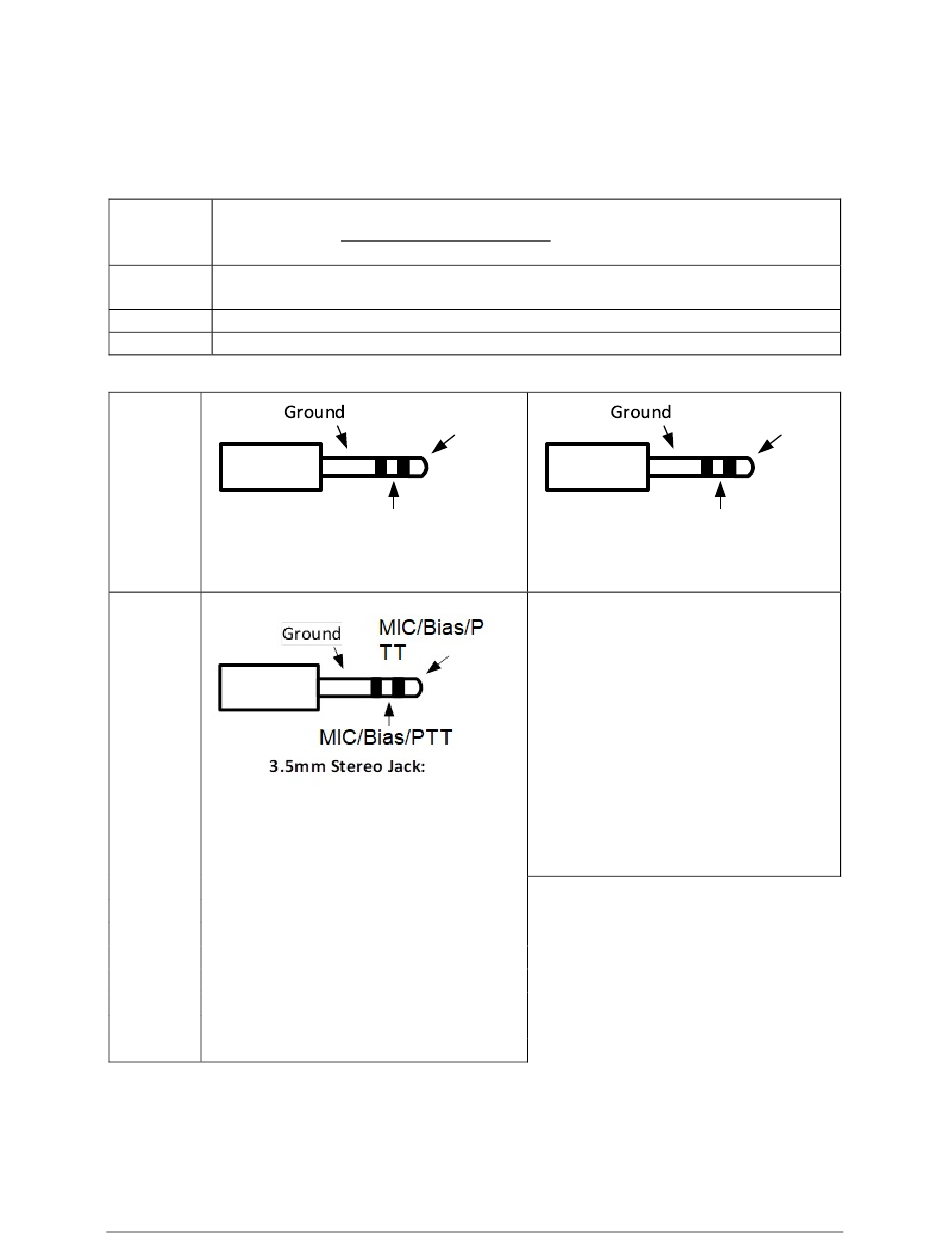

CW Key
3.5mm Stereo Jack:
Paddle Connections
Mic
Both the TIP and Ring can be configured
via Thetis for Mic/Bias PTT.
ANDROMEDA Manual
Tip = Dit
Ring = Dah Ring = no connect
3.5mm Stereo Jack:
Straight Key Connections
Please Note the i5/i7 Version without
the Andromeda Front panel uses
6.25mm Audio Barrel Connectors
Tip = Key
