Indicator number Displays all the possible indicator numbers (1‐20).
To select settings for a particular indicator: Use the mouse to click in the
number for that pushbutton
Indicator Shows: Displays the indication that has been assigned to this indicator.
To change the indication: click in the cell, twice. A combo box control will
appear. Click its down arrow to show a list of the options that can be assigned.
Click an option to select it.
Selected RX This setting allows the indicator to be assigned to a specific receiver. This
control is also a combo box and is used in the same way.


MULTI
ANDROMEDA HPSDR
DRIVE
POWER
SDR ON
LED:1
RX2 AF/RF
MOX
LED:2
LED:3
MUTE
TUNE
LED:5
RX1 AF/RF
PS ON
TWO TONE
MUTE
CW KEY PHONE
MIC
USB
F1

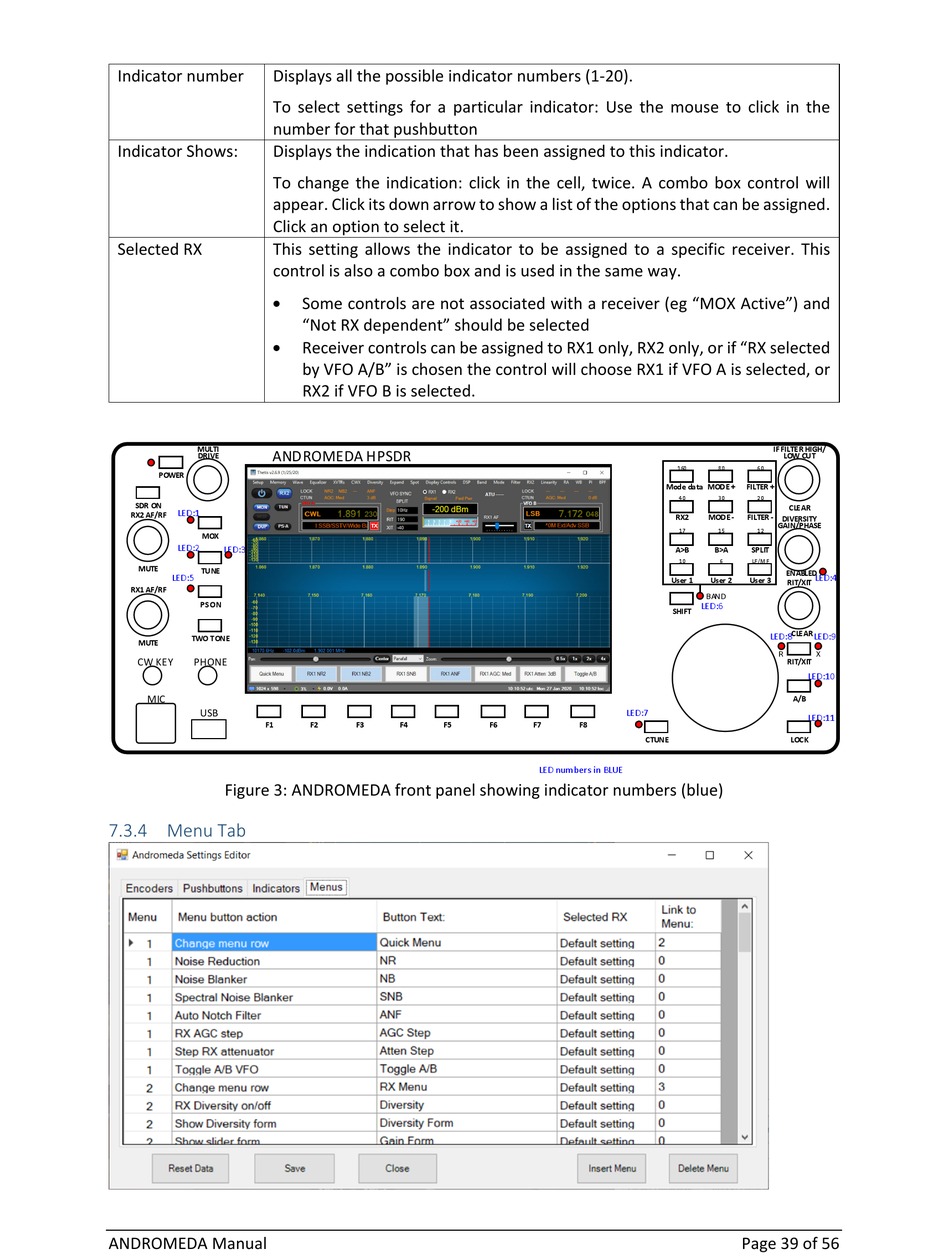

Figure 3: ANDROMEDA front panel showing indicator numbers (blue)
7.3.4 Menu Tab
ANDROMEDA Manual
Some controls are not associated with a receiver (eg "MOX Active") and
"Not RX dependent" should be selected
Receiver controls can be assigned to RX1 only, RX2 only, or if "RX selected
by VFO A/B" is chosen the control will choose RX1 if VFO A is selected, or
RX2 if VFO B is selected.
F2 F3 F4 F5
Mode data
LED:7
F6 F7 F8
CTUNE
LED numbers in BLUE
IF FILTER HIGH/
LOW CUT
1 60 80 60
MODE + FILTER +
40 30 20
CLEAR
RX2 MODE ‐ FILTER ‐
DIVERSITY
GAIN/PHASE
17 15 12
A>B B>A SPLIT
10 6 LF/M F
ENABLED
LED:4
User 1 User 2 User 3
RIT/XIT
BAND
LED:6
SHIFT
CLEAR
LED:8 LED:9
R X
RIT/XIT
LED:10
A/B
LED:11
LOCK
