Part 2: ZYNQ Chip

The AX7350 FPGA development board uses Xilinx's Zynq7000 series chip,

model XC7Z035-2FFG676. The chip's PS system integrates two ARM

CortexTM-A9 processors, AMBA® interconnects, internal memory, external

memory interfaces and peripherals. These peripherals mainly include USB bus

interface, Ethernet interface, SD/SDIO interface, I2C bus interface, CAN bus

interface, UART interface, GPIO etc. The PS can operate independently and

start up at power up or reset. Figure 2-1 detailed the Overall Block Diagram of

the ZYNQ7000 Chip.

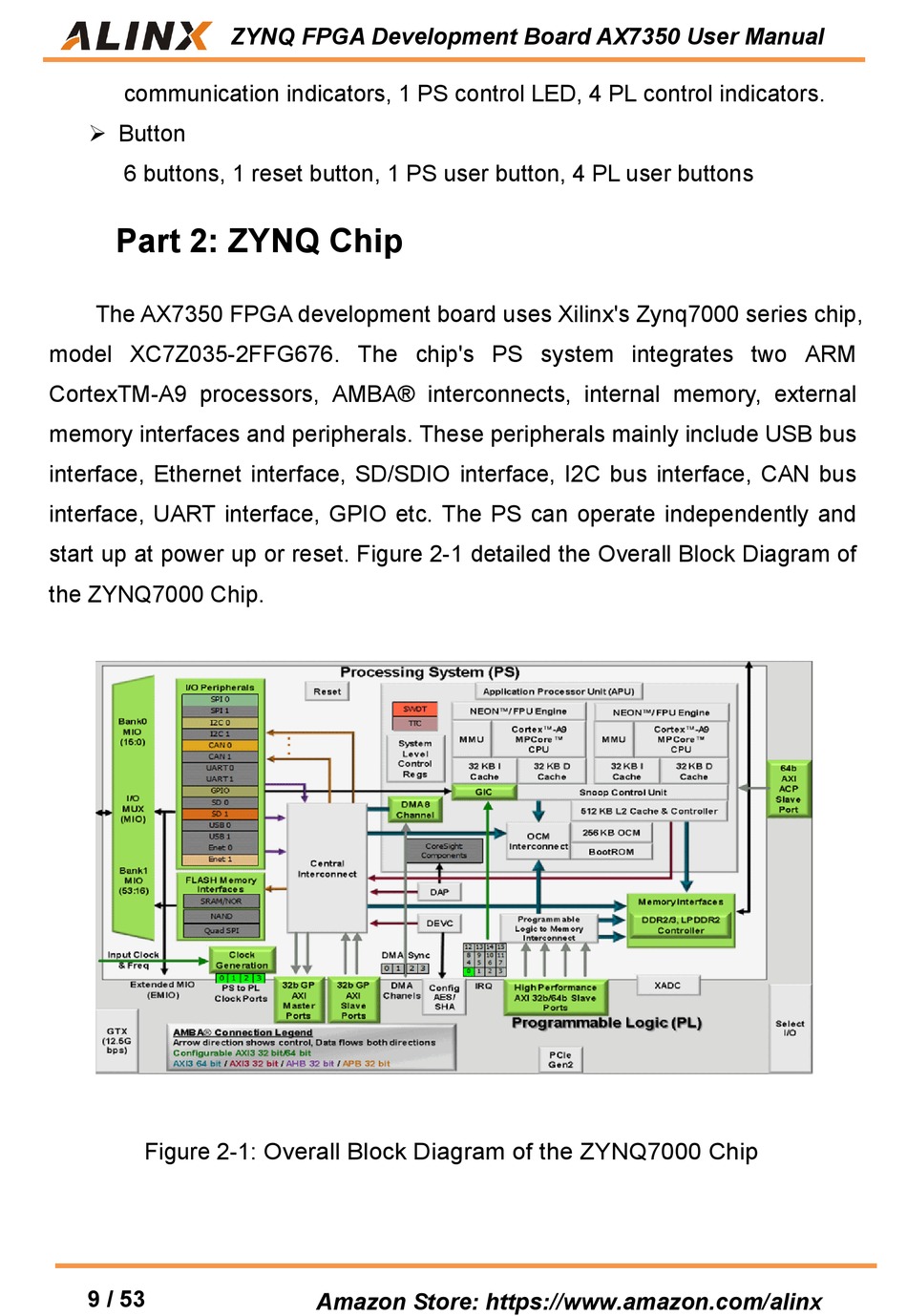

Figure 2-1: Overall Block Diagram of the ZYNQ7000 Chip
