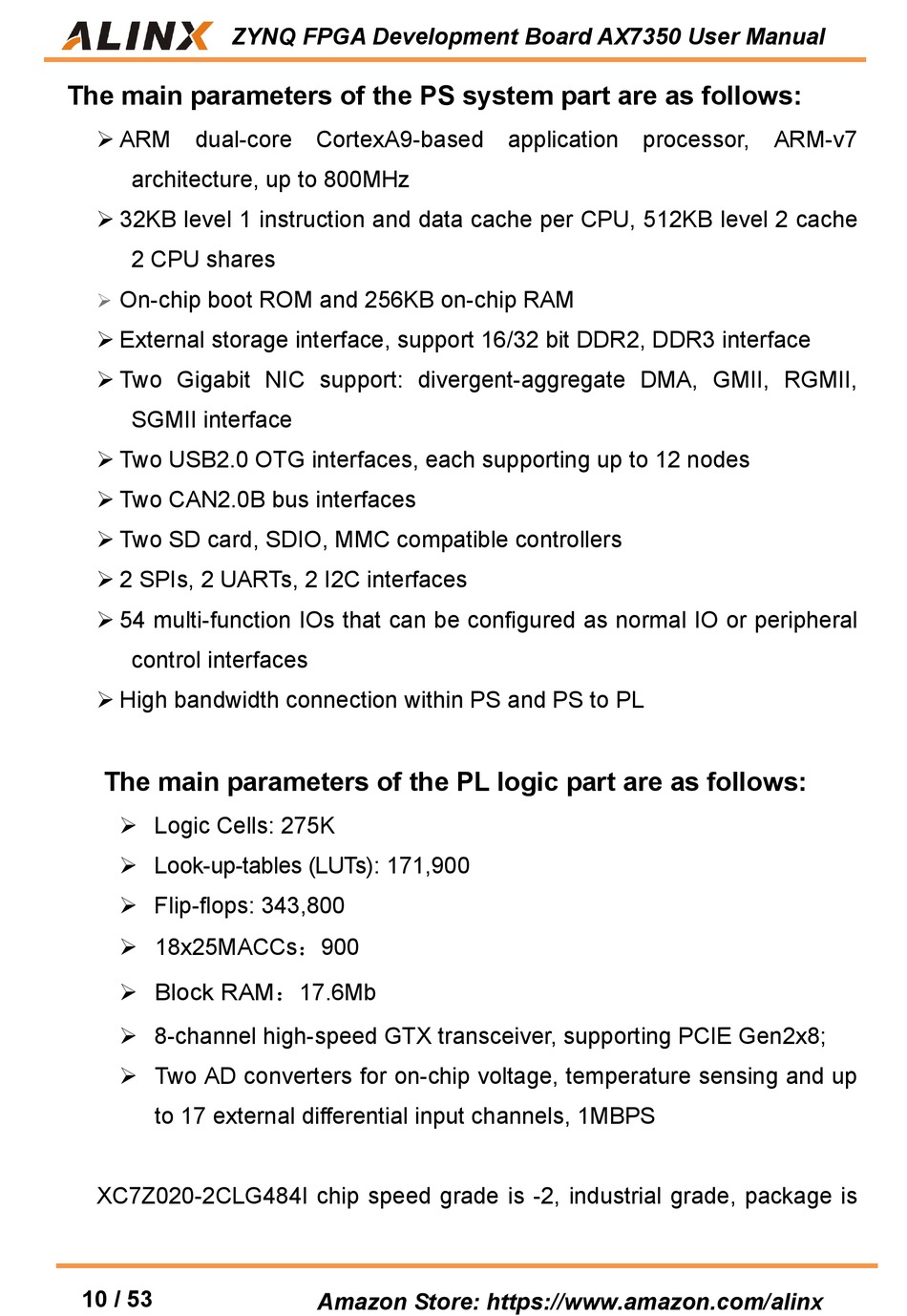

The main parameters of the PS system part are as follows:
 ARM dual-core CortexA9-based application processor, ARM-v7
architecture, up to 800MHz
 32KB level 1 instruction and data cache per CPU, 512KB level 2 cache
2 CPU shares
On-chip boot ROM and 256KB on-chip RAM

 External storage interface, support 16/32 bit DDR2, DDR3 interface
 Two Gigabit NIC support: divergent-aggregate DMA, GMII, RGMII,
SGMII interface
 Two USB2.0 OTG interfaces, each supporting up to 12 nodes
 Two CAN2.0B bus interfaces
 Two SD card, SDIO, MMC compatible controllers
 2 SPIs, 2 UARTs, 2 I2C interfaces
 54 multi-function IOs that can be configured as normal IO or peripheral
control interfaces
 High bandwidth connection within PS and PS to PL
The main parameters of the PL logic part are as follows:
 Logic Cells: 275K
 Look-up-tables (LUTs): 171,900
 Flip-flops: 343,800
 18x25MACCs：900
 Block RAM：17.6Mb
 8-channel high-speed GTX transceiver, supporting PCIE Gen2x8;
 Two AD converters for on-chip voltage, temperature sensing and up
to 17 external differential input channels, 1MBPS
XC7Z020-2CLG484I chip speed grade is -2, industrial grade, package is
10 / 53
