- Page 1 User Manual PPC-310/312/315/321W 10.4"/12.1"/15"/21.5" Fanless Panel PC ® ® with Intel Celeron J6412 Processor...
- Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
- Page 3 (ESD) or electromagnetic interference (EMI) leakage, we strongly recommend using CE-compliant industrial enclosure products. Technical Support and Assistance Visit the Advantech website at http://support.advantech.com to obtain the latest product information. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before calling: –...
- Page 4 Assurez-vous que la tension de la source d’alimentation est correcte avant de connecter l’appareil à une prise de courant. La prise de courant doit avoir une bonne connexion mise à la terre. Position the power cord away from high-traffic areas. Do not place anything over the power cord.
- Page 5 AVERTISSEMENT: Ces instructions sont fournies conformément aux normes IEC 704-1. Advantech decline toute responsabilité quant à la précision de toute déclaration contenue dans le présent document. Do not expose the equipment to direct sunlight, or install the equipment in an environment with direct sunlight, as this may cause damage.
- Page 6 Manual Conventions Warning! Warnings indicate conditions that, if not observed, can cause personal injury! Caution! Cautions are included to prevent hardware damage and data loss. For example, “Batteries are at risk of exploding if replaced with an incor- rect type. Replace only with the same or equivalent type recommended by the manufacturer.
-
Page 7: Table Of Contents
Contents Chapter General Information ......1 Introduction ....................2 Key Features..................... 2 Front Panel....................2 Figure 1.1 Front Panel ..............2 Rear Panel ....................3 Figure 1.2 Rear Panel..............3 Panel Bottoms................... 3 Figure 1.3 Panel PC Bottom ............3 Dimensions ....................4 Figure 1.4 PPC-310 EHL Dimensions ......... - Page 8 Figure 2.24 Fasten the Hook Bracket ........23 Figure 2.25 Panel Mount Rear View.......... 23 2.3.3 Arm Mounting ................23 Figure 2.26 Arm Mount for the Panel PC........24 2.3.4 Stand Mount ................24 Figure 2.27 VESA Mount Screw Holes........25 Figure 2.28 Securing the VESA Mount Base......
-
Page 9: Chapter 1 General Information
Chapter General Information This chapter details general infor- mation regarding PPC-310/312/ 315/321W EHL. Introduction Specifications Dimensions... -
Page 10: Introduction

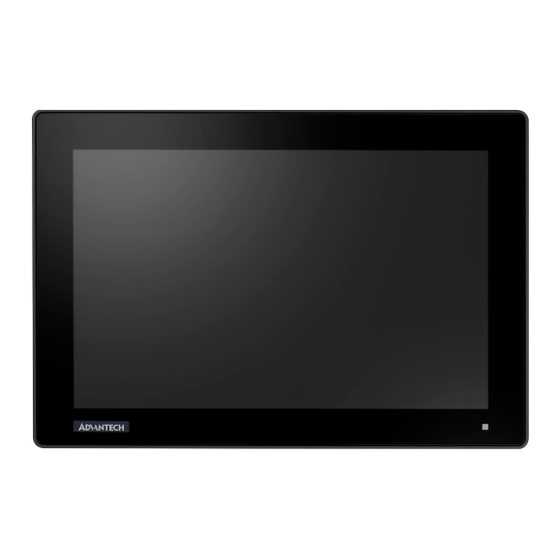

Introduction Advantech's PPC-310/312/315/321W EHL is an all-in-one light panel PC with a wide ® ® format 10.4"/12.1"/15"/21.5" TFT LCD screen. It is powered by an Intel Celeron J6412 processor, PPC-310/312/315/321W EHL to provide high performance, optimal memory, graphics, and peripheral I/O support in a compact, fanless, embedded sys- tem. -
Page 11: Rear Panel
Rear Panel The PPC-310/312/315/321W EHL rear panel features four VESA mount (75 x 75 mm /2.95 x 2.95 in) holes located on its bottom side, as demonstrated below: VESA mount screws: 4 x M4 screws, screw depth: 8 mm (max.) Figure 1.2 Rear Panel Panel Bottoms The system’s I/O, located on the bottom of the device, (Figures 1.3) are listed below:... -
Page 12: Dimensions
Dimensions Figure 1.4 PPC-310 EHL Dimensions Figure 1.5 PPC-312 EHL Dimensions PPC-310/312/315/321W EHLUser Manual... - Page 13 Figure 1.6 PPC-315 Dimensions Figure 1.7 PPC-321W Dimensions PPC-310/312/315/321W EHL User Manual...
-
Page 14: Specifications
Specifications Table 1.1: Specifications PPC-310- PPC-310- PPC-312- PPC-312- PPC-315- PPC-315- PPC-321W- RJ60A PJ60A RJ60A PJ60A RJ60A PJ60A PJ60A LCD Size 10.4" 10.4" 12.1" 12.1" 15" 15" 21.5" Display Type TFT LCD TFT LCD TFT LCD TFT LCD TFT LCD TFT LCD TFT LCD Resolution 1024 x 768... - Page 15 Storage -20 ~ 60 °C (-4 ~ 140 °F) Temperature Relative 10 ~ 95% @ 40 °C / 104 °F (non-condensing) Humidity Shock Operation at 10G peak acceleration (11 ms duration), following IEC 60068-2-27 Tolerance Vibration Operation with random vibration at 5 ~ 500 Hz, 2 Grms with SSD, in accordance with IEC 60068-2- Tolerance Safety and Safety: CB, UL, CCC, BSMI, UKCA...
-
Page 16: Ordering Information
Ordering Information Table 1.2: Ordering Information Part Number Description Image PPC-310-PJ60A PPC-310-RJ60A PPC-312-PJ60A ® ® PPC-312-RJ60A Panel PC with Intel Celeron J6412 PPC-315-PJ60A PPC-315-RJ60A PPC-321W-PJ60A 96PSA-A90W19OT-3 Power adapter 100 ~ 240 V , 90 W, 19V PPC-WLAN-D2 Wi-Fi module with antenna PPC-ARM-A03 Arm mount VESA standard PPC-174T-WL-MTE... -
Page 17: Chapter 2 System Installation And Setup
Chapter System Installation and Setup Quick System Tour Memory Card Installation HDD Installation M.2 Installation Wireless LAN Card Installation Mounting the System... -
Page 18: Quick System Tour
Quick System Tour Before setting up the panel PC, take a moment to identify the locations of the device controls, drives, connectors, and ports (as shown in Figure 2.3). When placed upright, the PPC-310/312/315/321W front panel should appear as shown in Figure 2.1. - Page 19 Figure 2.3 Panel PC Bottom with I/O A: Power button B: DC In C: 2 x USB 2.0 D: 2 x USB 3.1 E: 1 x Type-C F: 1 x HDMI 1.4 G: 2 x RJ-45 LAN H: COM2 (RS-232/422/485) I: COM1 (RS-232) PPC-310/312/315/321W EHL User Manual...
-
Page 20: Installation Procedures
Installation Procedures When installing system hardware, adhere to the following order: Install the memory card. Install SATA HDD or M.2 storage devices. Install peripheral devices. Mount the panel PC. Configure the system. 2.2.1 Memory Card Installation Remove the 8 screws shown in the circles, then remove the rear cover. Figure 2.4 Retention Screws on the Rear Cover Insert the memory card into the corresponding slot on the main board, then place the thermal pad provided in the accessory box on top of the memory card... -
Page 21: Sdd Installation
2.2.2 SDD Installation Remove the screws on the rear cover and remove the rear cover. Gather the components of the SSD bracket module (requires ordering the HDD bracket module 98R3P300020). Figure 2.6 HDD Module Bracket Connect the SATA cable provided in the accessory box to the SATA HDD mod- ule. -
Page 22: Installation
Affix the SATA HDD bracket to the main board. Tie the SATA power cable in place and then plug the cable into the corresponding connector on the mother- board. Caution: Don’t allow the rear cover to put pressure on the SSD cable. Figure 2.9 SATA HDD Connected to the Mainboard 2.2.3 M.2 Installation... - Page 23 Remove the thermal pad from the accessory box, and apply it to the M.2 card. Figure 2.11 Apply the Thermal Pad to the M.2 2.2.3.2 M.2 2242 Card Installation First, take out a pillar from the accessory box and install it on the motherboard as shown in the figure below.
- Page 24 Install the M.2 2242 card on the motherboard with a screw. Figure 2.13 Install the M.2 2242 Card on the Motherboard Take out the thermal pad from the accessory box, and affix it to the M.2 card. Note: An M.2 2280 thermal pad cut in half can be used as an M.2 2242 thermal pad. Figure 2.14 Apply the Thermal Pad on the M.2 2242 Card PPC-310/312/315/321W EHL User Manual...
-
Page 25: Install The Wi-Fi Module
2.2.4 Install the Wi-Fi Module Remove the rear cover. Assemble the antenna bracket on the antenna cable. Figure 2.15 Assemble the Bracket with the Antenna Cable Assemble the Wi-Fi card and the thermal pad. Figure 2.16 Assemble the Wi-Fi Card and Thermal Pad PPC-310/312/315/321W EHL User Manual... -
Page 26: System Power On
Assemble the rear cover, and install the antenna. Figure 2.17 Assemble the Wi-Fi Antenna 2.2.5 System Power on A 2-pin power connector is included in the accessory box. Connect the power con- nector to 12-30V power lines and plug the power cables into the system power receptor. -
Page 27: Mounting The System
Mounting the System Warning! When mounting the panel PC, more than one person should perform the installation to prevent accidental damage to the panel or personal injury. Le comité constate qu’el-nasr mounting, Plus d’une personne installa- tion to prevent the cadre accidental damage to the personal injury. The panel PC supports various mounting options, as listed below: Wall mounting ... - Page 28 Insert four M4 screws into the holes on the panel PC and tighten them to secure the bracket to the rear panel. Figure 2.19 Rear Panel Screw Locations Warning! Ensure that the thread depth of the screws on the rear panel does not exceed 4 mm (0.15 in).
-
Page 29: Panel Mounting
Figure 2.20 Mounting the Panel PC on a Wall Secure the panel PC in place by tightening the screws into the wall mount bracket. Figure 2.21 Securing the Panel PC 2.3.2 Panel Mounting To mount the flat bezel panel PC onto a panel, follow the steps below. Prepare a panel cutout according to the Panel PC dimensions. - Page 30 Figure 2.22 Hook Brackets for Panel Mounting Insert the hook brackets into the holes following the direction of the arrows shown in Figure 2.25 and hang the panel PC. Figure 2.23 Locations of Hook Brackets Tighten the screws to secure the panel PC in place (Figure 2.26). PPC-310/312/315/321W EHL User Manual...
-
Page 31: Arm Mounting
Figure 2.24 Fasten the Hook Bracket Figure 2.25 Panel Mount Rear View (Take the PPC-321W drawing as example.) 2.3.3 Arm Mounting PPC-310/312/315/321W can be mounted on a VESA-compliant arm mount with a 100 mm (3.93 in) interface pad. To affix the panel PC to an arm mount, follow the steps below. -
Page 32: Stand Mount
Figure 2.26 Arm Mount for the Panel PC Warning! Ensure that the thread depth of the screws on the rear panel does not exceed 4 mm (0.15 in). 2.3.4 Stand Mount Before assembling the stand mount, check that the product was shipped with the fol- lowing items: To mount the panel PC onto the stand, follow the steps below: Use four M4 x 8L screws to affix the VESA bracket to the panel PC. - Page 33 Figure 2.27 VESA Mount Screw Holes Use the four M4 x 8L screws to secure the base plate to the mount stand. Figure 2.28 Securing the VESA Mount Base Use four M4 x 6L screws to secure the mount stand to the VESA mount bracket. PPC-310/312/315/321W EHL User Manual...
- Page 34 Figure 2.29 Securing the VESA Mount Bracket Use one M4 x 5L screw to secure the stand mount hinge cover. Figure 2.30 Securing the Stand Mount Hinge Cover PPC-310/312/315/321W EHL User Manual...
-
Page 35: Cabinet Installation And Grounding
Figure 2.31 Completed Stand Mount 2.3.5 Cabinet Installation and Grounding Follow these instructions to install the PPC system, and pay attention to the ground pin, which should be connected to the earth/ground. The PPC system should give the best performance for optimal EMI immunity, ESD immunity, surge immunity, and sys- tem isolation. - Page 36 Step B: Embed the null PPC system into the cabinet without any I/O or power cables. System wiring. Figure 2.33 System Wiring Cabinet Step A: Connect the cabinet to the earth/ground. Step B: Ensure that all cabinets have been grounded together. Step C: Connect the ground of the power supply to the cabinet.
-
Page 37: Jumper Settings
Chapter Jumper Settings Jumpers and Connectors External COM Ports and Pin Definitions... -
Page 38: Motherboard Jumpers And Connectors
Motherboard Jumpers and Connectors The motherboard connectors are shown below (Figure 3.1). The internal peripheral connectors are accessible when the motherboard is outside of the chassis. Figure 3.1 Motherboard The internal jumpers and connectors on the motherboard and their pinouts are listed in the table below. -
Page 39: Com1 Pin 9 Power Select
3.1.1 COM1 Pin 9 Power Select Table 3.2: COM1 Pin 9 Power Selection Function 1-2pin COM1 RI (Default*) 2-3pin COM1 Pin9 5V 4-5pin COM1 Pin9 12V 3.1.2 RTC Selection Table 3.3: RTC Selection JCMOS1 Function 1-2pin CLR RTC Register 2-3pin Normal (Default*) 3-4pin Clear CMOS... -
Page 40: Touch Power Selection
3.1.4 Touch Power Selection Table 3.5: Touch Power Selection Function Open Closed Note: The resistive touch model needs a JP3 jumper added. The projected capacitive touch model should have the JP3 jumper removed. PPC-310/312/315/321W EHL User Manual... -
Page 41: External Com Ports And Pin Definitions
External COM Ports and Pin Definitions Figure 3.2 Location of COM1 and COM2 Ports COM1: RS-232 COM1 Pin 9 is set as “RI” by default. This setting can be changed to 5V or 12V output using a jumper. COM2: RS-232/422/485 Note! COM2 does not support a ring function. - Page 42 PPC-310/312/315/321W EHL User Manual...
-
Page 43: Software Setup
Chapter Software Setup Driver Installation BIOS Setup Program... -
Page 44: Driver Installation
Driver Installation Before installing software on the panel PC, install the corresponding drivers to ensure full functionality. All drivers can be downloaded from the Advantech website: http://www.advantech.com BIOS Setup Utility 4.2.1 Main Setup You can enter the BIOS setup utility by pressing "Delete" while the computer is boot- ing. -
Page 45: Advanced Bios Features Setup
4.2.2 Advanced BIOS Features Setup Following is the COM2 Mode Selection (RS232/RS422/RS485): Select NCT6126D Super IO Configuration from the Advanced tab. Select the Serial Port 2 Configuration option. PPC-310/312/315/321W EHL User Manual... - Page 46 Select the Serial Port 2 Mode option to set the COM2 operation mode as RS232, RS422, or RS485. If COM2 mode is set as RS485, the RS485 Auto Flow control option can be Enabled or Disabled. PPC-310/312/315/321W EHL User Manual...
-
Page 47: Chipset Configuration
4.2.3 Chipset Configuration The following is Wake-on-LAN: Select the PCH-IO Configuration option from the Chipset tab. Set the PCIE Wake option to Enabled. PPC-310/312/315/321W EHL User Manual... -
Page 48: Security
4.2.4 Security Set Administrator Password PPC-310/312/315/321W EHL User Manual... -
Page 49: Boot
4.2.5 Boot Setup Prompt Timeout This item allows users to set the number of seconds to wait for the setup activa- tion key. 65535 (oxFFFF) means indefinite waiting. Bootup NumLock State This item allows users to select the keyboard NumLock state. Quiet Boot ... -
Page 50: Save & Exit
4.2.6 Save & Exit Save Changes and Exit This item allows users to exit the system setup after saving changes. Discard Changes and Exit This item allows users to exit the system setup without saving changes. Save Changes and Reset ... -
Page 51: Bsmi Rohs
Appendix BSMI RoHS... -
Page 52: Bsmi Rohs
Note 3. “-” indicates that the restricted substance corresponds to the exemption. 製造商：研華股份有限公司 地址：台北市內湖區瑞光路 26 巷 20 弄 1 號 電話：02-27927818 Manufacturer: ADVANTECH Co., Ltd. Address: No. 1 Alley 20 Lane 26, Ruiguang Rd., Neihu District, Taipei City Telephone: 02-27927818 PPC-310/312/315/321W EHL User Manual... -
Page 53: Appendix Bbsmi Series Models
Appendix BSMI Series Models... - Page 54 PPC-310 產品附錄型號 PPC-310-PJ60A PPC-310-RJ60A PPC-310-PJ60AU PPC-310-RJ60AU PPC-310-PJ60B PPC-310-RJ60B PPC-310-PJ60C PPC-310-RJ60C PPC310PJ2201-T PPC310PJ2202-T PPC310PJ2203-T PPC310PJ2301-T PPC310PJ2302-T PPC310PJ2303-T PPC310PJ2304-T PPC310PJ2305-T PPC310PJ2306-T PPC310PJ2401-T PPC310PJ2402-T PPC310PJ2403-T PPC310PJ2404-T PPC310PJ2405-T PPC310PJ2406-T PPC310PJ2501-T PPC310PJ2502-T PPC310PJ2503-T PPC310PJ2504-T PPC310PJ2505-T PPC310PJ2506-T PPC310PJ2601-T PPC310PJ2602-T PPC310PJ2603-T PPC310PJ2604-T PPC310PJ2605-T PPC310PJ2606-T PPC310PJ2701-T PPC310PJ2702-T PPC310PJ2703-T PPC310PJ2704-T PPC310PJ2705-T PPC310PJ2706-T...
- Page 55 PPC312PJ2702-T PPC312PJ2703-T PPC312PJ2704-T PPC312PJ2705-T PPC312PJ2706-T PPC312PJ2801-T PPC312PJ2802-T PPC312PJ2803-T PPC312PJ2804-T PPC312PJ2805-T PPC312PJ2806-T PPC312RJ2201-T PPC312RJ2202-T PPC312RJ2203-T PPC312RJ2301-T PPC312RJ2302-T PPC312RJ2303-T PPC312RJ2304-T PPC312RJ2305-T PPC312RJ2306-T PPC312RJ2401-T PPC312RJ2402-T PPC312RJ2403-T PPC312RJ2404-T PPC312RJ2405-T PPC312RJ2406-T PPC312RJ2501-T PPC312RJ2502-T PPC312RJ2503-T PPC312RJ2504-T PPC312RJ2505-T PPC312RJ2506-T PPC312RJ2601-T PPC312RJ2602-T PPC312RJ2603-T PPC312RJ2604-T PPC312RJ2605-T PPC312RJ2606-T PPC312RJ2701-T PPC312RJ2702-T PPC312RJ2703-T PPC312RJ2704-T PPC312RJ2705-T...
- Page 56 PPC315RJ2702-T PPC315RJ2703-T PPC315RJ2704-T PPC315RJ2705-T PPC315RJ2706-T PPC315RJ2801-T PPC315RJ2802-T PPC315RJ2803-T PPC315RJ2804-T PPC315RJ2805-T PPC315RJ2806-T PPC-321W 產品附錄型號 PPC-321W-PJ60A PPC-321W-PJ60AU PPC-321W-PJ60B PPC-321W-PJ60C PPC321WPJ2201-T PPC321WPJ2202-T PPC321WPJ2203-T PPC321WPJ2301-T PC321WPJ2302-T PPC321WPJ2303-T PPC321WPJ2304-T PPC321WPJ2305-T PPC321WPJ2306-T PPC321WPJ2401-T PPC321WPJ2402-T PPC321WPJ2403-T PPC321WPJ2404-T PPC321WPJ2405-T PPC321WPJ2406-T PPC321WPJ2501-T PPC321WPJ2502-T PPC321WPJ2503-T PPC321WPJ2504-T PPC321WPJ2505-T PPC321WPJ2506-T PPC321WPJ2601-T PPC321WPJ2602-T PPC321WPJ2603-T PPC321WPJ2604-T PPC321WPJ2605-T...
- Page 57 PPC-310/312/315/321W EHL User Manual...
- Page 58 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2023...
