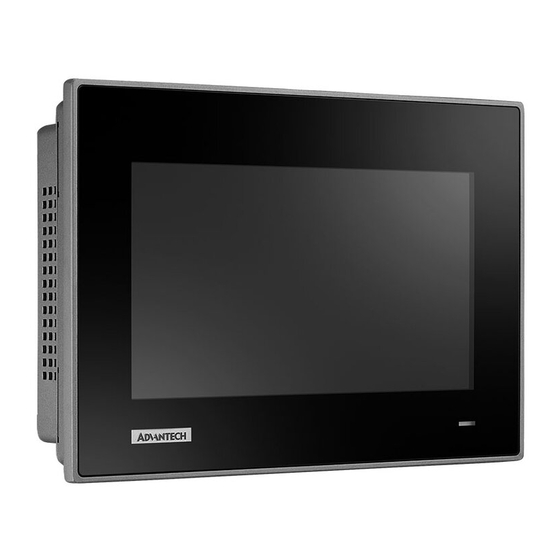

7" touch panel computer
Hide thumbs Also See for TPC-307W:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
TPC-307W
7" Touch Panel Computer
製造商: 研華股份有限公司
地址:
台北市內湖區陽光街365巷33號
電話:
02-27927818

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPC-307W and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech TPC-307W

Summary of Contents for Advantech TPC-307W

  • Page 1 User Manual TPC-307W 7" Touch Panel Computer 製造商: 研華股份有限公司 地址: 台北市內湖區陽光街365巷33號 電話: 02-27927818...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 3 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 4 此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻干擾，在此種 情況下，使用者會被要求採取某些適當的對策。 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...
  • Page 5 This product is intended to be supplied by a UL listed (Certificate) power supply with a mating connector, output rated 24Vdc, 2.5A, Tma 60 degree C minimum and altitude 2000m. If need further assistance, please contact manufacture or UL File owner or brand owner for additional information. 0. TPC-307W User Manual...
  • Page 6 Don't touch any components on the CPU card or other cards while the PC is on. Disconnect power before making any configuration changes. The sudden rush  of power as you connect a jumper or install a card may damage sensitive elec- tronic components. TPC-307W User Manual...

  • Page 7: Table Of Contents

    BIOS Setup ..................... 14 Entering Setup ..................14 3.2.1 Main Setup.................. 15 3.2.2 Advanced BIOS Features Setup..........16 3.2.3 Chipset Configuration ..............25 3.2.4 Security ..................27 3.2.5 Boot..................... 27 3.2.6 Save & Exit ................. 28 Appendix A Connectors.........29 TPC-307W User Manual...
  • Page 8 Table A.8: Internal COM Port Connector (COM1) ..... 33 A.3.6 COM2 RS-232/422/485 Connector (COM2)....... 34 Table A.9: COM2 RS-232/422/485 Connector (COM2) .... 34 A.3.7 Power Input Connector (DCIN1)..........34 Table A.10:Power Input Connector (DCIN1) ......34 TPC-307W User Manual viii...

  • Page 9: Chapter 1 General Information

    Chapter General Information...

  • Page 10: Introduction

    Introduction The TPC-307W Elkhart Lake series touch panel computer is a human machine inter- face (HMI) equipped with an Intel Atom X6211E dual core processor. The key features are as follows: Industrial-grade 7" WSVGA TFT LCD with 50K lifetime and LED backlight ...

  • Page 11: Lcd Panel

    Power Consumption: 19.2 W (typical)  1.2.9 External I/O The arrangement of I/O ports is shown below. A. Power receptor E. RS-232/422/485 (COM 2) B. USB 3.0 F. LAN (10/100/1000) C. USB 2.0 G. Line Out D. RS-232 (COM 1) TPC-307W User Manual...

  • Page 12: Dimensions And Cutout

    Dimensions and Cutout Dimensions (W x H x D): 205 x 146.92 x 55.7mm (8.07 x 5.78 x 2.20 inch)  Figure 1.1 Dimensions Cutout Dimensions: 192 x 138.5 mm (7.56 x 5.45 inch)  Figure 1.2 Cutout Dimensions TPC-307W User Manual...

  • Page 13: Chapter 2 System Setup

    Chapter System Setup...

  • Page 14: Transport And Unpacking

    12 hours must be allowed to make sure the TPC is completely dry before the TPC is switched on. 2.1.2 Unpacking and Setup Follow these steps to set up the TPC-307W device: Unbox the TPC-307W device. Adjust the power mode if necessary (default: AT mode), refer to Section 2.5 for details.
  • Page 15 300 10 B, C 2(105), 4* Figure 2.2 Power Connector Power on the system. The power LED turns to blue. LED Indicator: Off - "dark" ON - "blue" Standby - "orange" Figure 2.3 Power LED Calibrate the touchscreen. TPC-307W User Manual...

  • Page 16: Panel Mount

    Panel Mount Before installing the TPC-307W panel computer into the panel opening, ensure that the adhesive waterproof gasket on the front bezel is correctly positioned. Install the TPC into the panel opening, ensuring adequate air circulation with a required clearance on all sides. Refer to the diagram for the minimum clearance (100mm), air inlet and outlet directions (blue arrows), and a suggested mounting panel thickness of less than 6mm (0.236").

  • Page 17: Vesa Mount

    Figure 2.6 Panel Mounting - Clamp Fixing VESA Mount The rear cover of the TPC-307W includes four VESA mounting (75 x 75 mm) holes. Install the VESA mounting kit using 4 M4x10L screws. Ensure proper mounting equipment is used to prevent the risk of injury.

  • Page 18: Cabinet Installation And Earth Grounding Setup

    Cabinet Installation and Earth Grounding Setup Follow these steps to set up the TPC-307W system, ensuring that the Ground pin of the TPC-307W system is properly connected to the earth ground. This connection is crucial for optimizing the performance of the TPC-307W system, including enhanced EMI immunity, ESD immunity, surge immunity, and system isolation.

  • Page 19: System Configuration

    System configuration The TPC-307W is a compact touch panel featuring IIoT functions designed for indus- trial applications. While the initial system setup is performed by the dealer or system integrator before delivery, users may require access to adjust configurations such as interfaces or boot modes.

  • Page 20: At/Atx Jumper Setting (Pson1)

    2.5.2 AT/ATX Jumper Setting (PSON1) This jumper on the TPC-307W motherboard, as indicated below, allows for the adjustment of the power mode. Table 2.1: AT/ATX Function Description This jumper is used to select Power ON mode Default (1-2) (2-3) (1-2)

  • Page 21: Chapter 3 Bios Setup

    Chapter BIOS Setup...

  • Page 22: Bios Setup

    BIOS supports your CPU. If there is no number assigned to the patch code, contact an Advantech application engineer to obtain an up-to-date patch code file. This will ensure that the CPU status is valid. After ensuring that you have a number assigned to the patch code, press <DEL>...

  • Page 23: Main Setup

    System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time must be entered in HH:MM:SS format. TPC-307W User Manual...

  • Page 24: Advanced Bios Features Setup

    3.2.2 Advanced BIOS Features Setup Select the Advanced tab from the TPC-307W setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as ACPI Settings and hit <enter> to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>...
  • Page 25 To turn on/off prefetching of adjacent cache lines Intel (VMX) Virtualization Technology  When enabled, a VMX can utilize the additional hardware capabilities provided by Vanderpool Technology Active Processor Cores  Number of cores to enable in each processor package TPC-307W User Manual...
  • Page 26 This item allows more than two frequency ranges to be supported. Intel(R) Speed Shift Technology  This item allows users to enable/disable Intel® Speed Shift Technology support. Enabling it will expose the CPPC v2 interface to allow for hardware controlled P- states. TPC-307W User Manual...
  • Page 27 CPU to go to C states when not 100% utilized. 3.2.2.3 PCH-FW Configuration ME State  When this item is disabled, ME will be put into ME Temporarily Disabled Mode. Firmware Update Configuration  This item allows users to configure the management engine technology param- eters. TPC-307W User Manual...
  • Page 28 TPM 1.2: select this to restrict support to TPM 1.2 devices. TPM 2.0: select this to restrict support to TPM 2.0 devices Auto: select this to support both; TPM 2.0 devices by default; if not found, TPM 1.2 devices will be enumerated TPC-307W User Manual...
  • Page 29 This item allows users to enable or disable System ability to hibernate (OS/S4 sleep State). This option may be not effective with some OS. ACPI Sleep State  This item allows users to select the ACPI sleep state. The system will enter when the SUSPEND button is pressed. TPC-307W User Manual...
  • Page 30 3.2.2.6 NCT61260 Super I/O Configuration Serial Port 1 Configuration  Set Parameters of Serial Port 1 (COMA). Serial Port 2 Configuration  Set Parameters of Serial Port 2 (COMB). 3.2.2.7 NCT61260 Hardware Monitor TPC-307W User Manual...
  • Page 31 This item allows users to Set the maximum time the device will take before reporting itself to the Host Controller. The Auto option uses the default value, which is 100 ms for a Root port. For a Hub port, the delay time is obtained from the Hub descriptor. TPC-307W User Manual...
  • Page 32 3.2.2.9 Network Stack Configuration Network Stack  This item allows users to enable or disable the UEFI network stack. 3.2.2.10 NVMe Configuration TPC-307W User Manual...

  • Page 33: Chipset Configuration

    System Agent (SA) Configuration Memory Configuration  This item allows users to view the memory parameters. Graphics Configuration  This item allows users to set graphics configuration parameters VT-d  This item allows users to enable or disable VT-d capability TPC-307W User Manual...
  • Page 34 This item allows users to enable or disable the PCIe device to wake up the sys- tem from S3/S4/S5 state. ErP Function  When this option is disabled, the wake on function can be selected. PinCntrl Driver GPIO Scheme  This item allows users to enable or disable PinCntrl Driver GPIO Scheme. TPC-307W User Manual...

  • Page 35: Security

    3.2.4 Security Setup Administrator Password  Set Administrator Password. Secure Boot  This item allows users to access a submenu to configure secure boot settings. 3.2.5 Boot TPC-307W User Manual...

  • Page 36: Save & Exit

    This item allows you to restore/load default values for all the options. Save as User Defaults  This item allows you to save the changes done so far as user defaults. Restore User Defaults  This item allows you to restore the user defaults to all the options. TPC-307W User Manual...

  • Page 37: Appendix A Connectors

    Appendix Connectors...

  • Page 38: Jumper And Connector Location

    Internal USB connector 2 LED2 LED indicator connector BAT1 RTC battery connector COM1 COM1 RS-232 connector COM2 COM2 RS-232/422/485 connector USB3C1 USB 3.0 connector USB2C1 USB 2.0 connector DCIN1 Power input connector LAN12 LAN RJ45 connectors AUDIO1 Audio connector TPC-307W User Manual...

  • Page 39: Jumper Settings And Descriptions

    Clear CMOS (1-2) CLR RTC Register (2-3) Normal, default (3-4) Clear CMOS A.2.2 LCD Resolution Select (SW1) Table A.3: LCD Resolution Select Description This switch is used to select LCD resolution Default 1024*600 (24-bit) PWM 1KHz (1-2-3-4) OFF-ON-ON-ON TPC-307W User Manual...

  • Page 40: Connector Pin Definition

    Table A.4: Power Button Connector (BTN1) Signal ATX_PWRBTN# A.3.2 Internal USB Connector (USB2H1 & USB2H2) Table A.5: Internal USB Connector (USB2H1 & USB2H2) Signal A.3.3 LED Indicator Connector (LED2) Table A.6: LED Indicator Connector (LED2) Signal Orange light Blue light TPC-307W User Manual...

  • Page 41: Rtc Battery Connector (Bat1)

    A.3.4 RTC Battery Connector (BAT1) Table A.7: RTC Battery Connector (BAT1) Signal +VBAT A.3.5 COM1 RS-232 Connector (COM1) Table A.8: Internal COM Port Connector (COM1) Signal DCD# DTR# RTS# CTS# TPC-307W User Manual...

  • Page 42: Com2 Rs-232/422/485 Connector (Com2)

    A.3.6 COM2 RS-232/422/485 Connector (COM2) Table A.9: COM2 RS-232/422/485 Connector (COM2) RS232 RS422 RS485 Data- Data+ A.3.7 Power Input Connector (DCIN1) Table A.10: Power Input Connector (DCIN1) Signal Power In V+ Power In V- (GND) GND_EARTH TPC-307W User Manual...
  • Page 43 TPC-307W User Manual...
  • Page 44 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2023...
