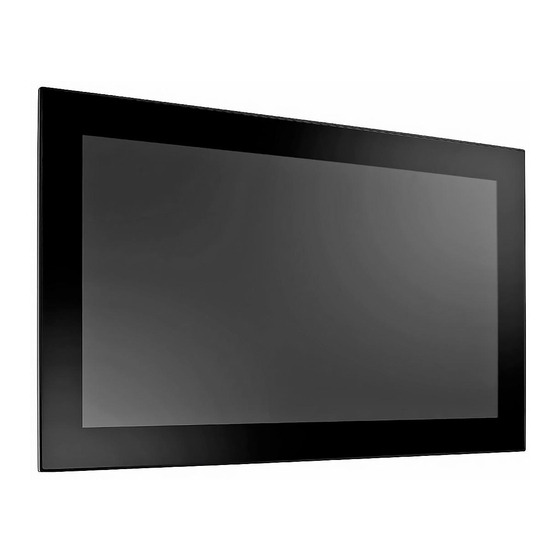

Advantech PPC-321W TGL User Manual

15.6"/18.5"/21.5"/23.8" panel pc with tft led and 11th gen intel core i processor
Hide thumbs Also See for PPC-321W TGL:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
PPC-315W/318W/321W/
324W TGL
15.6"/18.5"/21.5"/23.8" Panel PC with
®
TFT LED and 11th Gen Intel
Core™ i
Processor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-321W TGL and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech PPC-321W TGL

Summary of Contents for Advantech PPC-321W TGL

  • Page 1 User Manual PPC-315W/318W/321W/ 324W TGL 15.6"/18.5"/21.5"/23.8" Panel PC with ® TFT LED and 11th Gen Intel Core™ i Processor...
  • Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
  • Page 3 (ESD) or electromagnetic interference (EMI) leakage, we strongly recommend using CE-compliant industrial enclosure products. Technical Support and Assistance Visit the Advantech website at http://support.advantech.com to obtain the latest product information. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information at hand before calling: –...
  • Page 4 Warning: Ensure that the voltage of the power source is correct before connect- ing the equipment to a power outlet. The power outlet socket should have a grounded connection. Avertissement: Assurez-vous que la tension de la source d’alimentation est cor- recte avant de connecter l’appareil à...
  • Page 5 AVERTISSEMENT: Ces instructions sont fournies conformément aux normes IEC 704-1. Advantech decline toute responsabilité quant à la précision de toute déclaration contenue dans le présent document. Do not expose the equipment to direct sunlight, or install the equipment in an environment with direct sunlight, as this may cause damage.
  • Page 6 Manual Conventions Warning! Warnings indicate conditions that, if not observed, can cause personal injury! Caution! Cautions are included to prevent hardware damage and data loss. For example, “Batteries are at risk of exploding if replaced with an incor- rect type. Replace only with the same or equivalent type recommended by the manufacturer.

  • Page 7: Table Of Contents

    Figure 1.3 Panel PC Bottom ............3 Dimensions ....................4 Figure 1.4 PPC-315W TGL Dimensions........4 Figure 1.5 PPC-318W TGL Dimensions........4 Figure 1.6 PPC-321W TGL Dimensions........5 Figure 1.7 PPC-324W TGL Dimensions........5 Specifications .................... 5 Table 1.1: Specifications ............. 5 Ordering Information .................
  • Page 8 Figure 2.25Panel Mount Rear View..........21 2.3.3 Arm Mounting ................22 Figure 2.26Arm Mount for a Panel PC ........22 2.3.4 Stand Mounting................22 Figure 2.27VESA Mount Screw Holes........23 Figure 2.28Securing the VESA Mount Base ......24 Figure 2.29Securing the VESA Mount Bracket ......24 Figure 2.30Securing the Stand Mount Hinge Cover....

  • Page 9: Chapter 1 General Information

    Chapter General Information This chapter details general infor- mation regarding PPC-315W/ 318W/321W/324W TGL.  Introduction  Specifications  Dimensions...

  • Page 10: Introduction

    Introduction Advantech's PPC-315W/318W/321W/324W TGL is an all-in-one light panel PC with a wide format 15.6"/18.5"/21.5"/23.8" full HD LCD screen. It is powered by an 11th ® Gen Intel Core™ i processor, PPC-315W/318W/321W/324W TGL to provide high performance, optimal memory, graphics, and peripheral I/O support in a compact, fanless, embedded system.

  • Page 11: Rear Panel

    Rear Panel The PPC-315W/318W/321W/324W TGL rear panel features four VESA mount (100 x 100 mm /3.93 x 3.93 in) holes located on its bottom side, as demonstrated below: VESA mount screws: 4 x M4 screws, screw depth: 12 mm (max.) Figure 1.2 Rear Panel Panel Bottom The system’s I/O components, located on the bottom of the device, (Figures 1.3) are...

  • Page 12: Dimensions

    Dimensions Figure 1.4 PPC-315W TGL Dimensions Figure 1.5 PPC-318W TGL Dimensions PPC-315W/318W/321W/324W-TGL User Manual...

  • Page 13: Specifications

    Figure 1.6 PPC-321W TGL Dimensions Figure 1.7 PPC-324W TGL Dimensions Specifications Table 1.1: Specifications PPC-315W PPC-318W PPC-321W PPC-324W LCD Panel 15.6” 18.5” 21.5” 23.8” TFT LCD (with TFT LCD (with TFT LCD (with TFT LCD (with Display Type LED backlight)
  • Page 14 Table 1.1: Specifications Durability Greater than 35 million touches in one location without failure (Touches) Enclosure Aluminum Processor 11th gen Intel® Core™ i processor Memory 2 x SODIMM DDR4 3200, Max 32GB x 2 1 x 2.5” SATA bay; 1 x M.2 2280 bay, (Co-lay SATA, for storage only ) support Storage RAID 0,1, support NVME Network...

  • Page 15: Ordering Information

    Ordering Information Part Number Description Image PPC-315W-PB50A PPC-315W-PB30A PPC-315W-PB70A PPC-321W-PB50A PPC-321W-PB30A ® PPC-321W-PB70A Panel PC with 11th Gen Intel Core™ i PPC-318W-PB3A processor PPC-318W-PB5A PPC-318W-PB7A PPC-324W-PB3A PPC-324W-PB5A PPC-324W-PB7A Power adapter 100-240V , 150W, 96PSA-A150W19P2-4 PPC-WLAN-C1E Wi-Fi module with antenna PPC-WLAN-D2 PPC-ARM-A03 Arm mount VESA standard PPC-174T-WL-MTE...
  • Page 16 PPC-315W/318W/321W/324W-TGL User Manual...

  • Page 17: Chapter 2 System Installation And Setup

    Chapter System Installation and Setup  Quick System Tour  Memory Card Installation  HDD Installation  M.2 Installation  Wireless LAN Card Installation  Mounting the System...

  • Page 18: Quick System Tour

    Quick System Tour Before setting up the panel PC, take a moment to identify the locations of the device controls, drives, connectors, and ports (as shown in Figure 2.3). When placed upright, the PPC-315W/318W/321W/324W TGL front panel should appear as shown in Figure 2.1.

  • Page 19: Installation Procedures

    Figure 2.3 Panel PC Bottom with I/O A. COM2: RS-232/422/485 B. 1 X Line-out C. 2 x LAN D. 1 X HDMI E. 1 x USB 3.2 / 1 x USB 2.0 F. 2 x USB 3.2 G. 1 x Type-C H.
  • Page 20 Install the memory. a. If installing 2 pieces of memory, use a thermal pad thickness of 1.5 mm. The bottom, middle, and top thermal pad thickness is 1.0 mm. Remember to remove the protective film before using the thermal pad. Figure 2.5 Memory Card Installation b.

  • Page 21: Install The Ssd

    2.2.2 Install the SSD Remove the screw from the rear cover. Remove the 4 screws on the HDD bracket. Figure 2.7 Retention Screws on the HDD Bracket Take out the screws and cable from the accessory box. Figure 2.8 HDD Module Bracket Insert the cable into the SSD.

  • Page 22: Install M.2 Devices

    Assemble the SSD on the bracket. Figure 2.10 Secure the SATA HDD with Screws Install the SSD kit in the machine. Figure 2.11 SATA HDD Connected to the Motherboard 2.2.3 Install M.2 Devices Remove the rear cover. Install the M.2 on the motherboard as shown. Figure 2.12 M.2 Installation PPC-315W/318W/321W/324W-TGL User Manual...

  • Page 23: Install The Wi-Fi Module

    Take out the thermal pad from the accessory box, and affix it to the M.2. Figure 2.13 Affix the Thermal Pad to the M.2 2.2.4 Install the Wi-Fi Module Remove the rear cover. Assemble the antenna brackets to the antenna cables. Figure 2.14 Assemble the Brackets to the Antenna Cables PPC-315W/318W/321W/324W-TGL User Manual...
  • Page 24 Assemble the Wi-Fi card. Figure 2.15 Assemble the Wi-Fi Card Assemble the rear cover, and attach the antennae. Figure 2.16 Attach the Wi-Fi Antennae PPC-315W/318W/321W/324W-TGL User Manual...

  • Page 25: System Power On

    2.2.5 System Power On A 2-pin power connector is included in the accessory box. Connect the power con- nector to 12-30 V power lines and plug the power lines into the system power receptor. The DC power source should comply with ES1 requirements. The output rating is 12-30 Vdc, 8-4 A, with a maximum operating temperature of 50 °C.

  • Page 26: Mounting The System

    Mounting the System Warning! When mounting the panel PC, more than one person should perform the installation to prevent accidental damage to the panel or personal injury. Le comité constate qu’el-nasr “mounting, Plus d’une personne installa- tion to prevent the cadre accidental damage to the personal injury. The panel PC supports various mounting options, as listed below.
  • Page 27 Insert four M4 screws into the holes on the panel PC and tighten them to secure the bracket to the rear panel. Figure 2.19 Rear Panel Screw Locations Warning! Ensure that the thread depth of the screws on the rear panel does not exceed 4 mm (0.15 in).

  • Page 28: Panel Mounting

    Secure the panel PC in place by tightening the screws on the wall mount bracket. Figure 2.21 Securing the Panel PC 2.3.2 Panel Mounting To mount the flat bezel panel PC onto a panel, follow the steps below. Prepare a panel cutout according to the Panel PC dimensions. Panel cutout dimensions: PPC-315W: 413 x 262 mm / 16.26 x 10.31 in PPC-318W: 479.3 x 300.3 mm /18.87 x 11.82 in...
  • Page 29 Insert the hook brackets into the holes following the direction of the arrows shown in Figure 2.25 and hang the panel PC. Figure 2.23 Hook Bracket Locations Tighten the screws to secure the panel PC in place (Figure 2.26). Figure 2.24 Fasten the Hook Brackets Figure 2.25 Panel Mount Rear View (Using PPC-315W as an example) PPC-315W/318W/321W/324W-TGL User Manual...

  • Page 30: Arm Mounting

    2.3.3 Arm Mounting PPC-315W/318W/321W/324W TGL can be mounted on a VESA-compliant arm mount with a 100 mm (3.93 in) interface pad. To attach the panel PC to an arm mount, follow the steps below. Refer to the installation instructions of the mounting arm to correctly mount the arm onto the surface as a base.
  • Page 31 To mount the panel PC onto the stand, follow the steps below: Use four M4 x 8L screws to attach the VESA bracket to the panel PC. Users can choose a 100 x 100 mm (3.93 x 3.93 in) VESA mount according to their require- ments.
  • Page 32 Figure 2.28 Securing the VESA Mount Base Use four M4 x 6L screws to secure the mount stand to the VESA mount bracket. Figure 2.29 Securing the VESA Mount Bracket Use one M4 x 5L screw to secure the stand mount hinge cover. PPC-315W/318W/321W/324W-TGL User Manual...

  • Page 33: Cabinet Installation And Grounding

    Figure 2.30 Securing the Stand Mount Hinge Cover Figure 2.31 Completed Stand Mount 2.3.5 Cabinet Installation and Grounding Follow these instructions to install the PPC system, and pay attention to the ground pin which should be connected to the earth/ground. The PPC system should give the best performance for optimum EMI immunity, ESD immunity, surge immunity, and system isolation.
  • Page 34 Figure 2.32 Install the PPC into the Cabinet Step A: Connect the cabinet to the earth/ground. Step B: Embed the null PPC system into the cabinet without any I/O or power cables. System wiring. Figure 2.33 System Wiring Cabinet Step A: Connect the cabinet to the earth/ground. Step B: Ensure that all cabinets have been grounded together.
  • Page 35 Step F: Connect the V+ and V- of the power supply to the PPC system. Note! The wire of the protective earthing conductor should be green-and-yel- low, xx AWG 0.75mm2 and connected to the earth of the building. Ensure that the voltage of the power source is correct before connecting the equipment to a power outlet.
  • Page 36 PPC-315W/318W/321W/324W-TGL User Manual...

  • Page 37: Jumper Settings

    Chapter Jumper Settings  Jumpers and Connectors  External COM Ports and Pin Definitions...

  • Page 38: Motherboard Jumpers And Connectors

    Motherboard Jumpers and Connectors The motherboard connectors are shown below (Figure 3.1). The internal peripheral connectors are accessible when the motherboard is outside of the chassis. Figure 3.1 Motherboard The internal jumpers and connectors on the motherboard and their pinouts are listed in the table below.

  • Page 39: Rtc Select

    3.1.2 RTC Select Function 1-2pin Normal (Default*) 2-3pin Clear CMOS 3.1.3 ATX/AT Select Function 2-3pin ATX power (Default*) 1-2pin AT power 3.1.4 Touch Power Select Function Open Closed Note: For the resistive touch model, JP3 needs to have a jumper added. For the pro- jected capacitive touch model, JP3 needs the jumper pulled off.

  • Page 40: External Com Ports And Pin Definitions

    External COM Ports and Pin Definitions Figure 3.2 Locations of COM1 and COM2 Ports COM1: RS-232 COM1 Pin 9 is set as “RI” by default. This setting can be changed to 5V or 12V output using a jumper. COM2: RS-232/422/485 Note! COM2 does not support the ring function.

  • Page 41: Software Setup

    Chapter Software Setup  Driver Installation  BIOS Setup Program...

  • Page 42: Driver Installation

    Driver Installation Before installing software on the panel PC, install the corresponding drivers to ensure full functionality. All drivers can be downloaded from the Advantech website: http://www.advantech.com BIOS Setup Utility 4.2.1 Main Setup You can enter the BIOS setup utility by pressing “Delete” during startup.

  • Page 43: Advanced Bios Features Setup

    4.2.2 Advanced BIOS Features Setup The following is the COM2 Mode Selection (RS232/RS422/RS485): Select NCT6126D Super IO Configuration in the Advanced tab. Select the Serial Port 2 Configuration option. PPC-315W/318W/321W/324W-TGL User Manual...
  • Page 44 Select the Serial Port 2 Mode option to set COM2 operation mode as RS232, RS422, or RS485. If COM2 mode is set as RS485, the RS485 Auto Flow control option can be Enabled or Disabled. PPC-315W/318W/321W/324W-TGL User Manual...

  • Page 45: Chipset Configuration

    4.2.3 Chipset Configuration The following is regarding Wake-on-LAN: Select the PCH-IO Configuration option in the Chipset tab. Set the PCIE Wake option to Enabled. PPC-315W/318W/321W/324W-TGL User Manual...

  • Page 46: Security

    4.2.4 Security Set Administrator Password  PPC-315W/318W/321W/324W-TGL User Manual...

  • Page 47: Boot

    4.2.5 Boot Setup Prompt Timeout  This item allows users to set the number of seconds to wait for the setup activa- tion key. 65535 (oxFFFF) means indefinite waiting. Bootup NumLock State  This item allows users to select the keyboard NumLock state. Quiet Boot ...

  • Page 48: Save And Exit

    4.2.6 Save and Exit Save Changes and Exit  This item allows users to exit the system setup after saving changes. Discard Changes and Exit  This item allows users to exit the system setup without saving changes. Save Changes and Reset ...

  • Page 49: Bsmi Rohs

    Appendix BSMI RoHS...
  • Page 50 Note 3. “-” indicates that the restricted substance corresponds to the exemption. 製造商：研華股份有限公司 地址：台北市內湖區瑞光路 26 巷 20 弄 1 號 電話：02-27927818 Manufacturer: ADVANTECH Co., Ltd. Address: No. 1 Alley 20 Lane 26, Ruiguang Rd., Neihu District, Taipei City Telephone: 02-27927818 PPC-315W/318W/321W/324W-TGL User Manual...
