Safety gear
Exhaust
Other
2.5 Required Power Supply
For safety reasons use a power supply equipped with a ground fault interrupter.
The iMLayer uses 100 V AC, 15 A, 50/60 Hz (single phase). Avoid sharing power source with other
equipment.
To avoid electric shock, ensure grounding at power supply ground terminal has a resistance of 100 ohm
or less.
To assure performance, keep voltage fluctuation within ±10% and frequency stability within ±1 Hz.
In the country where power supply voltage is not AC100V, use a step-down transformer on the AC100V
power-supply line. Refer Fig.4 to install the step-down transformer.
If power supplies of the above specifications are not available, alterations to room power supply capacity
will be necessary.
<Step- down transformer>
Part number
225-25315-41
*The number 225 - 25315 -41 refers to the Shimadzu Corporation part number
Some matrices used contain toxic materials. Wear safety glasses, face shield,
protective gloves, mask and protective clothing such as a white coat during the
process. Use a Dustproof / Gasproof mask to prevent inhaling the matrix dust.
Be sure to discharge the evacuation gases from the rotary pump into a duct system
such as a draft chamber.
Be sure to read "Safety Instructions" of the instruction manual before using this
instrument.
Description
STEP- DOWN TRANSFORMER 1.5KVA

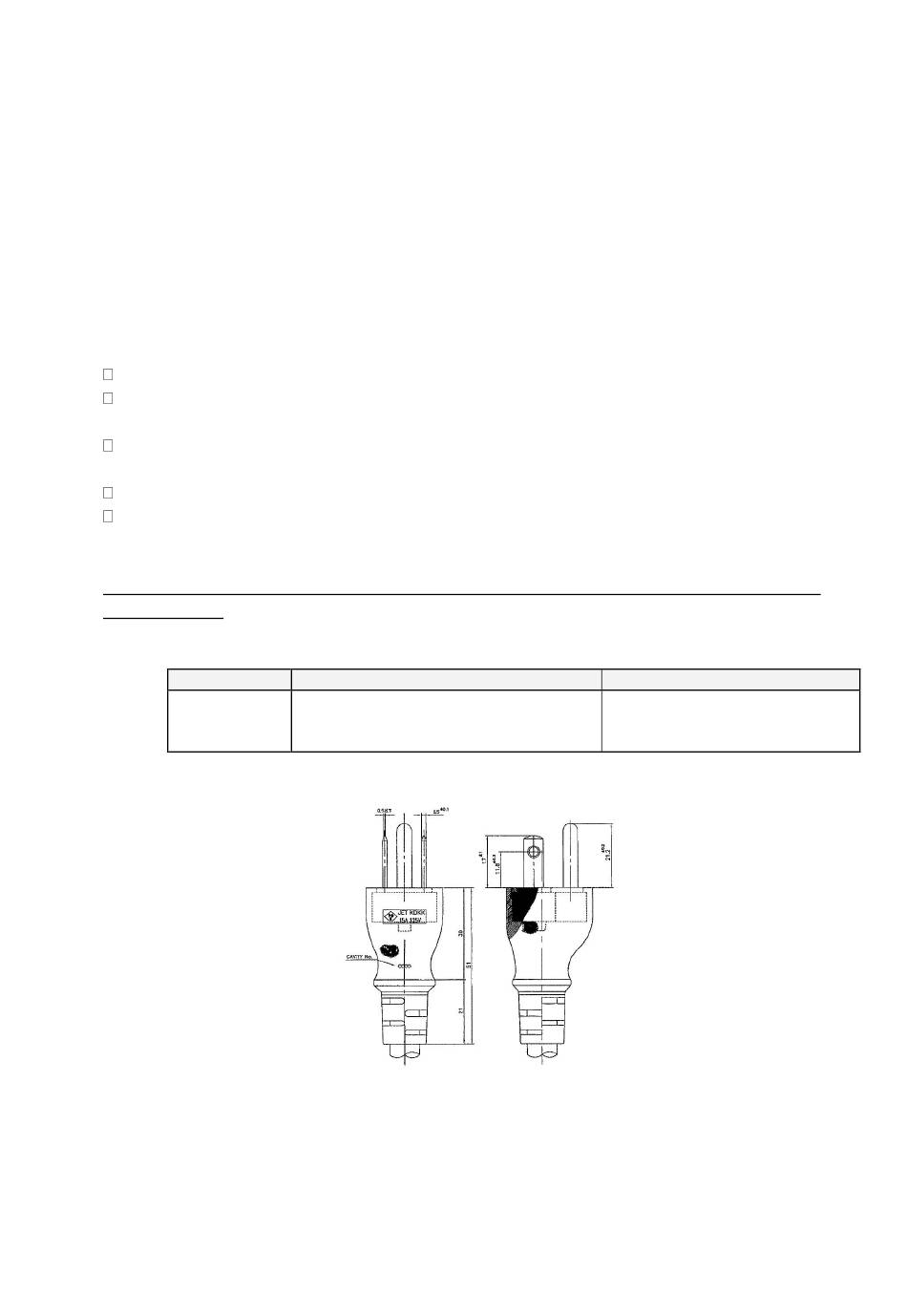

Fig 3 Configuration of AC100V power supply cable terminal
The Step- down transformer and
cables are included.
(Please prepare a plug.)
8
ZEBV-5088C
Remarks
