3.8.2 Installing a TPIM to the TRXI

To install a TPIM, perform the following steps:
Caution: Observe all static precautions while handling TPIMs.
1. Remove the mounting screw from the faceplate of the RI/RO port
on the TRXI.
2. If you are replacing a TPIM, remove the mounting screw and pull
the TPIM straight out from the TRXI.
3. Slide the new TPIM into place as shown in Figure 3-12.
4. Ensure the connectors on the rear of the module and on the inside
of the TRXI mate properly.
5. Reinstall the mounting screw.

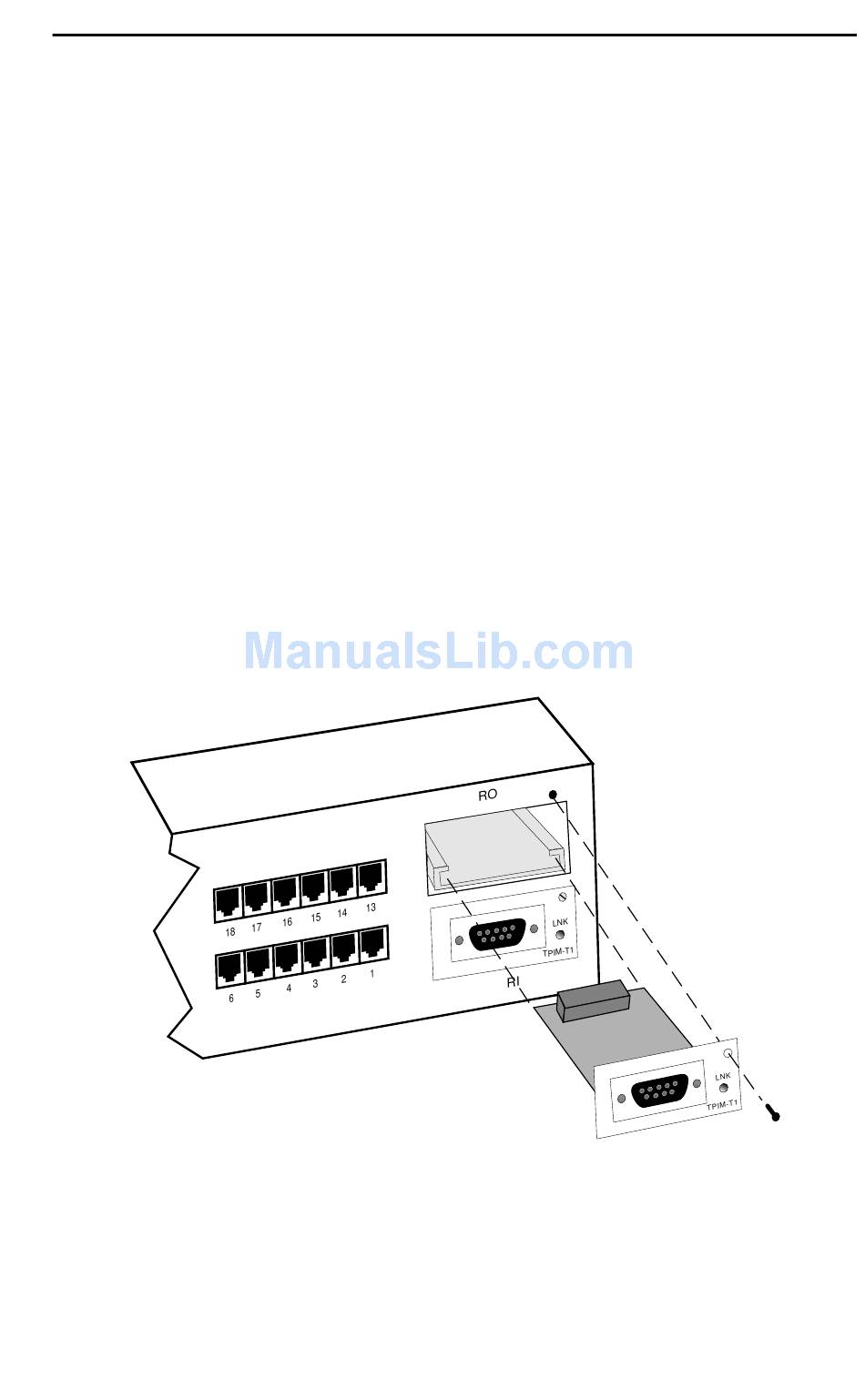

Figure 3-12. Installing a TPIM
INSTALLATION
Page 3-13
