2M46-04R/2M46-04RDC
SmartSwitch 2000
User's Guide
H
S
I
M
2
H
S
I
M
1
PWR
CPU
2M46-04R
RESET
1
2
COM
2314 00
9032363-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the pmn and is the answer not in the manual?

Questions and answers

Related Manuals for Cabletron Systems pmn

Summary of Contents for Cabletron Systems pmn

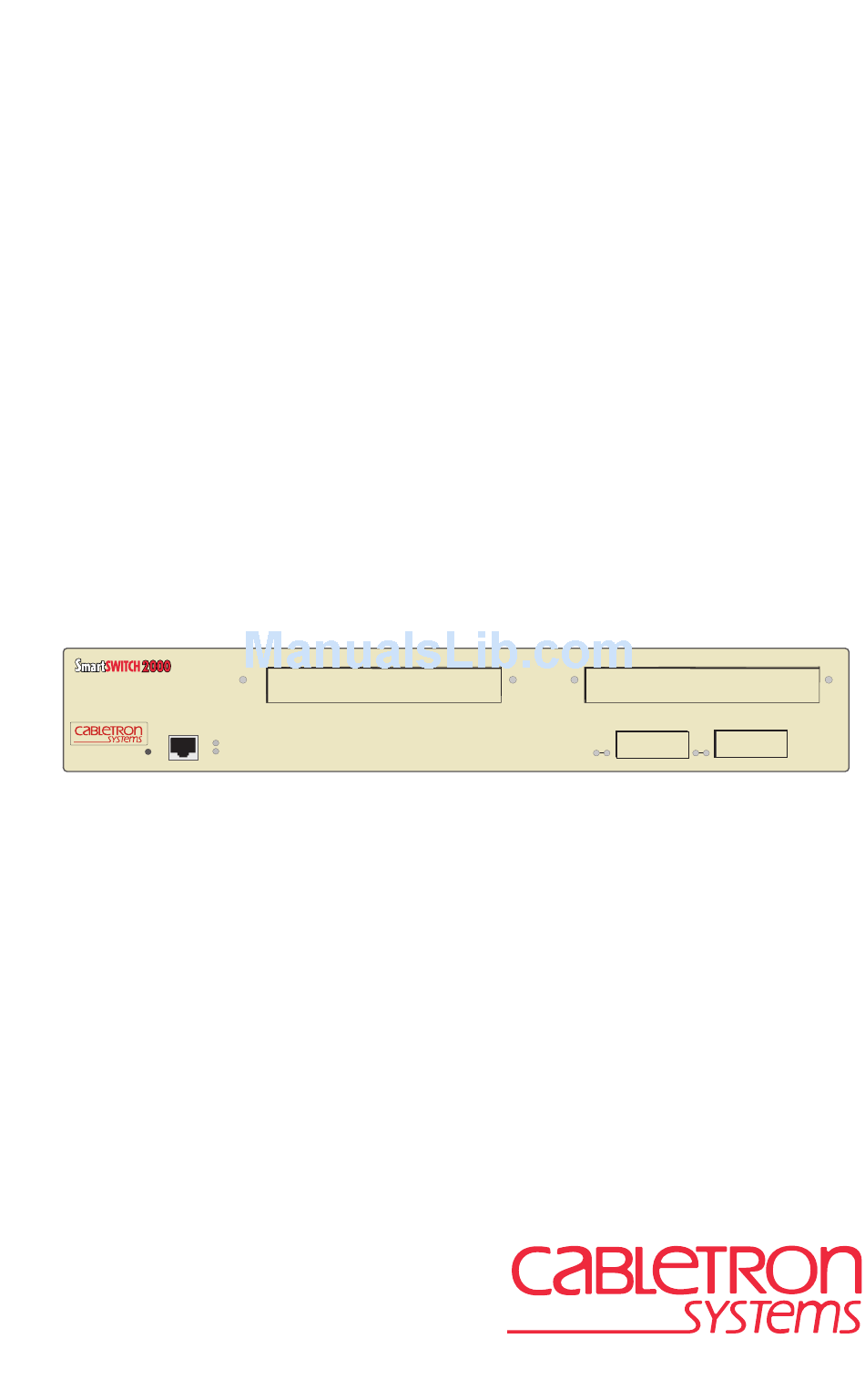

  • Page 1 2M46-04R/2M46-04RDC SmartSwitch 2000 User’s Guide 2M46-04R RESET 2314 00 9032363-02...

  • Page 3: Fcc Notice

    Only qualified personnel should perform installation procedures. Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made.

  • Page 4: Industry Canada Notice

    IMPORTANT: Before utilizing this product, carefully read this License Agreement. This document is an agreement between you, the end user, and Cabletron Systems, Inc. (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (the “Program”) contained in this package.
  • Page 5 Government is subject to restrictions as set forth in subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at 252.227-7013. Cabletron Systems, Inc., 35 Industrial Way, Rochester, New Hampshire 03867-0505. 2M46-04R/2M46-04RDC User’s Guide...

  • Page 6: Safety Information

    Notice CLASS 1 LASER TRANSCEIVERS THE FE-100F3 FAST ETHERNET INTERFACE MODULE, FPIM-05 AND FPIM-07 FDDI PORT INTERFACE MODULES, AND APIM-29 ATM PORT INTERFACE MODULE USE CLASS 1 LASER TRANSCEIVERS. READ THE FOLLOWING SAFETY INFORMATION BEFORE INSTALLING OR OPERATING THESE MODULES. The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation limits.

  • Page 7: Declaration Of Conformity

    ___________________________________ Title Rochester, NH, USA ___________________________________ Location 2M46-04R/2M46-04RDC User’s Guide 89/336/EEC 73/23/EEC Cabletron Systems, Inc. 35 Industrial Way PO Box 5005 Rochester, NH 03867 Mr. J. Solari Cabletron Systems Limited Nexus House, Newbury Business Park London Road, Newbury Berkshire RG13 2PZ, England...
  • Page 8 Notice 2M46-04R/2M46-04RDC User’s Guide...

  • Page 9: Table Of Contents

    CHAPTER 1 INTRODUCTION Using This Guide ... 1-1 Structure of This Guide... 1-1 2M46-04R Overview... 1-2 1.3.1 Connectivity ... 1-3 1.3.2 Full Duplex Switched Ethernet... 1-3 1.3.3 Auto-Negotiation ... 1-4 1.3.4 SmartTrunk ... 1-4 1.3.5 Runtime IP Address Discovery ... 1-5 1.3.6 Management ...
  • Page 10 5.8.1 Establishing Community Names ...5-31 SNMP Traps Screen ...5-32 5.9.1 Configuring the Trap Table...5-33 5.10 Switch Configuration Screen...5-34 5.10.1 Setting the STA ...5-36 5.10.2 Setting the Age Time Field ...5-36 5.10.3 Setting (Enabling or Disabling) the Port Status ...5-37 viii...
  • Page 11 5.11 Device Specific Configuration Menu Screen ... 5-37 5.12 System Resources Screen ... 5-39 5.12.1 Setting the Reset Peak Switch Utilization ... 5-41 5.13 High Speed Interface Configuration Menu Screen ... 5-42 5.14 High Speed Interface Configuration Screen ... 5-44 5.14.1 Configuring an FE-100FX or FE-100F3...
  • Page 12 FE-100F3 ... B-3 APPENDIX C OPTIONAL INSTALLATIONS AND MODE SWITCH BANK SETTINGS Required Tools... C-1 Removing the Chassis Cover ... C-2 C.2.1 Setting the Mode Switch ... C-3 Installing Optional Fast Ethernet Interface Modules ... C-6 INDEX 2M46-04R/2M46-04RDC User’s Guide...

  • Page 13: Chapter 1 Introduction

    Welcome to the 2M46-04R/04RDC SmartSwitch 2000 User’s Guide. This guide describes the 2M46-04R and 2M46-04RDC SmartSwitch 2000 devices and provides information concerning network requirements, installation, troubleshooting, and the use of Local Management. The 2M46-04R and 2M46-04RDC have identical features and NOTE functions with the exception of their power source connection.

  • Page 14: 2M46-04R Overview

    2M46-04R OVERVIEW The 2M46-04R, shown in switching device that supports traditional switching (bridging), IEEE 802.1Q switching (port based VLANs), and Cabletron Systems SecureFast Switching Virtual Network technology. The 2M46-04R also has redundant power supplies. Ports 1 and 2 on the 2M46-04R support optional Fast Ethernet Interface Modules and can provide uplinks to 100BASE-TX or 100BASE-FX Fast Ethernet networks.

  • Page 15: Connectivity

    The 2M46-04R is a tabletop unit that can be installed in a standard 19-inch rack using the supplied rack mounting hardware. The 2M46-04R has two ac power supplies. The power supplies load share 50% (+/-5%) of the power required by the device. If one power supply fails, the remaining power supply assumes the entire load of the device without interruption to network traffic.

  • Page 16: Auto-Negotiation

    All purchased bandwidth is used. • Distributed, resilient links increase reliability and performance. • Multiple technologies are supported within a single trunk for maximum flexibility. For more information about SmartTrunk, refer to the Cabletron Systems SmartTrunk User’s Guide. 2M46-04R/2M46-04RDC User’s Guide...

  • Page 17: Runtime Ip Address Discovery

    1.3.5 Runtime IP Address Discovery This feature enables the 2M46-04R to automatically accept an IP address from a BootP server on the network into NVRAM without requiring the user to enter an IP address through Local Management. When the 2M46-04R is connected to the network and powered up, Runtime IP Address Discovery (RAD) checks the 2M46-04R for an IP address.

  • Page 18: Switching

    MIBs including RFC 1213 (MIB II), RFC 1271 (RMON), RFC 1317 (RS232 MIB), RFC 1493 (Bridge MIB), RFC 1573 (Evolution of MIB II Interfaces), and RFC 1354 (FIB MIB). A full suite of Cabletron Systems Enterprise MIBs provide a wide array of statistical information to enhance troubleshooting.

  • Page 19: Optional Features

    1.3.11 Optional Features Options for the 2M46-04R include Fast Ethernet Interface Modules and High Speed Interface Modules to add uplink capability. Cabletron Systems provides Fast Ethernet Interface Modules to support uplinks to 100 Mbps Ethernet backbones or high speed connections to local servers. The Fast Ethernet Interface Modules are listed in Table 1-1 Fast Ethernet Interface Modules Description...

  • Page 20: Document Conventions

    Chapter 1: Introduction DOCUMENT CONVENTIONS The following conventions are used throughout this document: Note symbol. Calls the reader’s attention to any item of NOTE information that may be of special importance. Tip symbol. Conveys helpful hints concerning procedures or actions. Caution symbol.

  • Page 21: Getting Help

    Cabletron Systems Technical Writing Department via the following email address: TechWriting@cabletron.com Make sure to include the document Part Number in the email message. Before calling the Cabletron Systems Global Call Center, have the following information ready: • Your Cabletron Systems service contract number •...

  • Page 22: Related Manuals

    Cabletron Systems HSIM-F6 User’s Guide Cabletron Systems HSIM-FE6 User’s Guide Cabletron Systems HSIM-W6 Installation Guide Cabletron Systems HSIM-W84 Installation Guide Cabletron Systems Local Management for CSX200, CSX400, CSX400-DC, HSIM-W6, and HSIM-W84 Cabletron Systems HSIM-W87 User’s Guide Cabletron Systems HSIM-G01/G09 User’s Guide...

  • Page 23: Chapter 2 Network Requirements

    100BASE-TX Fast Ethernet operations. The cabling between the devices must meet the test criteria for a 100BASE-TX link for the devices to operate at 100 Mbps. Refer to the Cabletron Systems Cabling Guide for details. The 2M46-04R with an FE-100TX installed is capable of NOTE operating at either 10 or 100 Mbps.

  • Page 24: 100Base-Fx Fiber Optic Network

    Chapter 2: Network Requirements 100BASE-FX FIBER OPTIC NETWORK Ports 1 and 2 of the 2M46-04R support the Cabletron Systems FE-100FX and FE-100F3 fiber optic interface modules. The device at the other end of the fiber optic segment must support the 100BASE-FX Fast Ethernet operations.

  • Page 25: Installation

    Remove the black and amber tape seal on the non-conductive bag to remove the 2M46-04R. Perform a visual inspection of the device. If there are any signs of physical damage, contact the Cabletron Systems Global Call Center. 2M46-04R/2M46-04RDC User’s Guide CHAPTER 3...

  • Page 26: Installing Options

    Chapter 3: Installation INSTALLING OPTIONS Install any optional equipment before proceeding to NOTE Section 3.3. If the 2M46-04R is to be installed with an optional Fast Ethernet Interface Module, refer to Appendix C instructions for the HSIMs are in the associated HSIM user’s guide. INSTALLING THE 2M46-04R The 2M46-04R may be installed on a tabletop, shelf, or in a 19-inch rack.
  • Page 27 Locate the 2M46-04R on an unrestricted free surface area as shown in Figure 3-1. Proceed to instructions and to Section 3.4.2 instructions. 2M46-04R RESET A = 15 cm (6 in) B = 57 cm (22.5 in) C = 53 cm (21 in) D = 213 cm (7 ft) Figure 3-1 Tabletop or Shelf Installation 2M46-04R/2M46-04RDC User’s Guide...

  • Page 28: 2M46-04R And 2M46-04Rdc Rackmount Installation

    5.1 cm (2.0 in) at the left, right, CAUTION and rear of the 2M46-04R. To install the 2M46-04R/04RDC in a 19-inch rack, Cabletron Systems includes an accessory kit containing the rackmount brackets, mounting screws, and a strain-relief bracket for cable management.
  • Page 29 Strain-Relief Bracket HSIM Figure 3-2 Attaching the Strain-Relief Bracket There are two methods for attaching the rackmount brackets for the 2M46-04R and 2M46-04RDC. Proceed to the section entitled Rackmounting the 2M46-04R 2M46-04R, or the section entitled 2M46-04RDC, which discusses the GR-1089-CORE Section 9 bonding requirements for the 2M46-04RDC when installing rackmount brackets.
  • Page 30 Chapter 3: Installation 2M46-04R RESET Figure 3-3 Installing the Rackmount Brackets With the mounting brackets installed, position the 2M46-04R between the vertical frame members of the 19-inch rack and fasten it securely with mounting screws as shown in 2M46-04R RESET Figure 3-4 Installing the 2M46-04R in a Rack Bonding the Rackmount Brackets to the 2M46-04RDC If the 2M46-04RDC is going to be mounted in a rack and needs to meet...
  • Page 31 Locate the four 6-32 x 3/8-inch flathead cover replacement screws in the rackmount kit. Use these screws to attach the rackmount brackets to the 2M46-04RDC as shown in RESET 2M46-04RDC Figure 3-5 Installing the 2M46-04RDC Rackmount Brackets With the mounting brackets installed, position the 2M46-04RDC between the vertical frame members of the 19-inch rack and fasten it securely with thread-forming mounting screws (user supplied) as shown in...

  • Page 32: Connecting Power

    Chapter 3: Installation CONNECTING POWER The 2M46-04R connects to an ac power source and the 2M46-04RDC connects to a dc power source. If you are connecting power to a 2M46-04R, proceed to section 3.4.1. If you are connecting power to a 2M46-04RDC, proceed to section 3.4.2.

  • Page 33: Connecting Power To The 2M46-04Rdc

    HAVING JURISDICTION. The 2M46-04RDC has two dc power supplies with their own on/off switch and input power strip, and are each rated at 100 watts. Each dc power supply input requires either a 48 Vdc or 60 Vdc power source, 4.0 A (maximum), supplied by three 12 or 14 AWG (American Wire...
  • Page 34 Chapter 3: Installation To connect the 2M46-04RDC to a 48/60 Vdc power source, face the back of the device, then refer to DC Input Power Strip Figure 3-8 Connecting to a 48/60 Vdc Power Supply To prevent injury or damage to the equipment, remove power from a 48/60 Vdc power source before proceeding with the following steps.

  • Page 35: Connecting To The Network

    Restore power from the 48/60 Vdc power source. Press the on/off switch to on. If the alarm sounds again, press the power switch to off and contact the Cabletron Systems Global Call Center. Refer to CONNECTING TO THE NETWORK This section provides the procedures for connecting UTP and fiber optic...
  • Page 36 2. RX- 6. TX- 3. TX+ 7. NC 4. NC 8. NC Figure 3-9 FE-100TX Crossover Switch A schematic of a crossover cable is shown in NOTE: RX+/RX– and TX+/TX– must share a common color pair. Figure 3-10 Schematic of Crossover Cable...

  • Page 37: Connecting A Fiber Optic Segment To The Fe-100Fx And Fe-100F3

    Cabletron Systems Cabling Guide. Confirm that the crossover switch is in the correct position. If a link is not established, see contacting the Cabletron Systems Global Call Center (refer to for details). 3.5.2 Connecting a Fiber Optic Segment to the...
  • Page 38 Chapter 3: Installation Do not touch the ends of the fiber optic strands, and do not let the ends come in contact with dust, dirt, or other contaminants. Contamination of the ends causes problems in data CAUTION transmissions. If the ends become contaminated, blow the surfaces with a canned duster.

  • Page 39: Completing The Installation

    Verify that the fiber connection meets the dB loss specifications outlined in the Cabletron Systems Cabling Guide. If a link is not established, see contacting the Cabletron Systems Global Call Center (refer to Section 1.5, for details). COMPLETING THE INSTALLATION...
  • Page 40 Chapter 3: Installation 3-16 2M46-04R/2M46-04RDC User’s Guide...

  • Page 41: Chapter 4 Troubleshooting

    Troubleshooting network and 2M46-04R operational problems • Using the RESET button USING LANVIEW The 2M46-04R uses the Cabletron Systems built-in visual diagnostic and status monitoring system called LANVIEW. The LANVIEW LEDs (Figure 4-1) allow quick observation of the network status to aid in diagnosing network problems.
  • Page 42 Chapter 4: Troubleshooting The terms flashing, blinking, and solid used in the following NOTE tables indicate the following: Flashing indicates an irregular LED pulse. Blinking indicates a steady LED pulse (50% on, 50% off). Solid indicates a steady LED light. No pulsing. Color Green Amber...
  • Page 43 Table 4-1 LANVIEW LEDs (Continued) Color (Receive) Green Amber (Transmit) Green Green Amber 2M46-04R/2M46-04RDC User’s Guide State No link. No activity. Port enabled or disabled. Solid. Port enabled, link, no activity. Blinking. Port disabled, link. Flashing. Port enabled, link, activity. Diagnostic failure.

  • Page 44: Fe-100Tx Led

    Chapter 4: Troubleshooting FE-100TX LED The optional FE-100TX has one LED labeled 10/100. The 10/100 LED together with the receive LED allows the user to determine the link status and the operating speed of the Fast Ethernet Interface Module. The 10/100 LED and the Receive (RX) LED are shown in Table 4-2 Table 4-3...
  • Page 45 No link exists if the associated port (1 or 2) RX (Receive) LED NOTE is off. Table 4-3 10/100 LED Indications When RX LED Is Off Color 10/100 Green 2M46-04R/2M46-04RDC User’s Guide Indication No link or no cable attached. FE-100TX forced to 10 Mbps operation, or is manually set to “auto-negotiate”...

  • Page 46: Troubleshooting Checklist

    Enable port. Check link to device. Review network design and delete unnecessary loops. Call the Cabletron Systems Global Call Center if the problem continues. Reenter the lost parameters as necessary. Call the Cabletron Systems Global Call Center if problem continues.

  • Page 47: Using The Reset Button

    Clearing NVRAM may be performed via Local Management. NOTE Section 5.7.11 may be cleared by changing the position of mode switch 7 (Clear NVRAM) as described in necessary to use this method when it is not possible to access Local Management.
  • Page 48 Chapter 4: Troubleshooting 2M46-04R/2M46-04RDC User’s Guide...

  • Page 49: Chapter 5 Local Management

    LOCAL MANAGEMENT This chapter explains how to set up a management terminal to access Local Management. It also explains how to use the Local Management screens and commands. OVERVIEW Local Management for the 2M46-04R consists of a series of screens that allow the management of the 2M46-04R.

  • Page 50: Local Management Keyboard Conventions

    Chapter 5: Local Management LOCAL MANAGEMENT KEYBOARD CONVENTIONS All key names appear as capital letters in this manual. the keyboard conventions and the key functions that are used. Table 5-1 Keyboard Conventions ENTER Key RETURN Key ESCAPE (ESC) Key SPACE Bar BACKSPACE Key Arrow Keys [–] Key...

  • Page 51: Management Terminal Setup

    MANAGEMENT TERMINAL SETUP Use one of the following systems to access Local Management: • An IBM or compatible PC running a VT series emulation software package • A Digital Equipment Corporation VT100 type terminal • A VT type terminal running emulation programs for the Digital Equipment Corporation VT100 series •...
  • Page 52 Chapter 5: Local Management HSIM 2 HSIM 1 2M46-04R RESET RJ45 COM Port UTP Cable with RJ45 Connectors RJ45-to-DB9 PC Adapter 2314-50 Figure 5-1 Management Terminal Connection 2M46-04R/2M46-04RDC User’s Guide...

  • Page 53: Management Terminal Setup Parameters

    5.3.2 Management Terminal Setup Parameters Table 5-2 lists the setup parameters for the local management terminal. Display Setup Menu Columns -> Controls -> Auto Wrap -> Scroll -> Text Cursor -> Cursor Style -> General Setup Menu Mode -> ID number -> Cursor Keys ->...

  • Page 54: Telnet Connections

    Chapter 5: Local Management 5.3.3 Telnet Connections Once the 2M46-04R has a valid IP address, a Telnet session with Local Management can be established from any TCP/IP based station on the network. Telnet connections to the 2M46-04R require the passwords assigned at the SNMP Community Names screen.
  • Page 55 DB9 Port UPS Device RJ45-to-DB9 UPS Adapter Figure 5-2 Uninterruptible Power Supply (UPS) Connection 2M46-04R/2M46-04RDC User’s Guide Management Terminal Setup HSIM 2 2M46-04R RESET RJ45 COM Port UTP Cable with RJ45 Connectors HSIM 1 2314_51...

  • Page 56: Accessing Local Management

    5.8. The following steps 2M46-04R LOCAL MANAGEMENT CABLETRON Systems, Incorporated P.O.Box 5005 Rochester, NH 03866-5005 USA (603) 332-9400 (c) Copyright CABLETRON Systems, Inc, 1997 Device Serial Number: Device Hardware Revision: Device Firmware Revision: Device BOOTPROM Revision: Enter Password: Event Message Line 2M46-04R/2M46-04RDC User’s Guide...

  • Page 57: Navigating Local Management Screens

    802.1D Switching (traditional switching) • 802.1Q Switching (port based switching) • SecureFast VLAN (Cabletron Systems SecureFast switching) Refer to the Release Notes shipped with the product to verify NOTE which screens are supported in each of the three available switching modes.
  • Page 58 Device Menu Device Statistics Menu Network Tools Figure 5-5 802.1Q Switching Mode, LM Screen Hierarchy 5-10 General Configuration SNMP Community Names SNMP Traps Switch Configuration SmartTrunk Configuration System Device Specific Resources Configuration Menu High Speed Interface Configuration Flash Download Port Redirect...

  • Page 59: Selecting Local Management Menu Screen Items

    Device Configuration Menu Password Device Menu Device Statistics Menu Network Tools Figure 5-6 SecureFast VLAN Mode, LM Screen Hierarchy 5.4.2 Selecting Local Management Menu Screen Items Select items on a menu screen by performing the following steps: Use the arrow keys to highlight a menu item. Press ENTER.

  • Page 60: Device Menu Screen

    Chapter 5: Local Management The user can also exit Local Management screens by pressing NOTE ESC twice. This exit method does not warn about unsaved changes and all unsaved changes will be lost. Exit from 2M46-04R Local Management by repeating steps 1 and 2 until the Device Menu screen displays.

  • Page 61: Device Configuration

    If the terminal is idle for a modifiable period of time, the NOTE Password screen redisplays and the session ends. The following explains each Device Menu screen field as shown in Figure 5-7: DEVICE CONFIGURATION The Device Configuration screen provides access to the Local Management screens that are used to configure the 2M46-04R and also to the Device Specific Configuration menu screen.

  • Page 62: Device Configuration Menu Screen

    DEVICE CONFIGURATION menu item and press ENTER. The Device Configuration Menu screen displays. The Switch Configuration menu will only display if the NOTE operational mode of the device has been set to 802.1D SWITCHING or 802.1Q SWITCHING.
  • Page 63 The SmartTrunk Configuration screen allows the user to logically group interfaces together to aggregate high speed uplinks. Refer to the Cabletron Systems SmartTrunk User’s Guide for additional information. DEVICE SPECIFIC CONFIGURATION The Device Specific Configuration menu screen allows the user to select screens to configure ports or check system resources specific to the...

  • Page 64: General Configuration Screen

    Chapter 5: Local Management GENERAL CONFIGURATION SCREEN The General Configuration screen, other things, set the system date and time, IP address and subnet mask, the default gateway, the TFTP gateway IP address, the operational mode, and the COM port configuration. To access the General Configuration screen from the Device Configuration Menu screen, use the arrow keys to highlight the GENERAL CONFIGURATION menu item and press ENTER.
  • Page 65 General Configuration Screen Subnet Mask (Modifiable) Displays the subnet mask for the 2M46-04R. A subnet mask “masks out” the network bits of the IP address by setting the bits in the mask to 1 when the network treats the corresponding bits in the IP address as part of the network or subnetwork address, or to 0 if the corresponding bit identifies the host.
  • Page 66 This field allows the user to set the 2M46-04R to operate as a traditional switch (802.1D SWITCHING), an IEEE 802.1Q switch (802.1Q SWITCHING), or as a Cabletron Systems SecureFast switch (SECURE FAST VLAN). In 802.1D SWITCHING mode, the Fast Ethernet Interface Module(s), and HSIM port(s) are bridged to each other.

  • Page 67: Setting The Ip Address

    Clear NVRAM (Toggle) This allows the user to reset NVRAM to the factory default settings. All user-entered parameters, such as IP address and community names, are then replaced with 2M46-04R default configuration settings. For details, refer to Section 5.7.11. IP Fragmentation (Toggle) This field, which only displays if an HSIM-F6 is installed in the 2M46-04R, allows the user to enable or disable IP Fragmentation.

  • Page 68: Setting The Subnet Mask

    Chapter 5: Local Management Event Message Line YOU HAVE ELECTED TO SAVE ONE OR MORE CONFIGURATION ITEMS THAT REQUIRE RESETTING THIS DEVICE. ARE YOU SURE YOU WANT TO CONTINUE? Figure 5-10 Configuration Warning Screen Use the arrow keys to highlight the YES command and press ENTER. The changes are saved and the device reboots.

  • Page 69: Setting The Default Gateway

    Use the arrow keys to highlight the SAVE command, then press ENTER. The warning screen shown back in Use the arrow keys to highlight the YES command and press ENTER. The changes are saved and the device reboots. 5.7.3 Setting the Default Gateway If the SNMP management station is located on a different IP subnet than the 2M46-04R, a default gateway must be specified.

  • Page 70: Setting The Device Date

    Chapter 5: Local Management Press ENTER. If the TFTP gateway IP address entered is a valid format, the cursor returns to the beginning of the TFTP Gateway IP Address field. If the entry is not valid, the Event Message Line displays “INVALID TFTP GATEWAY IP ADDRESS OR FORMAT ENTERED”.

  • Page 71: Setting The Device Time

    5.7.6 Setting the Device Time To set the device time, perform the following steps: Use the arrow keys to highlight the Device Time field. Enter the time in this 24-hour format: HH:MM:SS When entering the time in the system time field, separators NOTE between hours, minutes, and seconds are not needed as long as each entry uses two numeric characters.

  • Page 72: Setting The Screen Lockout Time

    If the 2M46-04R has been set to SECURE FAST VLAN, refer to NOTES your SecureFast documentation set to configure the device for this type of operation. If the 2M46-04R has been set to 802.1Q SWITCHING, refer to the Cabletron Systems Port Based VLAN User’s Guide . 5-24 2M46-04R/2M46-04RDC User’s Guide...

  • Page 73: Configuring The Com Port

    5.7.10 Configuring the COM Port Upon power up, the COM port is configured to the default settings of ENABLED and LM. Before altering the COM port settings, ensure that a valid IP address is set. Refer to CAUTION port configuration section before altering the COM port settings.

  • Page 74: Changing The Com Port Application

    Chapter 5: Local Management THE COM PORT HAS BEEN RECONFIGURED AND THERE IS NO IP ADDRESS SET FOR THIS DEVICE. YOU WILL NO LONGER BE ABLE TO MANAGE THIS BOARD. DO YOU STILL WISH TO RECONFIGURE THIS COM PORT? Figure 5-11 COM Port Warning Screen Use the arrow keys to highlight YES.
  • Page 75 Use the SPACE bar or BACKSPACE to step through the available settings until the operation you require displays. available settings and their corresponding applications. Table 5-3 COM Port Application Settings Setting Press ENTER to accept the application. When the COM port is configured to perform the UPS application, all future LM connections must be made by a Telnet CAUTION connection.

  • Page 76: Clearing Nvram

    Chapter 5: Local Management 5.7.11 Clearing NVRAM Clearing NVRAM will result in the loss of all user-entered parameters. Do not proceed unless this procedure is CAUTION completely understood. Clearing NVRAM allows the user to clear all user-entered parameters, such as, the IP address and Community Names from NVRAM. Clear NVRAM as follows: Use the arrow keys to highlight the Clear NVRAM field.

  • Page 77: Enabling/Disabling Ip Fragmentation

    5.7.12 Enabling/Disabling IP Fragmentation To enable or disable IP fragmentation, proceed as follows: Use the arrow keys to highlight the IP Fragmentation field. Press the SPACE bar to choose either ENABLED or DISABLED. Use the arrow keys to highlight the SAVE command. Press ENTER.
  • Page 78 Chapter 5: Local Management Event Message Line Device Type: 2M46-04R Community Name public public public SAVE Figure 5-13 SNMP Community Names Screen The following explains each SNMP Community Names screen field: Community Name (Modifiable) Displays the user-defined name through which a user accesses the 2M46-04R SNMP Management.

  • Page 79: Establishing Community Names

    super-user 5.8.1 Establishing Community Names The password used to access Local Management at the Password Screen must have super-user access to view and edit the SNMP Community Names screen. Using a password with read-only or read-write access does not allow the user to view or edit the SNMP Community Names screen. Any community name assigned in the SNMP Community NOTE Names screen is a password to its corresponding level of...

  • Page 80: Snmp Traps Screen

    Chapter 5: Local Management SNMP TRAPS SCREEN Since the 2M46-04R is an SNMP compliant device, it can send messages to multiple Network Management Stations to alert users of status changes. The SNMP Traps screen is shown in To access the SNMP Traps screen from the Device Configuration Menu screen, use the arrow keys to highlight the SNMP TRAPS menu item and press ENTER.

  • Page 81: Configuring The Trap Table

    5.9.1 Configuring the Trap Table To configure the Trap table, proceed as follows: Use the arrow keys to highlight the appropriate Trap Destination field. Enter the IP address of the workstation that is to receive traps. IP address entries must follow the DDN format. For example: 134.141.79.121 Press ENTER.

  • Page 82: Switch Configuration Screen

    Menu screen, use the arrow keys to highlight the SWITCH CONFIGURATION menu item and press ENTER. The Switch Configuration screen displays. Ports 1 and 2 of the Switch Configuration screen correspond to NOTE the Fast Ethernet slots and ports 3 and 4 correspond to the HSIM slots.
  • Page 83 Type of STA (Modifiable) Allows the user to set the method that switches use to decide which switch is the controlling (Root) switch when two or more switches exist in parallel (Spanning Tree Algorithm). Valid entries include IEEE, DEC, and NONE.

  • Page 84: Setting The Sta

    The Spanning Tree Algorithm (STA) setting allows the user to set the method that the switches use to decide which is the controller (Root) switch when two or more switches are in parallel. The available selections are IEEE, DEC, and NONE.

  • Page 85: Setting (Enabling Or Disabling) The Port Status

    5.10.3 Setting (Enabling or Disabling) the Port Status To set the status of an interface (port), proceed as follows: Use the arrow keys to highlight the Status field of the port. Use the SPACE bar to toggle to either ENABLED or DISABLED. Use the arrow keys to highlight the SAVE command at the bottom of the screen.

  • Page 86: System Resources

    Chapter 5: Local Management Device Type: 2M46-04R SAVE Figure 5-16 Device Specific Configuration Menu Screen The following explains each selectable item in the Device Specific Configuration Menu screen: SYSTEM RESOURCES The System Resources screen displays the amount of FLASH memory, DRAM and NVRAM installed, indicates the amount of available memory and provides information on 2M46-04R operation.

  • Page 87: System Resources Screen

    5.7.9, describes how to configure the 2M46-04R to function as an 802.1Q switch). When selected, this menu item opens the VLAN Main Menu screen. For details on the VLAN Main Menu screen, refer to the Cabletron Systems Port Based VLAN User’s Guide. 5.12...
  • Page 88 NVRAM Installed (Read-only) Indicates the amount of NVRAM installed in the 2M46-04R and how much of it is currently available. Current Switch Utilization (Read-only) Shows how much (percentage of switch capacity) of the 2M46-04R is currently being used. 5-40 2M46-04R LOCAL MANAGEMENT...

  • Page 89: Setting The Reset Peak Switch Utilization

    Reset Peak Switch Utilization (Toggle) Allows the user to reset the Peak Switch Utilization field. The switch may be set to either YES or NO. YES resets the Peak Switch Utilization field to zero. 5.12.1 Setting the Reset Peak Switch Utilization To reset the Peak Switch Utilization field to zero, proceed as follows:...

  • Page 90: High Speed Interface Configuration Menu Screen

    Chapter 5: Local Management 5.13 HIGH SPEED INTERFACE CONFIGURATION MENU SCREEN This screen does not display unless one, or both, Fast Ethernet NOTE Interface Modules AND an HSIM are installed. This screen will also not display if the HSIM that is installed is an HSIM-W6 or an HSIM-W84.
  • Page 91 High Speed Interface Configuration Menu Screen The following briefly explains each screen accessible from the High Speed Interface Configuration Menu screen: FAST ETHERNET INTERFACES Displays a screen named High Speed Interface Configuration which shows the types of Fast Ethernet Interface Modules installed in ports 1 and 2, their current operating mode, and indicates if the ports are linked.

  • Page 92: High Speed Interface Configuration Screen

    Chapter 5: Local Management 5.14 HIGH SPEED INTERFACE CONFIGURATION SCREEN The High Speed Interface Configuration screen, to Fast Ethernet Interface Module ports 1 and 2. This screen supports the FE-100TX, FE-100FX, and FE-100F3 Fast Ethernet Interface Modules that operate at 10 or 100 Mbps. If you are configuring an HSIM which is installed in the 2M46-04R, use the arrow keys to highlight the HSIMS menu item and press ENTER.
  • Page 93 The following briefly explains each field of the High Speed Interface Configuration screen: Port Type (Read-only) Displays the type of interface (FE-100FX, FE-100TX, FE-100F3, or Unknown) installed in ports 1 and 2. FE-100TX interface installed in port 1 and no interface, indicated by Unknown, in port 2.

  • Page 94: Configuring An Fe-100Fx Or Fe-100F3 In Port 1 Or 2

    Chapter 5: Local Management In normal operation, the port with an FE-100TX installed NOTE automatically establishes a link with the device at the other end of the segment without requiring user setup. However, Local Management provides the user with the option of manually configuring that port.

  • Page 95: Setting The Fe-100Fx Or Fe-100F3 Desired Operational Mode

    5.14.2 Setting the FE-100FX or FE-100F3 Desired Operational Mode Use this field to set the active technology. This field toggles between 100Base-FX and 100Base-FXFD (full duplex). To set the active technology through Local Management, proceed as follows: Use the arrow keys to highlight the Desired Oper. Mode field. Use the SPACE bar to select 100Base-FX or 100Base-FXFD (full duplex).

  • Page 96: Setting The Fe-100Tx Advertised Ability

    TFTP server. The user may also force the download of an image by changing NOTES the position of Switch 6 located inside the device. Refer to Section C.2.1, Setting the Mode Switch, for details. If Switch 6 is toggled, the TFTP server must be located on a Fast Ethernet port.
  • Page 97 To access the Flash Download screen from the Device Specific Configuration Menu screen, use the arrow keys to highlight the FLASH DOWNLOAD menu item and press ENTER. The Flash Download screen displays. TFTP DOWNLOAD. WILL COMMIT TO FLASH. REBOOT IN PROGRESS... Device Type: 2M46-04R EXECUTE Figure 5-20 Flash Download Screen...

  • Page 98: Image File Download Using Bootp

    Chapter 5: Local Management Reboot After Download (Modifiable when RUNTIME is chosen only) This field notifies the user that the 2M46-04R will reboot after the download is complete. If a Runtime Download is performed, this field toggles between YES and NO. If YES is selected, the device reboots after the download is completed.

  • Page 99: Image File Download Using Tftp

    Set the IP address of the TFTP gateway server (this defaults to the same IP address set in the TFTP Gateway IP Addr field in the General Configuration screen). Use the arrow keys to highlight EXECUTE at the bottom of the screen and press ENTER.

  • Page 100: Image File Download Using Runtime

    Chapter 5: Local Management 5.15.3 Image File Download Using Runtime To download a new firmware image into FLASH using Runtime, proceed as follows: Use the arrow keys to highlight the Download Method field. Use the SPACE bar to select RUNTIME. Use the arrow keys to highlight the Reboot After Download field.

  • Page 101: Port Redirect Function Screen

    5.16 PORT REDIRECT FUNCTION SCREEN The Port Redirect Function screen, each one of the ports as a source or destination port. A port can be set to have one or more destination ports. For example, port 1 can be set as a source port with three destinations, ports 2, 3, and 4.

  • Page 102: Displaying The Source And Destination Entries

    Chapter 5: Local Management The following definitions briefly explain each field of the Port Redirect Function screen: Source Port (Read-only) Shows which ports are currently set as source ports. Destination Port (Read-only) Shows which ports are currently set as destination ports. Remap Errors (Read-only) Shows whether destination ports are receiving errored frames and valid traffic (ON) or just valid traffic (OFF).

  • Page 103: Changing Source And Destination Ports

    5.16.2 Changing Source and Destination Ports Add or delete source port and destination port entries as follows: Use the arrow keys to highlight the Source Port field. Press the SPACE bar or BACKSPACE one or more times to increment or decrement the port number displayed in the brackets [n] until the appropriate port number is displayed.

  • Page 104: Broadcast Suppression Screen

    Chapter 5: Local Management 5.17 BROADCAST SUPPRESSION SCREEN The Broadcast Suppression screen will display only if the NOTE operational mode of the device has been set to 802.1D SWITCHING or 802.1Q SWITCHING. Refer to Setting the Operational Mode the device to operate in this mode. The Broadcast Suppression screen, desired limit of receive broadcast frames that are switched out to the other interfaces.

  • Page 105: Setting The Threshold

    The following explains each field of the Broadcast Suppression screen: Port # (Read-only) Identifies the number of the port. Total RX (Read-Only) Displays the total number of broadcast frames received. Peak Rate (Read-Only) Displays the highest number of broadcast frames received in a one second interval.

  • Page 106: Setting The Reset Peak Rate

    DEVICE STATISTICS MENU SCREEN The Device Statistics Menu screen, screens that allow the user to obtain switch statistics about frame traffic through each interface and view operating statistics about each interface. To access the Device Statistics Menu from the Device Menu screen, use the arrow keys to highlight the DEVICE STATISTICS menu item and press ENTER.

  • Page 107: Switch Statistics

    Figure 5-23 Device Statistics Menu Screen The Device Statistics Menu screen displays the following items: SWITCH STATISTICS The Switch Statistics screen lists the number of frames received, transmitted, filtered, and forwarded by each interface. For details, refer to Section 5.19.

  • Page 108: Switch Statistics Screen

    The Switch Statistics screen, received, transmitted, filtered, and forwarded by each interface. To access the Switch Statistics screen from the Device Statistics Menu screen, use the arrow keys to highlight the SWITCH STATISTICS menu item and press ENTER. The Switch Statistics screen displays.

  • Page 109: Using The Clear Counters Command

    To reset all the statistic counters to zero, perform the following steps: Use the arrow keys to highlight the CLEAR COUNTERS field at the bottom of the screen. Press ENTER, and the counters for the selected interface are reset to zero. 2M46-04R/2M46-04RDC User’s Guide Switch Statistics Screen Section 5.19.1. 5-61...

  • Page 110: Interface Statistics Screen

    INTERFACE STATISTICS SCREEN The Interface Statistics screen, statistics for the 2M46-04R Fast Ethernet Interface Modules. Cabletron Systems HSIMs gather their own statistics, and may NOTE be viewed via the Local Management screens of the applicable HSIM. Refer to your HSIM documentation for information on how to access these screens.
  • Page 111 The InDiscards field displays the total number of inbound frames that were discarded, even though the frames contained no errors. This field may increment because the switch needed to free up buffer space, or the switch was being overutilized. InErrors (Read-only) This field displays the total number of inbound frames that have been...
  • Page 112 The OutDiscards field displays the total number of outbound frames that were discarded, even though the frames contained no errors. This field may increment, because the switch needed to free up buffer space, or the switch was being overutilized. OutErrors (Read-only) This field displays the total number of outbound frames discarded...

  • Page 113: Displaying Interface Statistics

    MTU (Read-only) The maximum transmission unit (MTU) field displays the maximum data field size (in octets) that a frame may contain to be received or transmitted from this interface. Speed (Read-only) The Speed field displays the interface’s theoretical maximum bandwidth in bits per second.

  • Page 114: Using The Clear Counters Command

    Chapter 5: Local Management 5.20.2 Using the Clear Counters Command To reset all the statistics counters of the selected interface to zero, perform the following steps: Use the arrow keys to highlight the CLEAR COUNTERS field. Press ENTER, the counters for the selected interface are reset to zero. 5.21 RMON STATISTICS SCREEN RMON statistics for every interface, on a interface-by-interface basis, are...
  • Page 115 Drop Events (Read-only) This field displays the total number of times that the RMON agent was forced to discard frames due to the lack of available switch resources. The Drop Events field does not display the number of frames NOTE dropped, it only displays the number of times that the RMON agent was forced to discard frames.
  • Page 116 Chapter 5: Local Management Multicast Pkts (Read-only) The Multicast Pkts field displays the total number of good frames received that were directed to a multicast address. The value of this field does not include frames directed to the broadcast address. CRC Align Errors (Read-only) This field displays the number of frames with bad Cyclic Redundancy Checks (CRC) received from the network.

  • Page 117: Clear Counters

    RMON Statistics Screen Total Octets (Read-only) This field displays the total number of octets (bytes) of data, including those in bad frames, received on this interface. 64 Octets (Read-only) Displays the total number of frames including bad frames, received that were 64 bytes in length (excluding framing bits, but including FCS bytes).

  • Page 118: Displaying Rmon Statistics

    Chapter 5: Local Management 5.21.1 Displaying RMON Statistics To display the statistics for any index, proceed as follows: Use the arrow keys to highlight the Index [nn] field at the bottom of the screen. Press the SPACE bar to increment or press the DEL (delete) key to decrement the index number.
  • Page 119 Welcome to Network Tools -> help Commands Available to the User: Built in Commands: bridge netstat ping show traceroute telnet soft-reset atm_stp_state SPECIAL: done, quit, or exit - Exit from the Network Tools. For help with a specific command, type 'help <command>'. ->...

  • Page 120: Built-In Commands

    Chapter 5: Local Management The conventions used in describing the commands in Network NOTE Tools are as follows: Arguments enclosed by [ ] are required. Arguments enclosed by < > are optional. In the following command examples, information entered by the user is in shown in bold Helvetica font To abort the output or interrupt a process, press the CONTROL key and c key simultaneously, designated as ^C here.

  • Page 121: Mac Address

    You can specify the arp command with one of the following options: Options: Example: -> arp -a # Interface # 31 # 22 -> arp -d 1 122.144.52.68 -> arp -s 1 22.44.2.3 00:00:0e:03:1d:3c -> arp -f 2M46-04R/2M46-04RDC User’s Guide Each ARP cache entry lists the network interface that the device is connected to, the device’s network address or IP address, the...
  • Page 122 Chapter 5: Local Management bridge: Syntax: Description: Options: Example: -> bridge disable all -> bridge enable 1 -> bridge disable 1 defroute: Syntax: Description: Options: Example: -> defroute 2 147.152.42.32 #Default route is 147.152.42.32 on interface 2 ->defroute #Default route is 147.152.42.32 on interface 2 ->defroute delete #Default route is not currently set.
  • Page 123 netstat: Syntax: Description: Options: Example: -> netstat -i Interface + Description # 1 (ethernet -csmacd) # 2 (ethernet - csmacd) -> netstat -r Destination Next-hop # Default Route DirectConnection # 134.141.0.0 DirectConnection ping: Syntax: Description: Options: Example: -> ping 122.144.40.10 122.144.40.10 is alive 2M46-04R/2M46-04RDC User’s Guide netstat [option]...
  • Page 124 Chapter 5: Local Management reset: Syntax: Description: The Network Tools connection to the device will be terminated NOTE upon execution of this command. Options: Example: -> reset RESET: Are you *SURE*? ->Y show: Syntax: Description: Options: 5-76 reset This reset command initiates a hardware reset of the device.
  • Page 125 Example: -> show Appletalk interfaces AdminStatus # Interface enabled disabled -> show IP ARP MediaType # Interface 3 (dynamic) 3 (dynamic) # Number of valid entries: 2 traceroute: Syntax: Description: Options: Example: -> traceroute 122.144.11.52 # next-hop[0] : 122.144.60.45 # next-hop[1] : 122.144.8.113 # next-hop[2] : 122.144.61.45 # 122.144.11.52 is alive : 3 hops away.
  • Page 126 Chapter 5: Local Management soft-reset: Syntax: Description: The Network Tools connection to the device will be terminated NOTE upon execution of this command. Options: Example: -> soft-reset RESET: Are you *SURE* -> Y telnet: Syntax: Description: Options: 5-78 soft-reset This command restarts the software image, which restores the user configuration settings from NVRAM.
  • Page 127 Example: link_trap: Syntax: Description: Options: Example: -> link_trap status LINK TRAP STATUS: Port 1 is ENABLED Port 3 is ENABLED -> link_trap disable 2 Link traps have been DISABLED on port 2 -> link_trap disable all Link traps have been DISABLED on all ports (1-4) ->...

  • Page 128: Special Commands

    Chapter 5: Local Management atm_stp_state: The atm_stp_state command is only available if an NOTE HSIM-A6DP is installed in the device. The device must be manually reset for this setting to take effect. Syntax: Description: Options: Example: 5.22.2 Special Commands done, quit, exit: Syntax: Description: Options:...

  • Page 129: A.3 Electrical Specifications

    This appendix provides operating specifications for the Cabletron Systems 2M46-04R and 2M46-04RDC, where specified. Cabletron Systems reserves the right to change these specifications at any time without notice. DEVICE SPECIFICATIONS Processor: Dynamic Random Access Memory (DRAM): FLASH Memory: PHYSICAL PROPERTIES Dimensions: Weight (Unit) 2M46-04R: Weight (Unit) 2M46-04RDC:...

  • Page 130: A.4 Environmental Requirements

    Appendix A: Specifications Line Input Range Volts (V) 36-72 Vdc ENVIRONMENTAL REQUIREMENTS Operating Temperature: Storage Temperature: Operating Relative Humidity: INPUT/OUTPUT PORTS Slots for optional ports 1 and 2: Slot for optional HSIM ports: Table A-2 2M46-04RDC Input Current Amperes (A) 4.0 A 5°C to 40°C (41°F to 104°F) -30°C to 73°C (-22°F to 164°F)

  • Page 131: A.7 Regulatory Compliance

    COM PORT/PIN ASSIGNMENTS The COM port is a serial communications port that supports Local Management or connection to a UPS. assignments. Table A-3 COM Port Pin Assignments Signal Name Transmit Data (XMT) Data Carrier Detect (DCD) Data Set Ready (DSR) Receive Data (RCV) Signal Ground (GND) Data Terminal Ready (DTR)
  • Page 132 Appendix A: Specifications 2M46-04R/2M46-04RDC User’s Guide...

  • Page 133: B.1 Fe-100Tx

    111 ohms. The slide switch on the FE-100TX determines the crossover status of the cable pairs. If the switch is on the over. If the switch is on the = side, the pairs are not internally crossed over. Figure B-1 shows the pinouts for the FE-100TX in both positions.

  • Page 134: B.2 Fe-100Fx

    Appendix B: FE-100TX, FE-100FX, and FE-100F3 Specifications FE-100FX The FE-100FX shown in supports multimode fiber optic cabling. Specifications for the FE-100FX are listed in Table B-1, below. Cable Type 50/125 µm fiber optic 62.5/125 µm fiber optic 100/140 µm fiber optic The transmitter power levels and receive sensitivity levels listed NOTE are peak power levels after optical overshoot.

  • Page 135: B.3 Fe-100F3

    FE-100F3 The FE-100F3 shown in supports single mode fiber optic cabling. Specifications for the FE-100F3 are listed in Table B-2, below. Cable Type 8/125 µm fiber optic 12.5/125 µm fiber optic The transmitter power levels and receive sensitivity levels listed NOTE are peak power levels after optical overshoot.
  • Page 136 Appendix B: FE-100TX, FE-100FX, and FE-100F3 Specifications 2M46-04R/2M46-04RDC User’s Guide...

  • Page 137: C.1 Required Tools

    OPTIONAL INSTALLATIONS AND MODE SWITCH BANK SETTINGS ONLY QUALIFIED SERVICE PERSONNEL SHOULD ATTEMPT THE FOLLOWING PROCEDURES. NUR QUALIFIEZIERTE SERVICE PERSONNAL DIE FOLGENDE PROCEDURE FOLGEN SOLLTEN. SOLAMENTE PERSONAL CALIFICADO DEBE INTENTAR ESTE PROCEDIMIENTO. The top cover must be removed to gain access to the mode bank switches and to install the Fast Ethernet Interface Modules and the High Speed Interface Modules.

  • Page 138: Removing The Chassis Cover

    Appendix C: Optional Installations and Mode Switch Bank Settings REMOVING THE CHASSIS COVER This section describes how to remove the 2M46-04R chassis cover. DO NOT REMOVE THE COVER FROM THE 2M46-04R WHILE POWER IS APPLIED TO THE UNIT. CAUTION THIS UNIT MAY HAVE MORE THAN ONE POWER SUPPLY CORD.

  • Page 139: Setting The Mode Switch

    Figure C-1 Removing the Chassis Cover C.2.1 Setting the Mode Switch Figure C-2 shows the location of the mode switches and the switch settings for normal operation. These switches are set at the factory and do not need to be changed. 2M46-04R/2M46-04RDC User’s Guide...
  • Page 140 Figure C-2 2M46-04R Mode Switch Location/Component Layout Switch definitions and positions are as follows: • Switches 1 through 4 – For Cabletron Systems use only. • Switch 5 – COM Port Autobaud. The default (OFF) position enables Autobaud sensing on the COM port for Local Management sessions.
  • Page 141 • Switch 7 – Clear NVRAM. Changing the position of this switch resets NVRAM on either the next power-up or the next operation of the front panel RESET button. All user-entered parameters, such as the IP address, device names, etc., are reset to the factory default settings.

  • Page 142: Installing Optional Fast Ethernet Interface Modules

    Appendix C: Optional Installations and Mode Switch Bank Settings INSTALLING OPTIONAL FAST ETHERNET INTERFACE MODULES Figure C-3 shows the locations of the Fast Ethernet Interface Module connectors on for ports 1 and 2 and an optional High Speed Interface Module installed in port HSIM 1.
  • Page 143 Installing Optional Fast Ethernet Interface Modules The installation instructions for the High Speed Interface NOTE Modules are in the associated HSIM user’s guide. To install a Fast Ethernet Interface Module in port slot 1 or 2, proceed as follows: The FE-100F3 uses Class 1 lasers. Do not use optical instruments to view the laser output.
  • Page 144 Appendix C: Optional Installations and Mode Switch Bank Settings Coverplate H S I M Figure C-4 Coverplate Removal Remove the screw from the rear standoff. Save the screw. When installing an FE-100FX or FE-100F3 module into the 2M46-04R, remove the rubber plug on the module before CAUTION proceeding.
  • Page 145 Installing Optional Fast Ethernet Interface Modules H S I M Figure C-5 Installing the Fast Ethernet Interface Module Press down firmly on the Fast Ethernet Interface Module until the pins slide all the way into the motherboard connector. Ensure that the Fast Ethernet Interface Module seats flush on the standoffs.
  • Page 146 Appendix C: Optional Installations and Mode Switch Bank Settings C-10 2M46-04R/2M46-04RDC User’s Guide...
