TPIM-T2
The TPIM-T2 is an RJ45 connector that supports UTP cabling.
Figure 2-4 shows pinouts for Ring Out and Ring In applications.
TPIM-T4
The TPIM-T4 is an RJ45 connector that supports STP cabling.
Figure 2-5 shows pinouts for Ring Out and Ring In applications.
REQUIREMENTS/SPECIFICATIONS
1 2 3 4 5 6 7 8
RING OUT
1. Not Used
2. Not Used
3. Receive -
4. Transmit +
5. Transmit -
6. Receive +
7. Not Used
8. Not Used

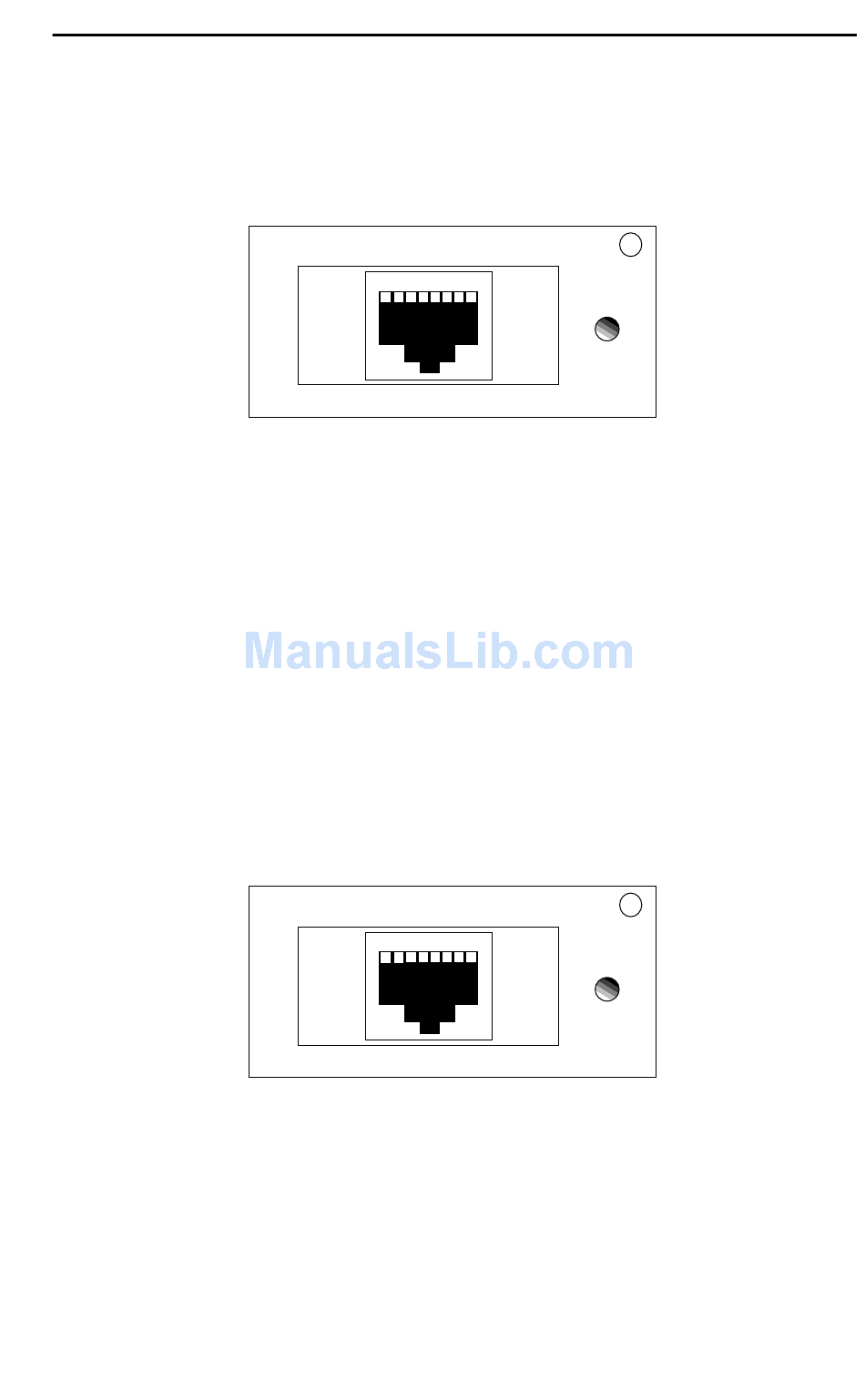

Figure 2-4. TPIM-T2 Pinouts
1 2 3 4 5 6 7 8
RING OUT
1. Not Used
2. Not Used
3. Receive -
4. Transmit +
5. Transmit -
6. Receive +
7. Not Used
8. Not Used
Figure 2-5. TPIM-T4 Pinouts
LNK
TPIM-T2
RING IN
1. Not Used
2. Not Used
3. Transmit -
4. Receive +
5. Receive -
6. Transmit +
7. Not Used
8. Not Used
LNK
TPIM-T4
RING IN
1. Not Used
2. Not Used
3. Transmit -
4. Receive +
5. Receive -
6. Transmit +
7. Not Used
8. Not Used
Page 2-13
