Mounting the Switch on a Wall

The switch ships with two (2) multi-position mounting ears and four (4)
mounting screws.
The mounting screws are used to attach the mounting ears to
the switch. Once the ears are attached to the switch, you will
need to provide appropriate screws to mount the switch to the
wall.
Figure 2-1 shows the orientation of the mounting ears for attaching the
ears to the switch for a wall mount application. Be sure that the wall
surface can safely support the switch.
Do the following:
1. Mount one of the ears to the switch using two (2) of the supplied
screws. Repeat this step for the other side of the switch.
2. Mount the switch to the wall using appropriate screws.

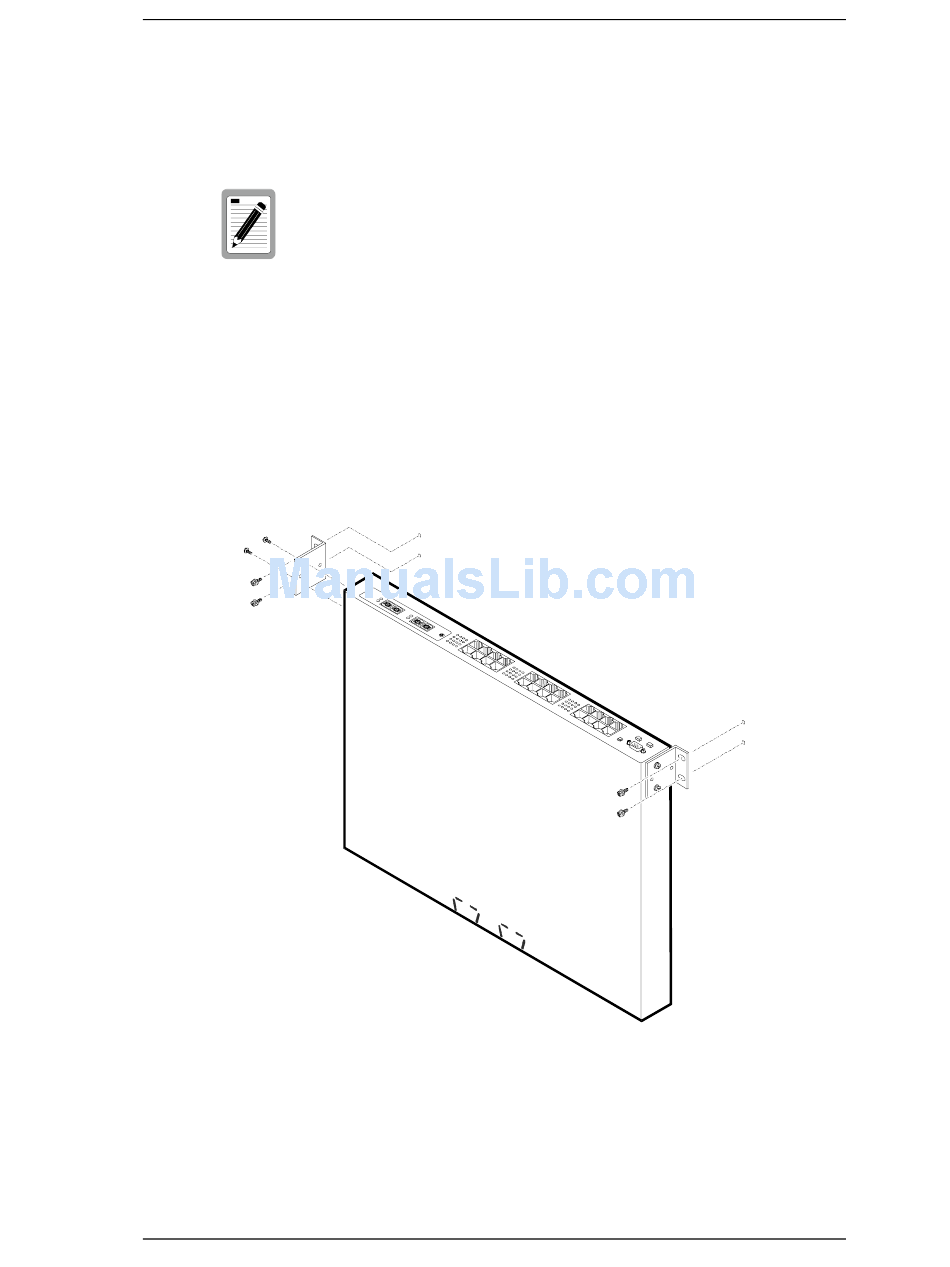

Figure 2-1. Mounting the Switch on a Wall
9032785 Installation 17
