Front Panel

Figure 1-1 shows the front panel of the ELS100-24TXM. Table 1-1 defines
the ELS100-24TXM front panel components.

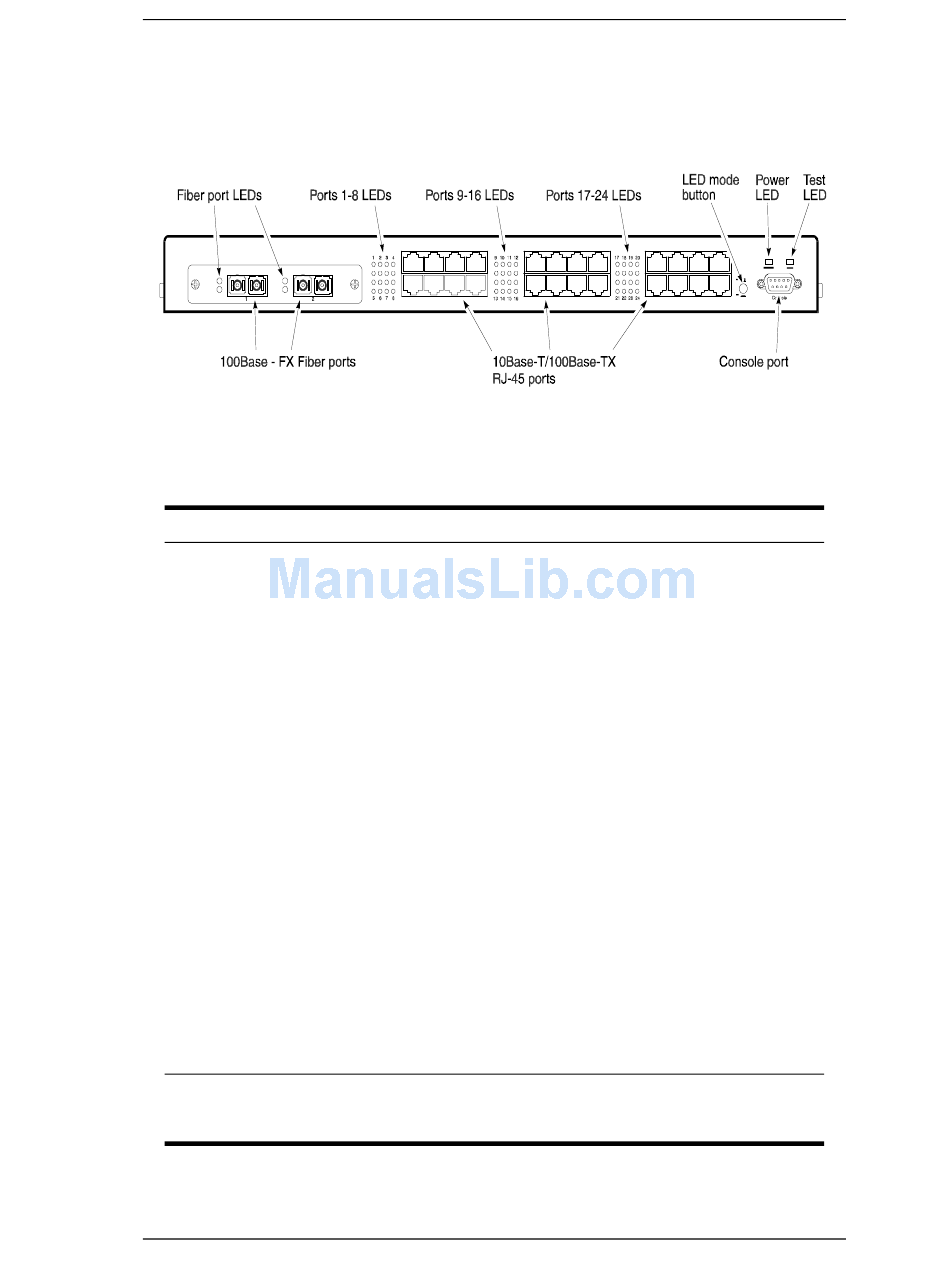

Figure 1-1. ELS100-24TXM Front Panel
Name
100Base-FX Fiber ports
(Ports 1 and 2)*
Fiber Ports 1 and 2
LEDs*
10Base-T/100Base-TX
RJ-45 ports (Ports 1-24)*
Ports 1-24 RJ-45 LEDs*
LED mode button
Power LED
Test LED
Console port
* There are 24 total ports on the ELS100-24TXM switch. When the fiber module
is installed, these ports become ports 1 and 2, used for fiber connections.
Ports 1 and 2 RJ-45 connectors then become disabled.
9032785
Table 1-1. Front Panel Components
Function
Fiber ports using SC fiber connectors for fiber uplink
modules (see Table 2-3 for a list of available uplink
modules).
Indicates Link and Activity information (see Table 1-2
for details).
Copper ports using RJ-45 port connectors. All ports
are wired MDI-X.
Indicates Link, Activity, Speed and Duplex information
(see Table 1-2 for details).
Button used to switch RJ-45 port LEDs between Link/
Activity mode and 100M/Full Duplex mode. This button
has no affect on fiber port LEDs.
Lights steady green to indicate power is supplied to the
switch. Off indicates no power is supplied to the switch.
Lights steady green after a reset and remains on until
successful completion of power-on self tests. Off indi-
cates a successful completion of the power-on self
tests.
Female DB-9 connector configured as a null modem
connection for serial out-of-band management using
the console menus.
