10. MAINTENANCE & SERVICE >
The building owner is responsible for keeping the Flue Gas Outlet and Combustion Air
Inlet terminations free from snow, ice, or other potential blockages and for scheduling
water heater maintenance and service as described in this section. FAILURE TO
PROPERLY MAINTAIN THIS PRODUCT MAY RESULT IN SERIOUS INJURY OR DEATH.

BURNER CLEANING [AT MINIMUM, PERFORM ANNUALLY]:

1. Turn off gas supply at external manual gas shut-off valve.
2. Turn off main power at external service switch.
3. Remove syncFURNACE OD front cover.
4. Identify, mark & disconnect the spark igniter and flame
sensor ignition cables and spark igniter ground wire.
5. Disconnect main power cable from combustion blower.
6. Disconnect control cable from combustion blower.
7. Inside product, disconnect the gas supply line to the gas valve.
8. Remove combustion air intake tube from gas-valve shroud.

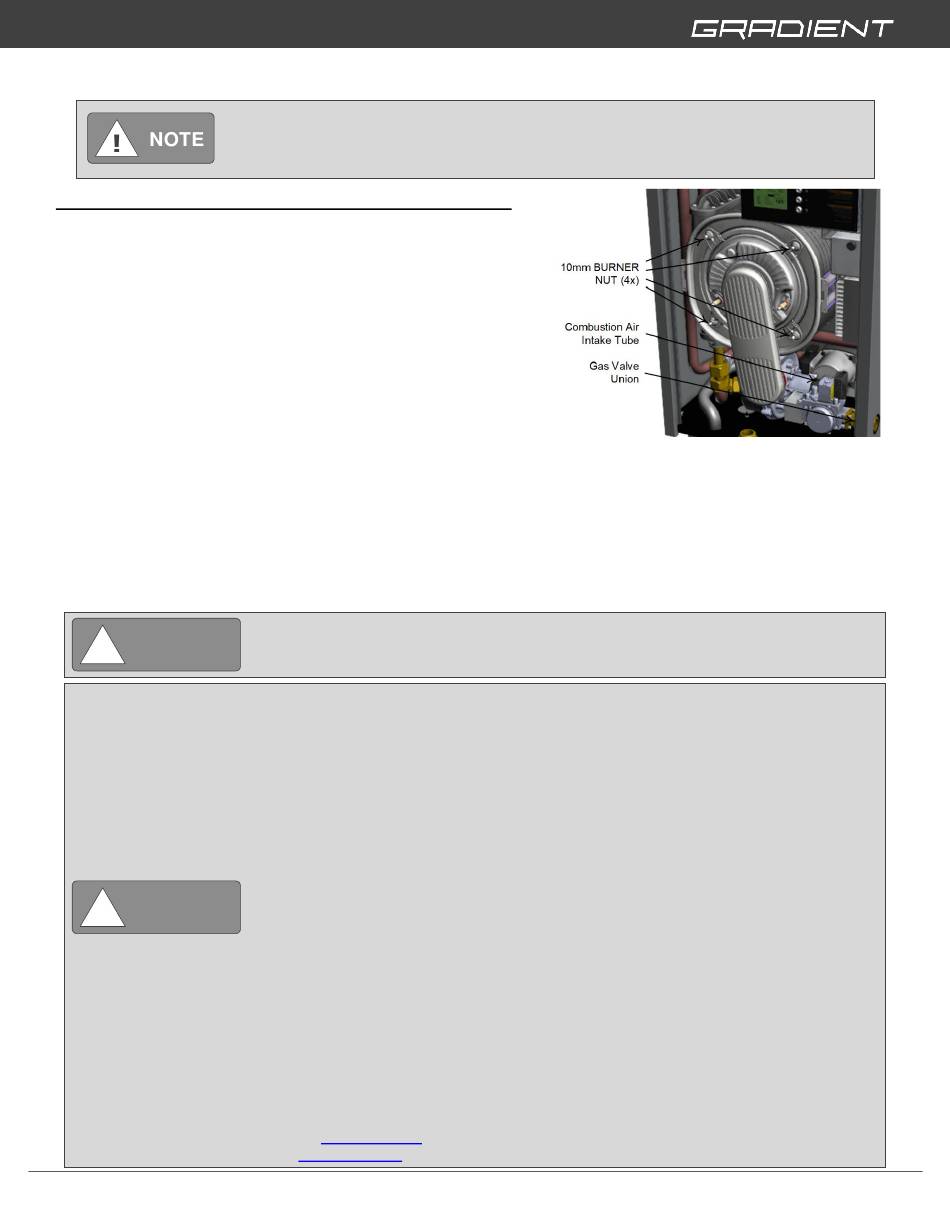

9. Remove 10mm burner nuts (4x).
10. Pull burner assembly (burner door, blower & gas-valve) away from heat exchanger to remove. Be
careful not to damage insulation disc and perimeter gasket on burner door – replace if damaged.
11. Inspect burner cylinder for damage or extensive wear. Replace if any damage or wear is shown.
12. Using a vacuum with nylon brush and high-efficiency filter remove any dust and debris from burner
surface – be extremely careful not to damage burner metal surface and door refractory.
13. Repair any issues that are discovered.
14. Continue on to Clean Combustion Chamber as per below instructions.
!
WARNING
!
WARNING
syncFURNACE OD Instruction & Installation Manual – Rev 09
Replace any gaskets, seals or refractory that shows any signs of damage. DO NOT
REUSE. Failure to follow these instructions may result in fire, property damage or death.
Refractory Ceramic Fibers (RFC)
Personal Protective Equipment Required – Read the following warnings and handling
instructions carefully before commencing any service work in the combustion chamber.
The insulating material on the inside of the burner door and at the back of the
combustion chamber contain Refractory Ceramic Fibers and should not be handled
without personal protective equipment.
POTENTIAL CARCINOGEN – Use of Refractory Ceramic Fibers in high temperature
applications (above 1000°C) can result in the formation of Crystalline Silica
(cristobalite), a respirable silica dust. Repeated airborne exposure to crystalline silica
dust may result in chronic lung infections, acute respiratory illness, or death. Crystalline
silica is listed as a (potential) occupational carcinogen by the following regulatory
organizations: International Agency Research on Cancer (IARC), Canadian Centre for
Occupational Health and Safety (CCOHS), Occupational Safety and Health Administration
(OSHA) and National Institute for Occupational Safety and Health (NIOSH). Failure to
comply with handling instructions may result in serious injury or death.
CRYSTALLINE SILICA – Certain components confined in the combustion chamber may
contain this potential carcinogen. Improper installation, adjustment, alteration, service
or maintenance can cause property damage, serious injury (exposure to hazardous
materials) or death. Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
See APPENDIX D for handling instructions for Refractory Ceramic Fibers (RCF).
For more information on Refractory Ceramic Fibres, the risks, recommended handling
procedures and acceptable disposal practices contact –
Canada – www.ccohs.ca (Canadian Centre for Occupational Health and Safety)
USA – www.osha.gov (US Gov Occupational Safety and Health Administration)
Pg. 59 of 81
