Gradient syncFURNACE mOD-200 Installation & Operation Manual page 13

syncFURNACE OD Instruction & Installation Manual – Rev 09

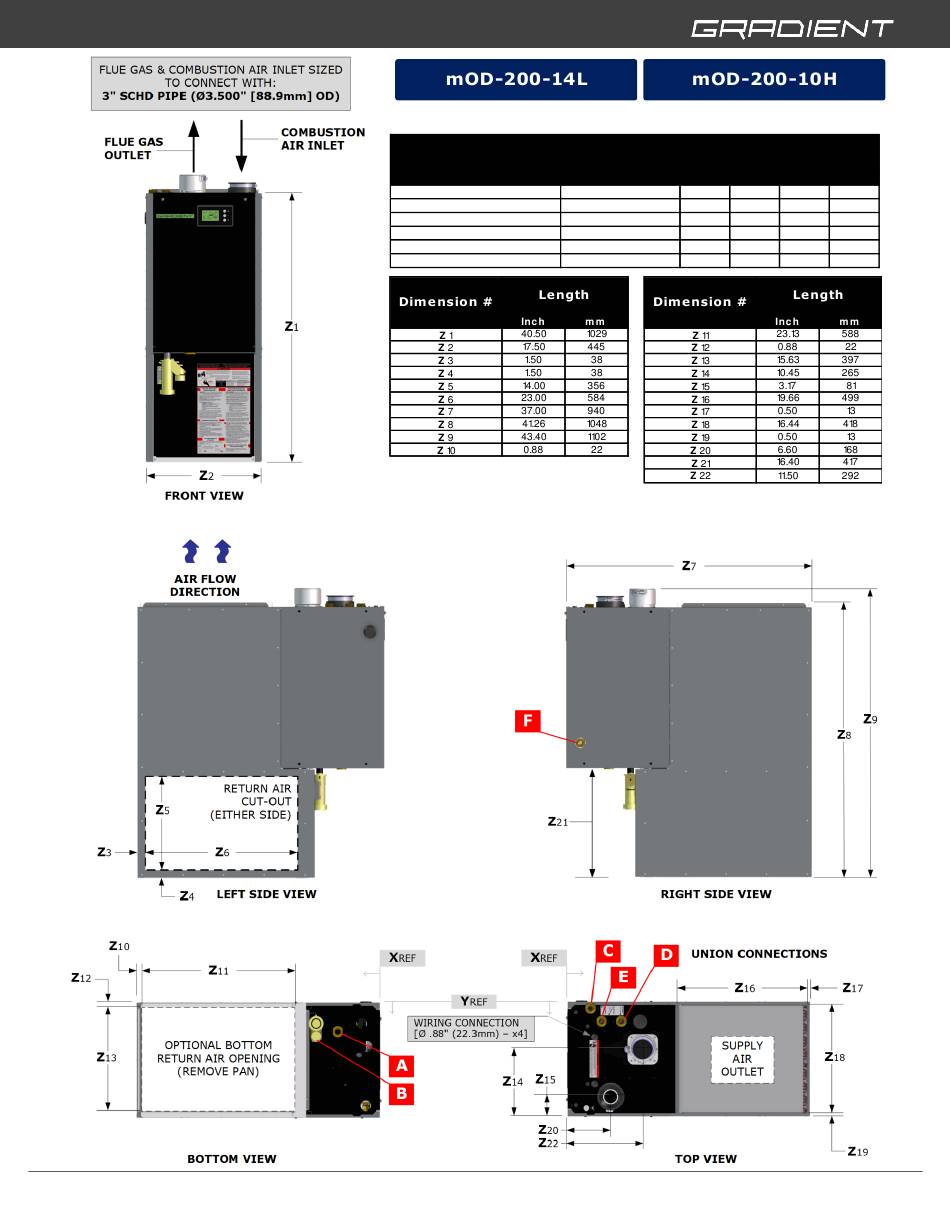

Pipe Connection
Specification
A - INTERNA L P RV TO DRA IN
B - CONDENSA TE TO DRA IN
C - COLD WA TER [IN]
D - HOT WA TER [OUT]
E - RE-CIRC LINE [IN]
F - GA S
Location
Thread
↔
Xref
Inc h m m
3/4" NP T FEM A LE 6.44 1 63
7/8" CORR HOSE 9.63 244
3/4" NP T FEM A LE 3.50 89
3/4" NP T FEM A LE 8.21 209
3/4" NP T FEM A LE 5.1 8 1 32
1 /2" NP T FEM A LE 2.1 8 55
Location
↕
Yref
Inc h m m
4.41 1 1 2
5.1 3 1 30
1 .04 26
3.00 76
3.00 76
20.20 51 3
Pg. 13 of 81
