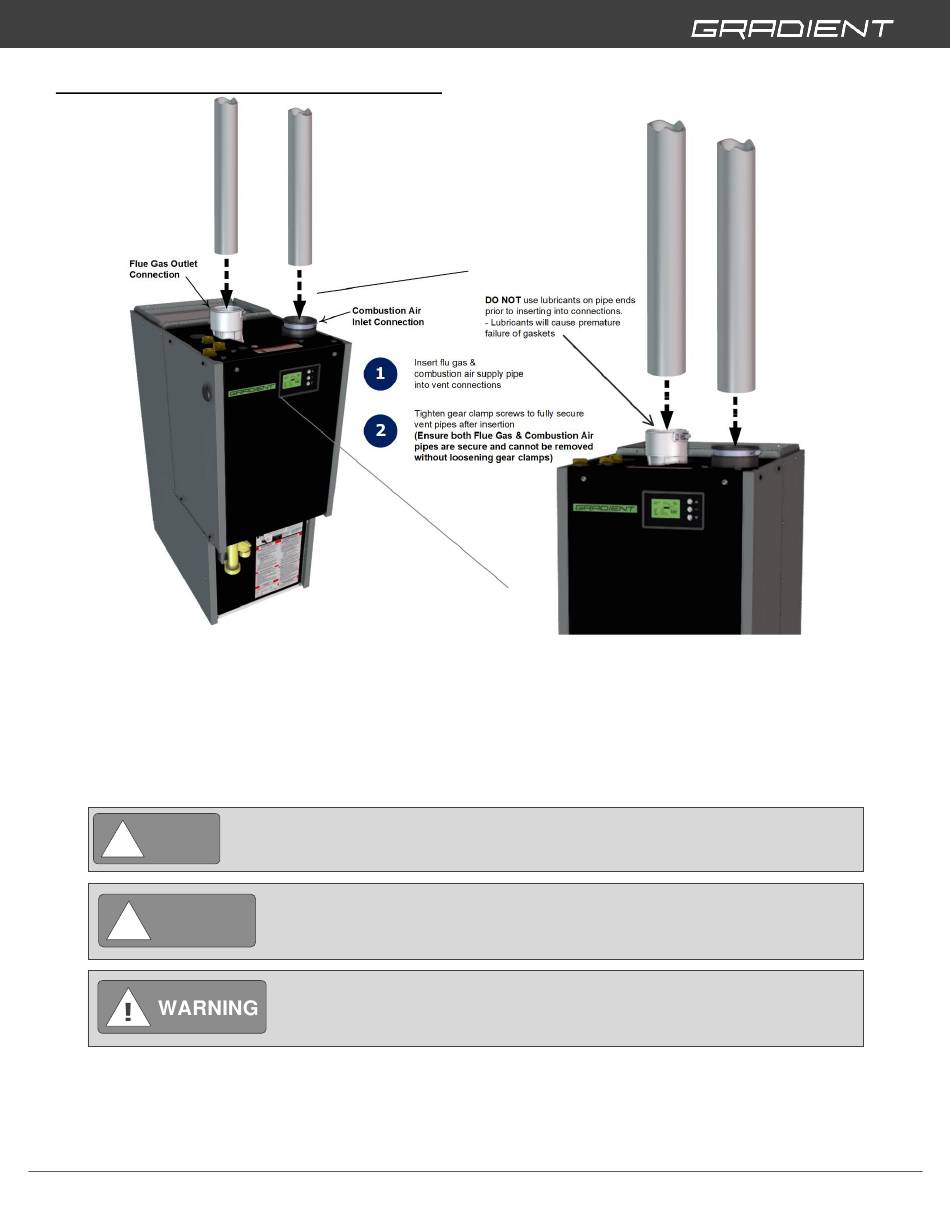

CONNECTING VENT PIPE TO SYNCFURNACE OD:

1. The installation of a swing joint is highly recommended to attain slope in horizontal runs in the Flue
Gas Venting system. (For both Direct Vent and Room Dependent Combustion Air Supply
installations).
2. DO NOT apply primer or cement to the pipe ends that are inserted into the syncFURNACE OD
connections - Use gear clamps to secure vent connections in place after insertion.
3. DO NOT use lubricants on pipe ends prior to inserting into connections. Lubricants will cause
premature failure of gaskets.
4. Burr ends of pipe before insertion to prevent sharp edges from cutting gaskets.
!
NOTE
!
DANGER
syncFURNACE OD Instruction & Installation Manual – Rev 09
In Canada the first three (3) feet (.92m) of vent pipe must be readily
accessible for inspection.
Both Flue Gas Outlet & Combustion Air Inlet Venting must be fully supported to
reduce strain on piping joints. Failure to follow these instructions may result
in damage, serious injury or death.
Ensure both Flue Gas and Combustion Air Supply vent pipes are properly
beveled prior to insertion into syncFURNACE OD. Failure to comply can cause
improper seating, flue gas leakage and eventual failure of sealing gaskets.
Pg. 22 of 81
