8. INSTALLATION >

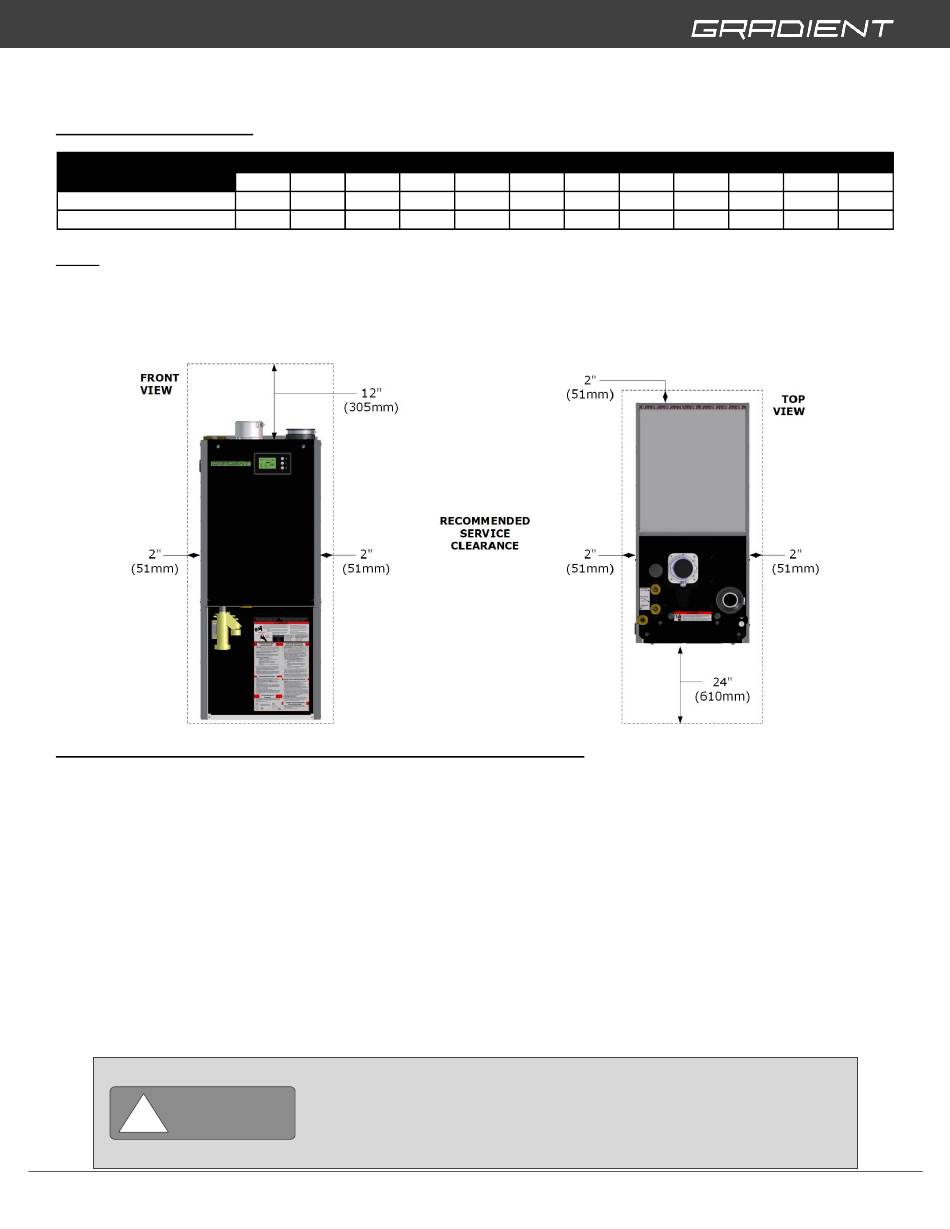

MINIMUM CLEARANCES:

Clearance Requiements
Minimum
Recommended for Service
Note:
1. It is highly suggested that Recommended for Service minimum clearance requirements are
maintained to ensure straight forward access for future product service / maintenance.
2. This product can NOT be installed on carpeting.
3. See venting installation instructions in this manual for required vent pipe clearances.
MECHANICAL ROOM & COMBUSTION AIR SUPPLY REQUIREMENTS:
1. Keep room free from and never store any flammable materials near product.
2. Room air and combustion air supply must be free of halogenated hydrocarbons at all times.
a. eg. Contained in paint solvents, spray cans, paints and detergents.
b. Avoid excessive dust.
3. Combustion air supply must be located so to avoid any contents of chlorine, ammonia, or alkali
agents. Installation near a swimming pool, washing machine, or laundry room will expose
combustion air to these contents and will cause premature failure of the heat exchanger and will
void product warranty.
4. Avoid installation in rooms that have continuously high levels of humidity
a. eg. Laundry rooms, indoor pool/hot tub rooms, farms and facilities with livestock manure
5. Avoid combustion air sources that can be contaminated with the following (but not limited to);
a. Fabric softeners, bleaches, detergents, cleaners, chemical fertilizers, herbicides, pesticides,
dust, methane gas, sawdust, chloride, fluoride, calcium chloride, fiber based insulation.
!
WARNING
syncFURNACE OD Instruction & Installation Manual – Rev 09
Front Back
Inch mm Inch mm
0 0 0 0
28 711 4 102
If these requirements are not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
DO NOT store or use gasoline or other flammable vapors and liquids in
Sides Top
Inch mm Inch
0 0 0
24 610 12
the vicinity of this or any other appliance
Bottom Vent Pipe
mm Inch mm Inch
0 0 0 0
305 0 0 1
mm
0
25.4
