The Reset Switch

The Reset switch is located under the top plastic tab as shown in Figure 2-3.

Use the reset switch to reset the module's processor, shutdown (power down) the

module, and/or restart the module.

• To reset the module's i960 processor, press the reset switch twice within three

seconds.

• To shut down the module, press and hold the reset switch for three or more

seconds.

• To restart the module, press the reset switch momentarily.

SNMP management may be used to disable this switch to enhance module

security.

2-8

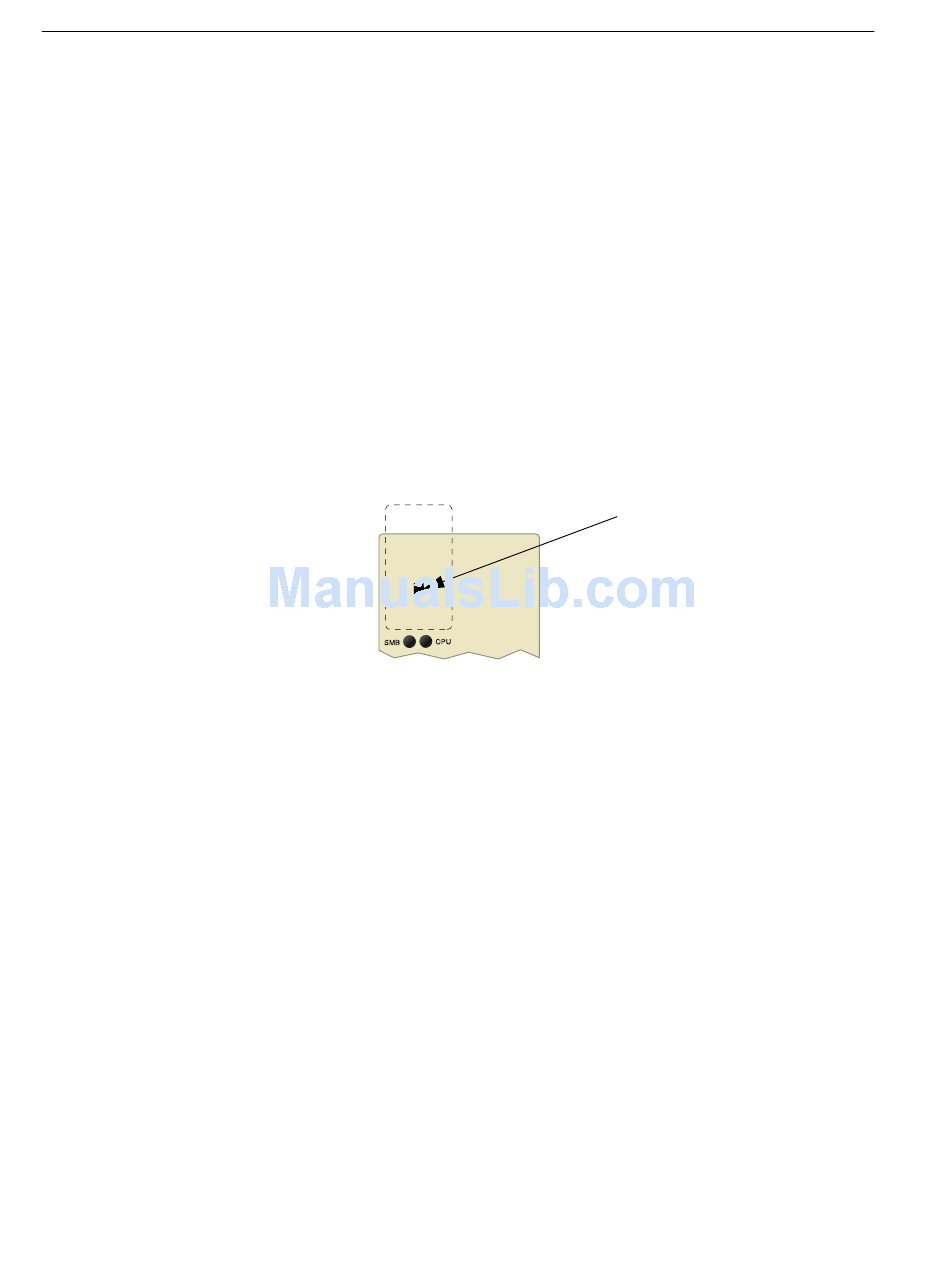

Figure 2-3. The Reset Switch

Reset Switch
