3. Ensure that the switch is level and attached securely to the DIN rail as shown in
Wall Mounting the NetVanta 1561i-04 Switch
Follow these instructions to mount the NetVanta 1561i-04 switch to a wall using the enclosed wall mounting kit:
1. Attach the wall-mounting brackets to the rear panel of the switch chassis and drive the provided screws into the metal screw receptacles on the back of the
switch as shown in Figure 5. Tighten the screws with a Phillips-head screwdriver to secure the brackets to the switch.
2. Using the mounting bracket as a template, mark the location on the wall to insert user-provided screw anchors. Screw anchors should be rated to support a
minimum of 2.2 pounds (1 kg) for the intended wall mount surface. Wall mount bracket dimensions are shown in
3. Follow the manufacturer's instructions to install the user-provided screw anchors. Install the screw anchors in the wall at the marks made in Step 2. Correctly
installed screw anchors should have the edge of the anchor lip protrude approximately 1/16-inch (1.6mm) from the wall.
4. Mount the switch on the wall by inserting user-provided 1/4-inch (5.4mm to 6.8mm) diameter screws through the recessed holes in the mounting bracket and
driving them into the user-provided screw anchors.
5. Ensure that the switch is attached securely to the wall.
617111561F1-13A
Figure

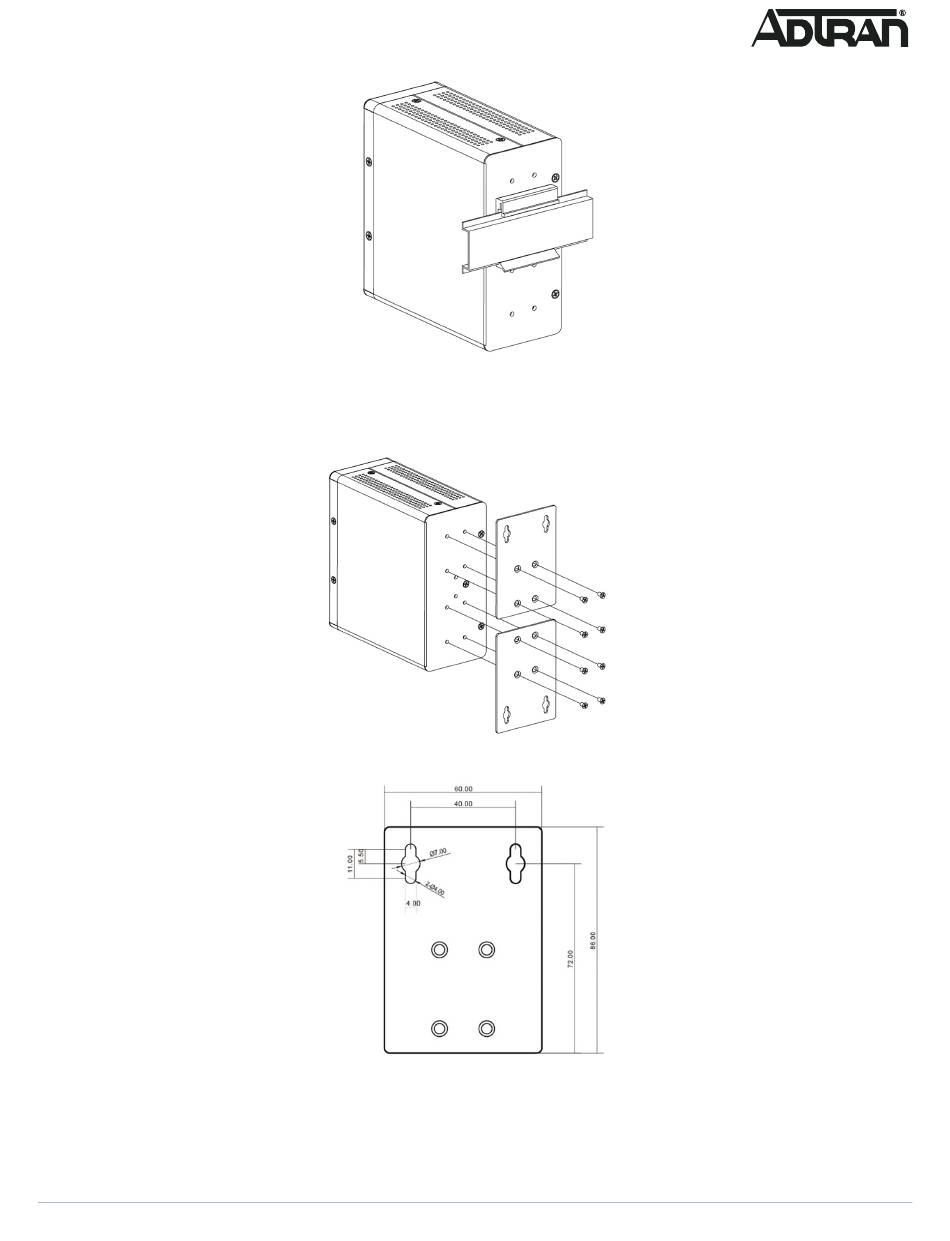

Figure 4. Switch Securely Attached to DIN Rail
Figure 5. Attach Wall-mount Brackets to Switch
Figure 6. Wall Mount Bracket Dimensions
4.
Figure 6.
3
