Quick Start
Guide
Overview
f
WARNING!
Read all warnings, cautions, notes and installation instructions before installing or servicing this equipment.

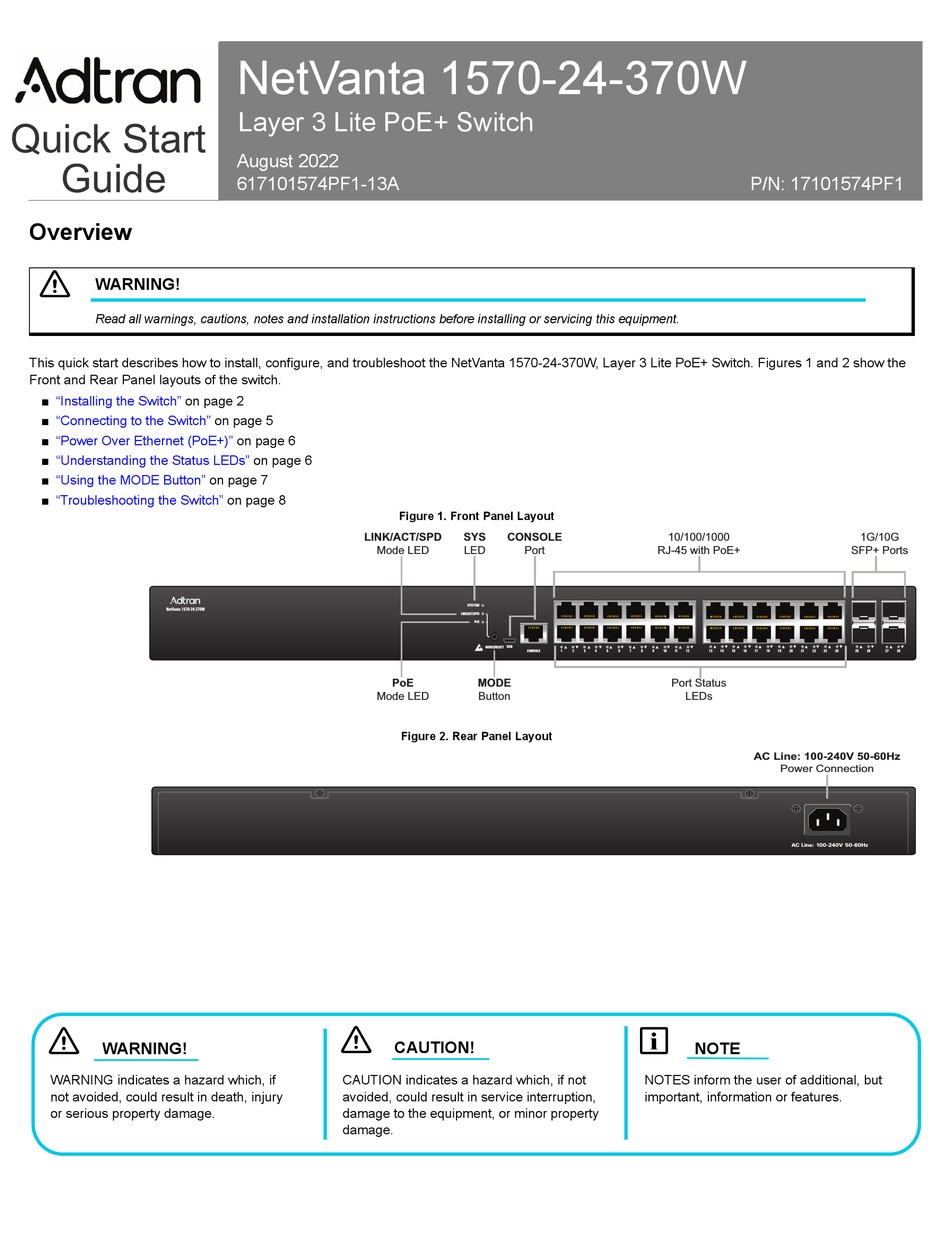

This quick start describes how to install, configure, and troubleshoot the NetVanta 1570-24-370W, Layer 3 Lite PoE+ Switch. Figures 1 and 2 show the
Front and Rear Panel layouts of the switch.
■
"Installing the Switch"
on page 2
■
"Connecting to the Switch"
■
"Power Over Ethernet (PoE+)"
■
"Understanding the Status LEDs"
■
"Using the MODE Button"
■
"Troubleshooting the Switch"
NetVanta 1570-24-370W
f
WARNING!
WARNING indicates a hazard which, if
not avoided, could result in death, injury
or serious property damage.
NetVanta 1570-24-370W
Layer 3 Lite PoE+ Switch
August 2022
617101574PF1-13A
on page 5
on page 6
on page 6
on page 7
on page 8
LINK/ACT/SPD
Mode LED
Mode LED
f
CAUTION indicates a hazard which, if not
avoided, could result in service interruption,
damage to the equipment, or minor property
damage.
Figure 1. Front Panel Layout
SYS
CONSOLE
LED
Port
SYSTEM
LNK/ACT/SPD
PoE
USB
MODE/RESET
CONSOLE
1
PoE
MODE
Button
Figure 2. Rear Panel Layout
CAUTION!
P/N: 17101574PF1
10/100/1000
RJ-45 with PoE+
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Port Status
LEDs
g
NOTE
NOTES inform the user of additional, but
important, information or features.
1G/10G
SFP+ Ports
17
18
19
20
21
22
23
24
25
26
27
28
AC Line: 100-240V 50-60Hz
Power Connection
AC Line: 100-240V 50-60Hz
