Quick Start

Overview

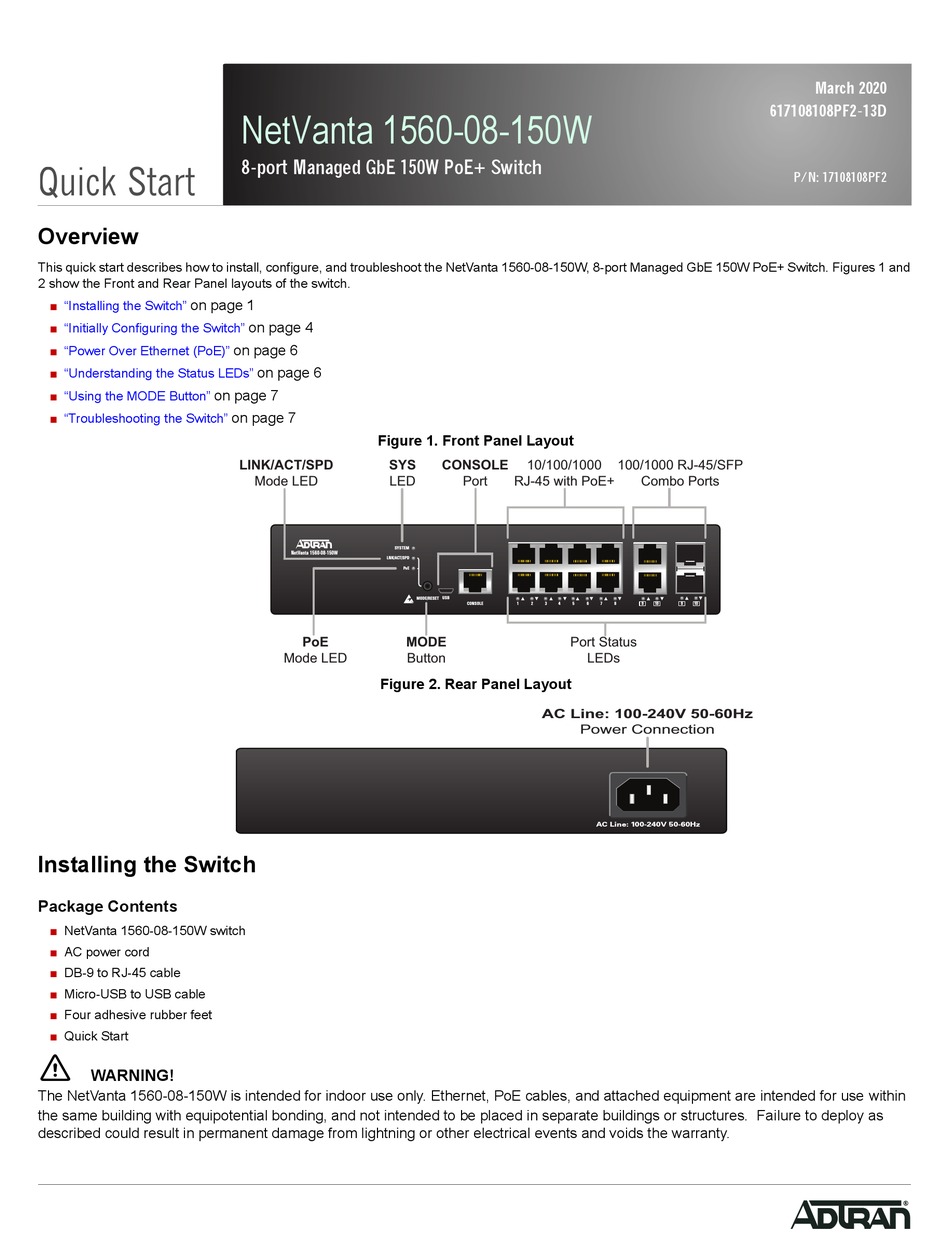

This quick start describes how to install, configure, and troubleshoot the NetVanta 1560-08-150W, 8-port Managed GbE 150W PoE+ Switch. Figures 1 and
2 show the Front and Rear Panel layouts of the switch.
on page 1
"Installing the Switch"
"Initially Configuring the Switch"
"Power Over Ethernet (PoE)"
"Understanding the Status LEDs"
on page 7
"Using the MODE Button"
"Troubleshooting the Switch"
Installing the Switch
Package Contents
NetVanta 1560-08-150W switch
AC power cord
DB-9 to RJ-45 cable
Micro-USB to USB cable
Four adhesive rubber feet
Quick Start
f
WARNING!
The NetVanta 1560-08-150W is intended for indoor use only. Ethernet, PoE cables, and attached equipment are intended for use within
the same building with equipotential bonding, and not intended to be placed in separate buildings or structures. Failure to deploy as
described could result in permanent damage from lightning or other electrical events and voids the warranty.

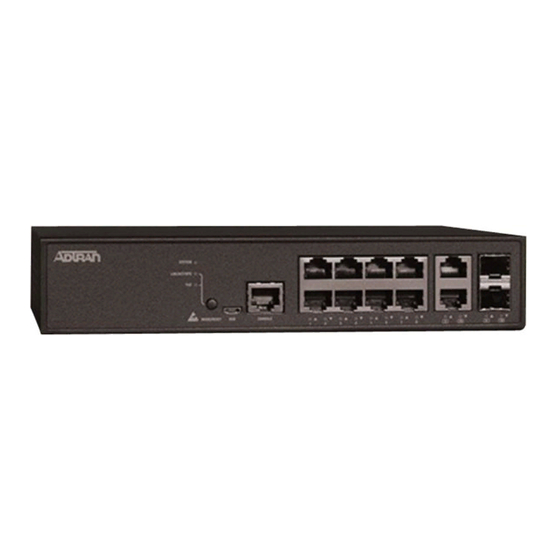

NetVanta 1560-08-150W
8-port Managed GbE 150W PoE+ Switch
on page 4
on page 6
on page 6
on page 7
Figure 1. Front Panel Layout
LINK/ACT/SPD
SYS
Mode LED
LED
SYSTEM
NetVanta 1560-08-150W
LNK/ACT/SPD
PoE
PoE
MODE
Mode LED
Button
Figure 2. Rear Panel Layout
CONSOLE
10/100/1000
Port
RJ-45 with PoE+
MODE/RESET
USB
CONSOLE
1
2
3
4
5
6
Port Status
LEDs
AC Line: 100-240V 50-60Hz
Power Connection
617108108PF2-13D
100/1000 RJ-45/SFP
Combo Ports
7
8
9
10
9
10
AC Line: 100-240V 50-60Hz
March 2020
P/N: 17108108PF2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetVanta 1560-08-150W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ADTRAN NetVanta 1560-08-150W

  • Page 1 Quick Start P/N: 17108108PF2 Overview This quick start describes how to install, configure, and troubleshoot the NetVanta 1560-08-150W, 8-port Managed GbE 150W PoE+ Switch. Figures 1 and 2 show the Front and Rear Panel layouts of the switch. on page 1 ■...
  • Page 2 Mounting in a 19-inch Rack NOTE Mounting brackets are not included. Mounting brackets may be ordered from ADTRAN using the following part number: 1700518F1 To mount the switch into a 19-inch rack, complete the following steps. 1. Attach the mounting brackets to both sides of the chassis. Insert the screws and tighten them with a screwdriver to secure the brackets.
  • Page 3 Figure 6. Install Screws in the Wall 2. Hang the switch on the screws and ensure that it is securely attached. Figure 7. Attaching the Switch to the Wall CAUTION! The NetVanta 1560-08-150W must be mounted in the face down orientation when wall mounted. 617108108PF2-13D...
  • Page 4 This product is intended for use with a Class 1 Laser module that complies with FDA 21 CFR 1040.10, 1040.11 and IEC 60825-1. For continued compliance with the above standards, only approved Class 1 Laser modules from an ADTRAN approved vendor list (located online at www.adtran.com) should be installed in this product.
  • Page 5 NOTE The factory default IP address of the switch is 10.10.10.1. The factory default subnet mask is 255.255.255.0. If the switch is connected to a Dynamic Host Control Protocol (DHCP) server, the server assigns the switch an IP address and the default 10.10.10.1 IP address is not configured. The DHCP server also assigns your PC the correct IP address to allow a connection on the same subnet as the switch.
  • Page 6 4. Open a VT100 terminal session using the following settings: 15200 baud; 8 data bits; no parity bits; 1 stop bit; and no flow control. Press <Enter> to activate the CLI. admin password 5. Login with the default user name ( ) and password ( Power Over Ethernet (PoE) The switch provides the PoE on the eight Ethernet ports shown in...
  • Page 7 Color State Description The port is enabled, has established a link to a connected device, and the connection speed is 1 Gbps.  Flashing The port is transmitting/receiving packets, and the connection speed is 1 Gbps. The port is enabled, has established a link to connected device, and the connection speed is 100 SFP Ports Mbps.
  • Page 8 2. This device must accept any interference received, including interference that may cause undesired operation. ■ Changes or modifications not expressly approved by ADTRAN could void the user's authority to operate this equipment. NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
