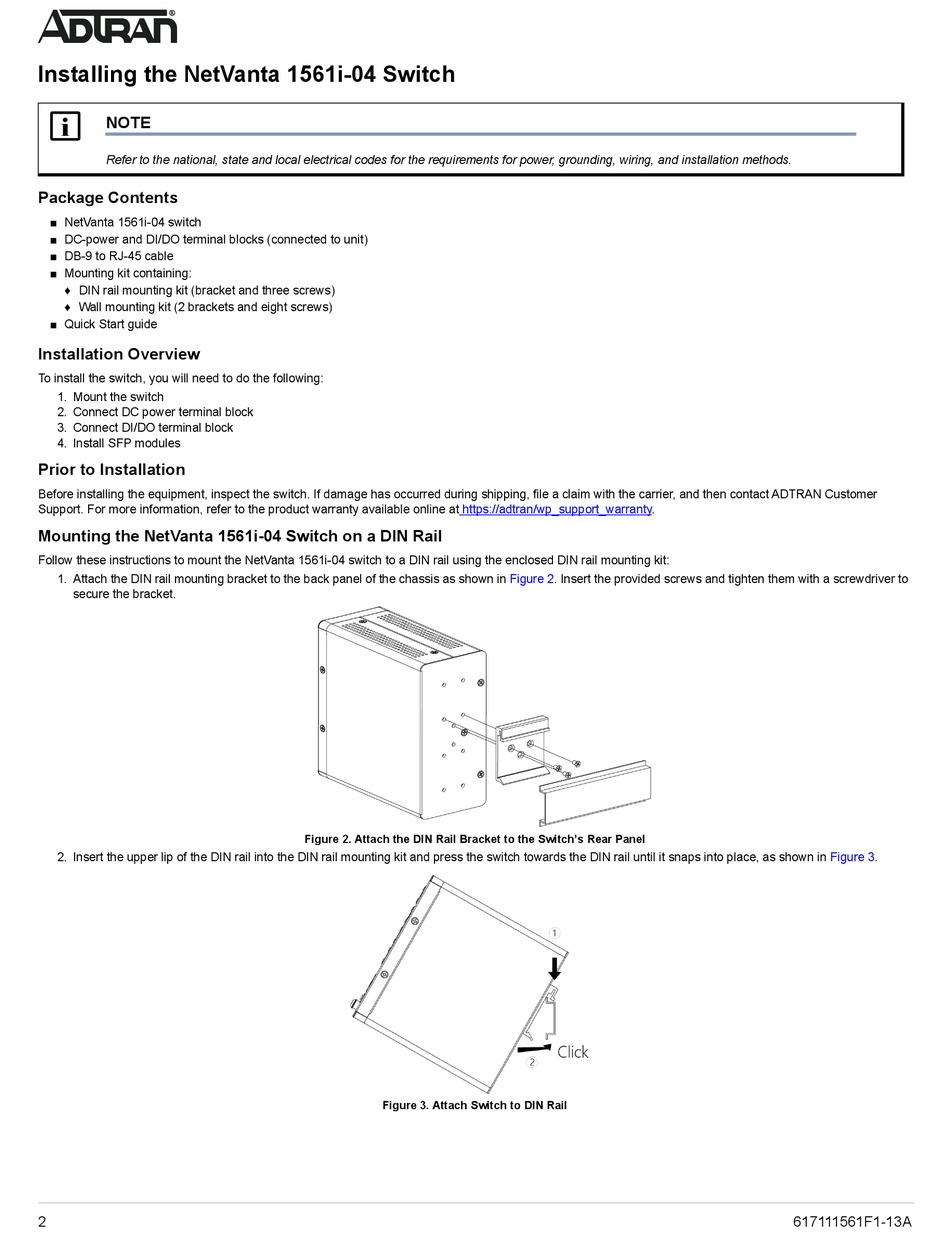

Installing the NetVanta 1561i-04 Switch
g
NOTE
Refer to the national, state and local electrical codes for the requirements for power, grounding, wiring, and installation methods.
Package Contents
■ NetVanta 1561i-04 switch
■ DC-power and DI/DO terminal blocks (connected to unit)
■ DB-9 to RJ-45 cable
■ Mounting kit containing:
♦ DIN rail mounting kit (bracket and three screws)
♦ Wall mounting kit (2 brackets and eight screws)
■ Quick Start guide
Installation Overview
To install the switch, you will need to do the following:
1. Mount the switch
2. Connect DC power terminal block
3. Connect DI/DO terminal block
4. Install SFP modules
Prior to Installation
Before installing the equipment, inspect the switch. If damage has occurred during shipping, file a claim with the carrier, and then contact ADTRAN Customer
Support. For more information, refer to the product warranty available online at https://adtran/wp_support_warranty.
Mounting the NetVanta 1561i-04 Switch on a DIN Rail
Follow these instructions to mount the NetVanta 1561i-04 switch to a DIN rail using the enclosed DIN rail mounting kit:
1. Attach the DIN rail mounting bracket to the back panel of the chassis as shown in
secure the bracket.
2. Insert the upper lip of the DIN rail into the DIN rail mounting kit and press the switch towards the DIN rail until it snaps into place, as shown in
2
Figure 2. Attach the DIN Rail Bracket to the Switch's Rear Panel
Figure 3. Attach Switch to DIN Rail
Figure 2. Insert the provided screws and tighten them with a screwdriver to
Figure 3.
