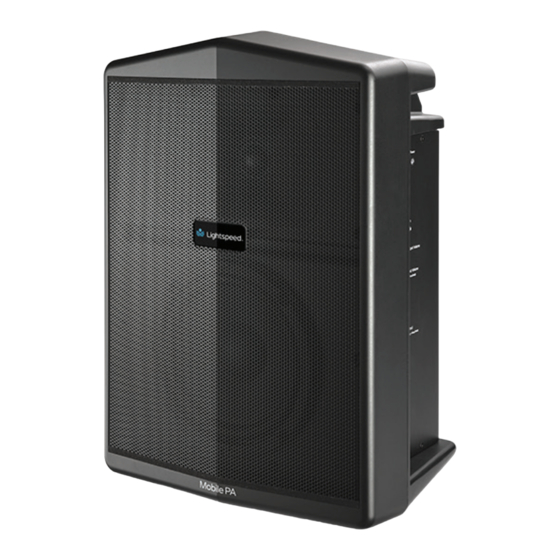

Lightspeed Mobile PA User Manual

Portable audio system
Hide thumbs Also See for Mobile PA:
Table of Contents

Advertisement

Quick Links

Download this manual
Portable Audio System
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Lightspeed Mobile PA

Summary of Contents for Lightspeed Mobile PA

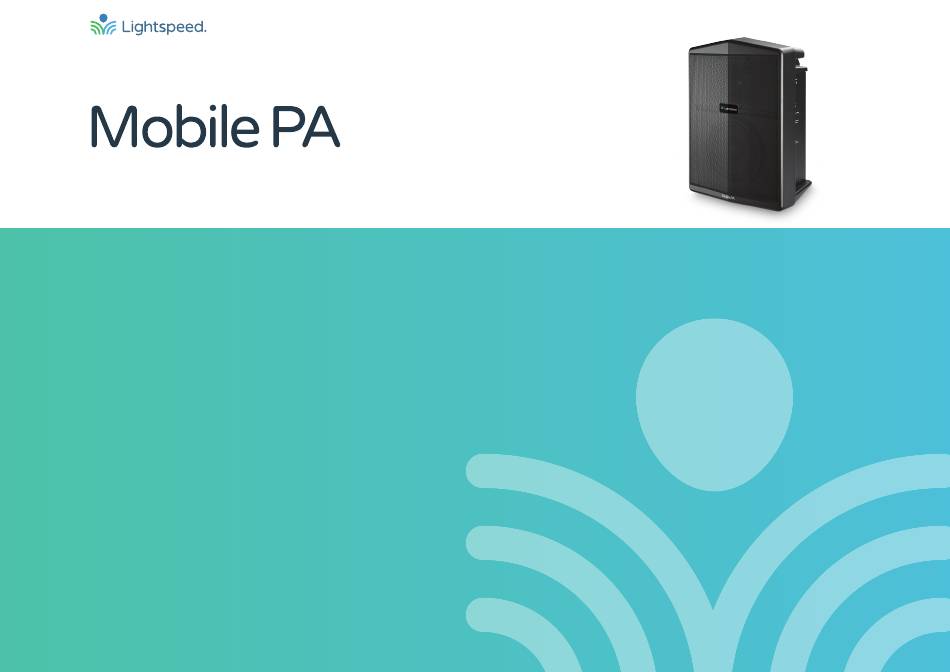

  • Page 1 Portable Audio System User Manual...

  • Page 2: Table Of Contents

    Media Connector Controls and Indicators Connecting Media Connector to Audio Pairing Mobile PA to Media Connector Connect Mobile PA to an Existing Audio System Adding Student Microphones to Mobile PA Output to Assistive Listening Device (ALD) Using Your Microphone as a Wireless Audio Link...

  • Page 3: Overview

    14. CAUTION: Risk of explosion if battery is replaced by any battery has been exposed to rain or moisture, does not operate other than Lightspeed Part # L3.7V. normally, or has been dropped. 15. When connected to AC power, the equipment must be connected 9.
  • Page 4 14. Mise en garde: Risque d’explosion si la batterie est remplacée par d’alimentation ou la fiche est endommagé, du liquide a été une batterie autre que Lightspeed partie #L3.7V. renversé ou des objets sont tombés dans l’appareil, l’appareil 15. Lorsqu’il est connecté à l’alimentation secteur, l’équipement a été...

  • Page 5: System Components

    Tone Level Input Output Media Connector Battery Pack Carry Strap Earset Mic for Flexmike To reduce potential safety issues, only the power supply (part# 24V-2.5A-NA) and battery pack (part# L14V) provided by Lightspeed Technologies should be used with Mobile PA.

  • Page 6: Side Panel Controls

    8. TONE CONTROL SELECTOR: Press to show tone level, use level control to turn bass up or down. Press and hold to for pairing to other Lightspeed devices such as Media Connector or Mobile PA companion speaker.
  • Page 7 • Switch in top position indicates Voice priority is ON • Switch in bottom position indicates Voice priority is OFF 2. MODE SWITCH: A second Mobile PA can operate as a companion speaker when switch is in the top position.

  • Page 8: Flexmike Controls And Connections

    8. LANYARD INTERFACE: Insert the lanyard into this hook to wear the Flexmike. 9. BATTERY: Rechargeable battery pack is field replaceable. 10. USB INPUT: Connect to a personal computer for two-way audio and software updates to send to Mobile PA. USB input can also be used for charging. BACK...

  • Page 9: Sharemike Controls And Connections

    White: solid = Mute 6. MICROPHONE VOLUME UP/DOWN 7. USB INPUT: Connect to a personal computer for two-way audio and software updates to send to Mobile PA. USB input can also be used for charging. 8. IR TRANSMITTER: For pairing to base unit BATTERY 9.

  • Page 10: Connecting The Power Supply

    NOTE: Microphones will only charge when Mobile PA is plugged into AC power. DC POWER SUPPLY AC POWER CORD To reduce potential safety issues, only the power supply (part# 24V-2.5A-NA) provided by Lightspeed Technologies should be used with Mobile PA.
  • Page 11 Install the Carrying Strap • Locate the carrying strap and insert both ends into the strap slots on top of the Mobile PA. • Press together the velcro section firmly to secure the strap. STRAP SLOTS PRESS VELCRO TOGETHER...

  • Page 12: Set-Up & Operation

    • If further fine tuning is required, you may need to adjust the Tone Control CONTROL on the side of the Mobile PA. • If the Flexmike is out of range, it will automatically shut off after 30 minutes of trying to reconnect. Once you are back in range, simply press and hold the power button for 1 second on the Flexmike to power it up and resume normal operation.

  • Page 13: Pairing Your Microphone

    Pairing your Microphone Your system is shipped with microphones and Mobile PA paired for quick and easy use. If you need to pair new components, follow this pairing process: From a powered off state, point Press and hold the power button...
  • Page 14 Set-Up Location FOR INDOOR USE • Find a location where the Mobile PA is facing the audience. • If this is not possible, other good locations are along either wall next to the speaker or in a corner. • Avoid placing Mobile PA behind or right next to where the person speaking.

  • Page 15: Companion Speaker

    SET UP A COMPANION SPEAKER 1. To set up a second Mobile PA as a companion speaker, slide the mode switch UP to companion mode on the back of the Mobile PA. 2. Press/hold the Tone button for 5 seconds on companions speaker to place it in pairing mode.

  • Page 16: Voice Priority

    • After Voice Priority has been triggered, it will stay active until Audio Input all microphones paired to the Mobile PA are muted. Once all microphones are muted, the system will immediately return to normal audio operation. NOTE: Voice priority does not pause the audio source, it only mutes it.

  • Page 17: Bluetooth Pairing To Personal Devices

    Bluetooth in companion mode will use the same name. BLUE WHEN PAIRING IS COMPLETE 7. Each Mobile PA will remember two Blutetooth mobile devices, and when more mobile devices are paired, the previously stored mobile device will be cleared.

  • Page 18: Media Connector Set Up And Operation

    • Do not enclose in a metal cabinet or in a location where the signal will be obstructed. The Media Connector does not require a direct line of sight NOTE: to Mobile PA. However it functions best when no obstructions are between the two devices. CONNECT TO POWER Power...

  • Page 19: Media Connector Controls And Indicators

    3. STATUS LIGHT: Base unit link and pair indicators. the back of the Media Connector. Solid white: Mobile PA is paired to the system Off: Mobile PA is not paired to the system 6. TONE SELECTOR: Tone adjustment affects all audio heard from the speaker.
  • Page 20 Media Connector Controls and Indicators (Optional) BACK PANEL 1. AUDIO INPUTS: 3.5mm stereo connectors for connecting classroom audio sources to be played through audio system. 2. AUDIO OUTPUTS: 3.5mm stereo connectors for connecting to an assisted listening device (ALD) or to a computer for recording. 3.

  • Page 21: Connecting Media Connector To Audio

    Audio can be connected using either a digital 2-way USB audio or analog audio. USB AUDIO Once connected, open computer sound setting to select “Lightspeed Audio” as the microphone and speaker. If locating and connecting to computer USB, Media Connector will default to digital USB audio (3.5mm analog audio ports will be disabled).
  • Page 22 The Media Connector is designed to integrate multiple audio sources quickly and easily. Video In PROJECTOR Access Video Out Audio Out Transmission TEACHER FLEXMIKE LAPTOP MOBILE PA Access Transmission Audio In Video Out Audio Out Power Status Media Media Connector...

  • Page 23: Pairing Mobile Pa To Media Connector

    • If after 30 seconds the status light blinks rapidly, you will need to start the on Mobile PA will blink for 30 pairing process again. seconds. • Note: Pairing will fail if there is already an Mobile PA companion or another Media Connector paired and connected to the Mobile PA TONE SELECTOR STATUS LIGHT...

  • Page 24: Connect Mobile Pa To An Existing Audio System

    Connect Mobile PA to an Existing Audio System EXISTING LEARNING TEACHER SPACE SPEAKERS MICROPHONE Access Transmission Access Link CONNECT MOBILE PA CONNECT ACCESS LINK TO ACCESS LINK TO AUDIO SYSTEM Audio Inputs Audio Outputs Unbalanced Balanced 5VDC/0.2A Mic/Line Connect Mobile PA...

  • Page 25: Adding Student Microphones To Mobile Pa

    Audio Audio Inputs Audio Outputs Unbalanced Balanced 5VDC/0.2A Mic/Line Input on the Mobile PA using a 3.5mm -40dB / 0dB Optical cable. Audio from all microphones will be heard from the Mobile PA. Audio In 3.5mm cable...

  • Page 26: Output To Assistive Listening Device (Ald)

    Voice Priority Companion Mode 4. With Mobile PA and ALD turned on, speak into the Flexmike and slowly Primary Speaker AUDIO OUTPUT JACK adjust the Audio Out volume control until the appropriate audio level is attained in the ALD’s receiver headphones.

  • Page 27: Using Your Microphone As A Wireless Audio Link

    You can connect your 2nd (or 3rd) microphone to your computer’s USB port to enable a wireless 2-way audio link. SEND AUDIO FROM THE COMPUTER to Mobile PA to ensure all audio from the computer (videos, video conferencing, audio books, music, etc.) can be played.

  • Page 28: Maintenance & Troubleshooting

    2. Insert new battery pack as shown and make sure the latch is secure. 3. Place the Flexmike in a cradle charger to charge the battery pack. NOTE: Microphones will only charge when Mobile PA is plugged into AC power. Voice...

  • Page 29: Battery Replacement

    4. Press the power button on the Mobile PA to power it on when battery pack is inserted properly. To reduce potential safety issues, only the battery pack (part# L14V) provided by Lightspeed Technologies should be used with Mobile PA.

  • Page 30: Troubleshooting

    SOLUTION: Follow these steps to produce sound from Mobile PA. SOLUTION: Battery Check • Confirm that the white POWER light located on the side panel of Mobile PA is on. • Confirm batteries are charged each night. A blinking red light on the battery •...

  • Page 31: Warranty, Safety & Specifications

    4. Should Mobile PA system require service, the Mobile PA must first be shipped in for inspection and repair (at Lightspeed’s expense). Once the system is inspected and if any/all issues are validated to be covered under warranty, the system will be repaired or replaced and shipped back to the customer at no charge.

  • Page 32: Safety Warnings And Certifications

    THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND and maintenance (servicing) instruction in the literature THE HAZARDS INVOLVED. accompanying this product. USE A LIGHTSPEED SUPPLIED BATTERY ONLY CERTIFICATIONS This product is listed to UL standards and requirements for electrical safety by Underwriters Laboratories Inc.
  • Page 33 Européenne suivantes : 2004/108/ EC Electromagnetic Compatibility (EMC) and 2006/95/ EC Low Voltage Directive (LVD). Lightspeed Technologies a lancé un programme de recyclage de produits en Europe conformément à la directive de l’Union Européenne 2002/96/CE relative aux déchets d’équipements électriques et électroniques (directive «...
  • Page 34 FCC Notice to User This device complies with Part 15 of the FCC Rules. Operation is subject to the French: following two conditions: NOTE IMPORTANTE: Pour se conformer au règles d’exposition des ondes RF par la 1. This device may not cause harmful interference; and FCC, la (ou les) antenne(s) utilisée(s) par ce transmetteur doivent être installées de façon à...
  • Page 35 à assurer la sécurité de toutes les personnes, indépendamment de l’âge et de la santé. NOTE: Lightspeed is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment.
  • Page 36 Canada, Industry Canada (IC) Notices English This device complies with Industry Canada license exempt RSS standard(s). This Class B digital apparatus complies with Canadian ICES-003 and CAN ICES-3(B)/ NMB-3(B).Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 37 EU Declaration of Conformity According to EU Directives EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU Manufacturer: Lightspeed Technologies, Inc. Address: 11509 SW Herman Rd. Tualatin, Oregon 97062 We herewith declare that the following systems comply with the appropriate basic safety and health requirements of the Directive based on its design and type, as brought into circulation by us.

  • Page 38: System Components

    Earset microphone with TRRS connector for Flexmike L3.7V Lithium Polymer rechargeable battery pack for microphone, one per microphone L14V Lithium Polymer rechargeable battery for Mobile PA Flexmike lavaliere cord Mobile PA carry strap STANDARD COMPONENTS (outside U.S. and Canada) MPAG Wireless audio base station 24V-2.5A...

  • Page 39: System Specifications

    System Specifications Description Mobile Portable Audio System SHAREMIKE (1-2) Frequency response 120 Hz - 13 kHz (-10dB) Description Handheld transceiver DC power input 24V/2.5A Wireless communication Access Technology (1.9 GHz) Power output 40 Watts RMS Audio distortion <1% Wireless communication Access Technology (1.9 GHz) Integrated microphone Uni-directional electret...
  • Page 40 Access to powerful in-the-moment insights to the learning process. Our audio and video solutions improve student engagement, enable teachers to activate small groups, and encourage collaboration. 11509 SW HERMAN ROAD TUALATIN, OREGON 97062 TOLL FREE: 800.732.8999 PHONE: 503.684.5538 FAX: 503.684.3197 LIGHTSPEED-TEK.COM MN0659US01-2...
