YOUNG M
IV
K
DIGITAL-TO-ANALOG CONVERTER AND PREAMPLIFIER
REVISION PrA – DECEMBER 2020

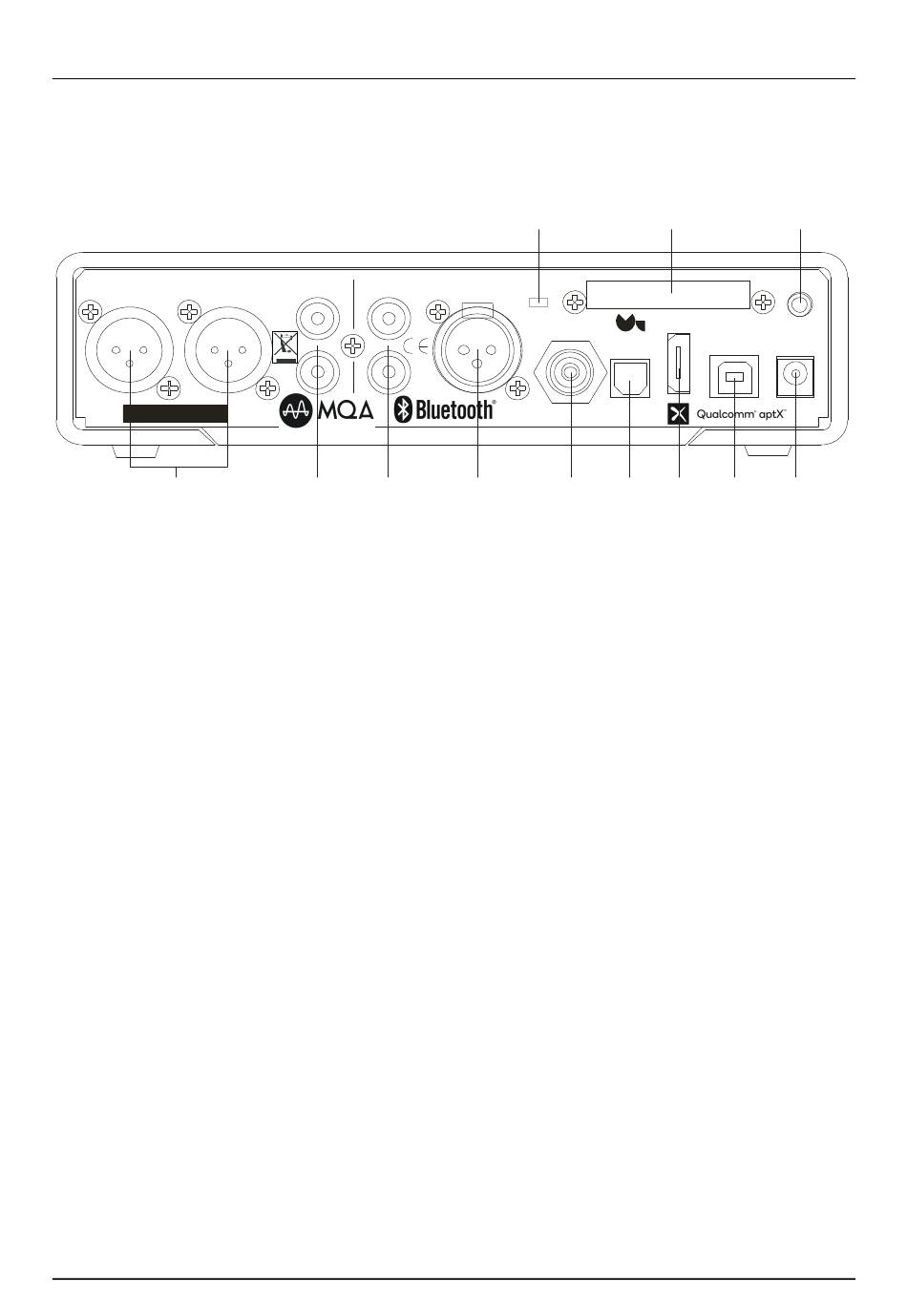

3. Back Panel
RIGHT OUT
LEFT OUT
S/N:
7
7) Balanced outputs. Connect the YOUNG MKIV to your amplifier/preamplifier with
balanced inputs using balanced cables terminated with three-pole XLR connectors. Gold-
plated male XLR sockets.
NOTE: Ground on pin 1, send (hot) on pin 2, return (cold) on pin 3. If your amplifier
requires hot on pin 3 and cold on pin 2, the connection will be inverting. In this case
the absolute phase can be obtained using the "phase" feature of the YOUNG MKIV
(please refer to chapter 7 for more details).
8) Single-ended outputs. Connect the YOUNG MKIV to your amplifier/preamplifier with
single-ended inputs using coaxial cables terminated with RCA connectors. Gold-plated
female RCA sockets.
9) Analog input. Connect an analogue source provided with single-ended line level output
Female stereo RCA socket.
10) AES/EBU digital input. Connect a source provided with 110 Ohms pro AES/EBU
output. Female three-pole XLR socket.
11) Power mode switch. Allows to choose between the "always powered" status and the
normal status in which the YOUNG MKIV can be totally switched off by the front panel
button.
12) S/PDIF digital inputs. Connect sources provided with 75 Ohms S/PDIF outputs. RCA
female connector terminals are provided.
13) Toslink™ optical digital input. Connect a source provided with a Toslink™ digital
output. Toslink™ type connector.
SE OUT
ANALOG
AES/EBU
PUSH
8
9
10
Figure 2
12
M2Tech
11
14
POWER
MODE
STBY OFF
I2S
S/PDIF
M2TEC H
TOSLINK
YOUNG M IV
k
12 13 15 16 18
Copyright © 2017, M2Tech Srl
www.m2tech.biz
17
TRIGGER
OUT
12V
MADE IN ITALY
DC
DC IN
USB
15V
DC
