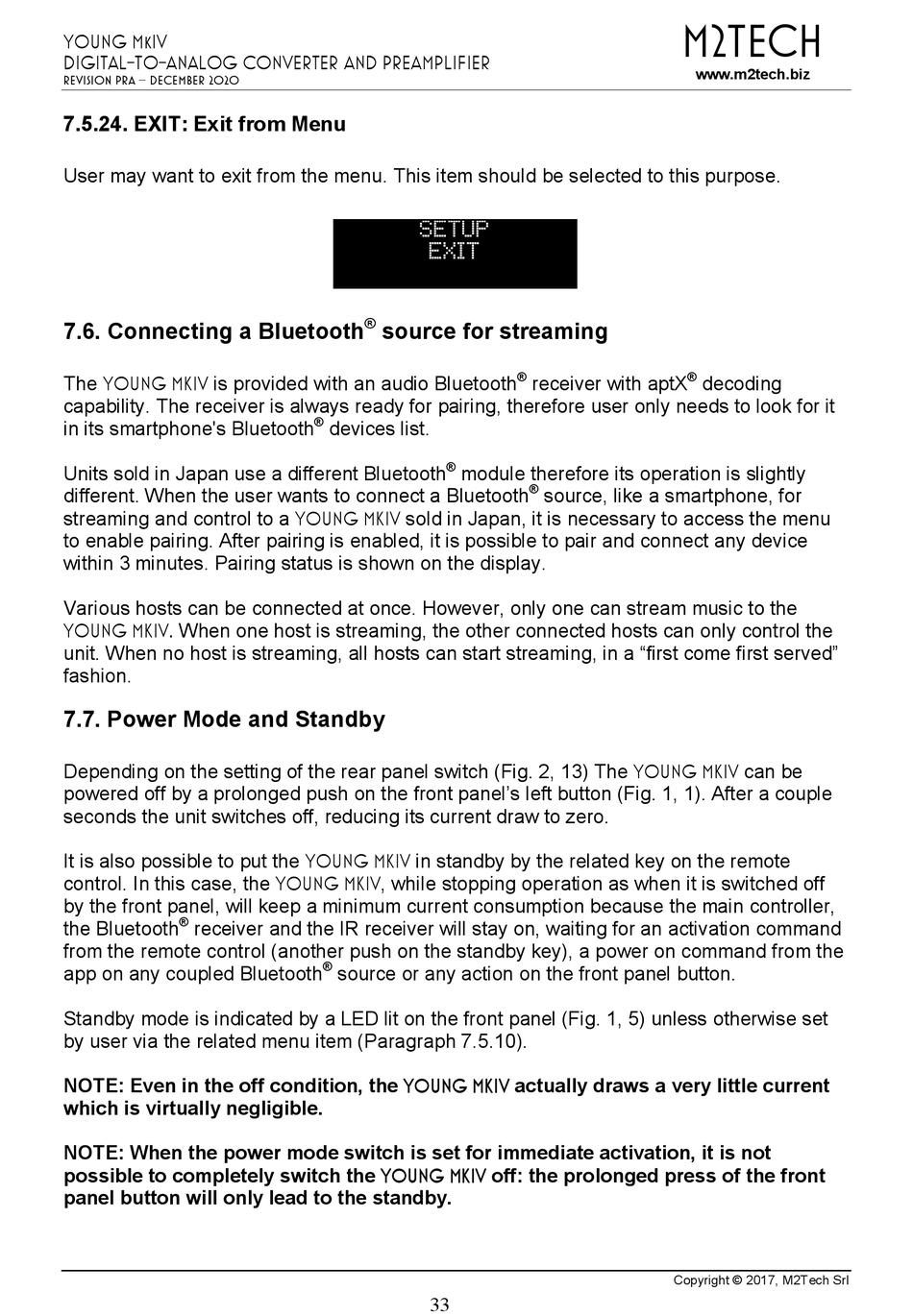

7.5.24. EXIT: Exit from Menu

User may want to exit from the menu. This item should be selected to this purpose.
SETUP
EXIT
®
7.6. Connecting a Bluetooth source for streaming
® ®
The YOUNG MKIV is provided with an audio Bluetooth
receiver with aptX decoding
capability. The receiver is always ready for pairing, therefore user only needs to look for it
®
in its smartphone's Bluetooth devices list.
®
Units sold in Japan use a different Bluetooth module therefore its operation is slightly
®
different. When the user wants to connect a Bluetooth source, like a smartphone, for
streaming and control to a YOUNG MKIV sold in Japan, it is necessary to access the menu
to enable pairing. After pairing is enabled, it is possible to pair and connect any device
within 3 minutes. Pairing status is shown on the display.
Various hosts can be connected at once. However, only one can stream music to the
YOUNG MKIV. When one host is streaming, the other connected hosts can only control the
unit. When no host is streaming, all hosts can start streaming, in a "first come first served"
fashion.

7.7. Power Mode and Standby

Depending on the setting of the rear panel switch (Fig. 2, 13) The YOUNG MKIV can be
powered off by a prolonged push on the front panel's left button (Fig. 1, 1). After a couple
seconds the unit switches off, reducing its current draw to zero.
It is also possible to put the YOUNG MKIV in standby by the related key on the remote
control. In this case, the YOUNG MKIV, while stopping operation as when it is switched off
by the front panel, will keep a minimum current consumption because the main controller,
®
the Bluetooth receiver and the IR receiver will stay on, waiting for an activation command
from the remote control (another push on the standby key), a power on command from the
®
app on any coupled Bluetooth source or any action on the front panel button.
Standby mode is indicated by a LED lit on the front panel (Fig. 1, 5) unless otherwise set
by user via the related menu item (Paragraph 7.5.10).
NOTE: Even in the off condition, the YOUNG MKIV actually draws a very little current
which is virtually negligible.
NOTE: When the power mode switch is set for immediate activation, it is not
possible to completely switch the YOUNG MKIV off: the prolonged press of the front
panel button will only lead to the standby.
Copyright © 2017, M2Tech Srl
33
