3. Back Panel

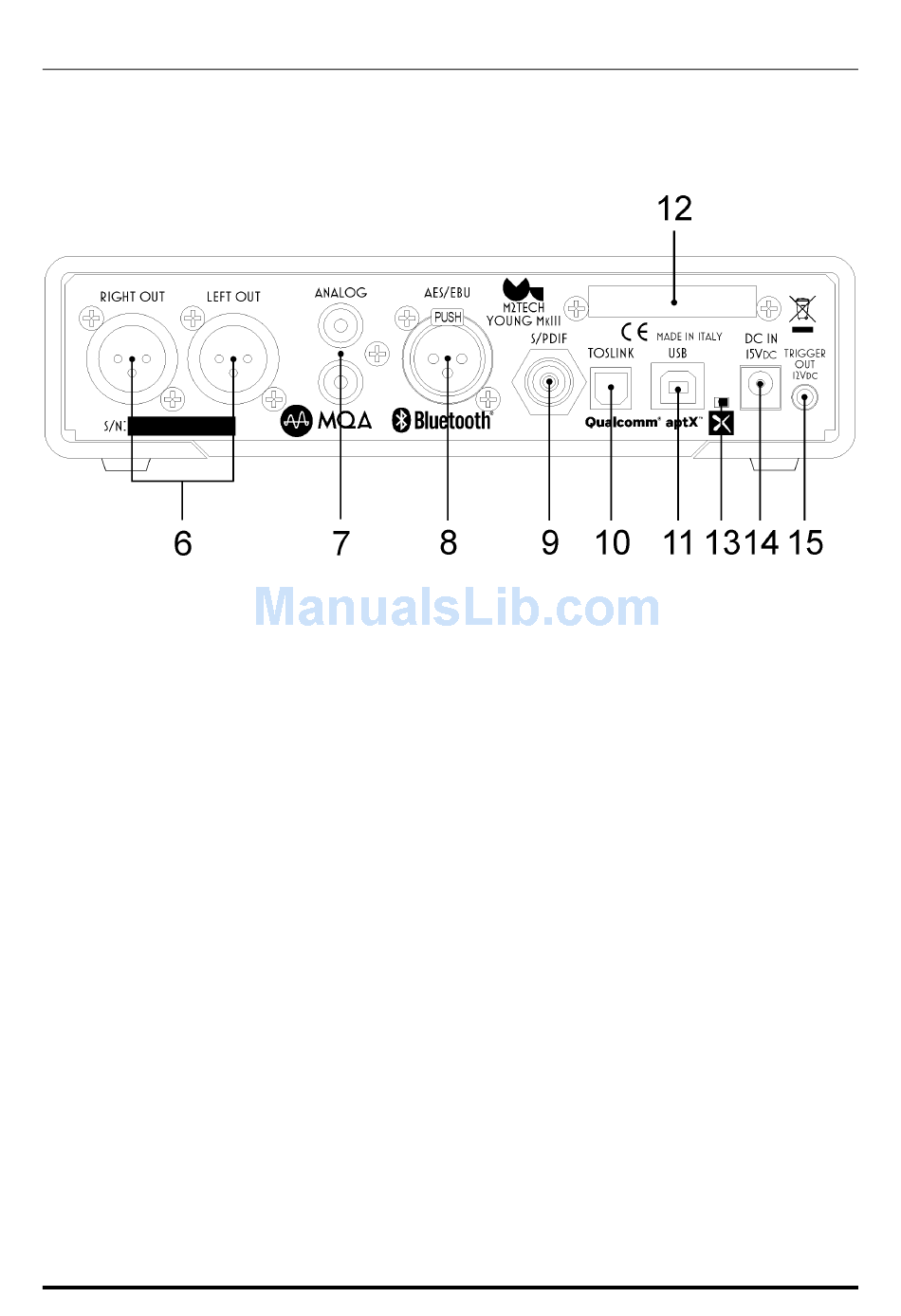

Figure 2

6) Outputs. Connect the YOUNG MKIII to your amplifier/preamplifier with balanced inputs

using balanced cables terminated with three-pole XLR connectors. Should your amplifier

only be provided with single-ended inputs, you may insert the stock high quality adaptors

into the YOUNG MKIII outputs and then connect the YOUNG MKIII to the amplifier using

coaxial interconnect terminated with RCA plugs. The YOUNG MKIII is provided with Gold-

plated male XLR sockets.

NOTE: Ground on pin 1, send (hot) on pin 2, return (cold) on pin 3. If your amplifier

requires hot on pin 3 and cold on pin 2, the connection will be inverting. In this case

the absolute phase can be obtained using the "phase" feature of the YOUNG MKIII

(please refer to chapter 7 for more details).

7) Analog input. Connect an analogue source provided with single-ended line level output

Female stereo RCA socket.

8) AES/EBU digital input. Connect a source provided with 110 Ohms pro AES/EBU

output. Female three-pole XLR socket.

9) S/PDIF digital inputs. Connect sources provided with 75 Ohms S/PDIF outputs. RCA

female connector terminals are provided.

10) Toslink™ optical digital input. Connect a source provided with a Toslink™ digital

output. Toslink™ type connector.

11) USB connector. Connect to the USB 2.0 port of a computer using the stock USB

cable. Type "B" female USB connector.
