The new value can therefore be confirmed with a new short push of the encoder or by
pushing the "OK" key on the remote control.
If, at this point, the user changes his/her mind and wants to keep the current value, it's
possible to exit the menu by pressing the front panel's left button or by pushing the "ESC"
key on the remote control.
Following is a description of all menu items.

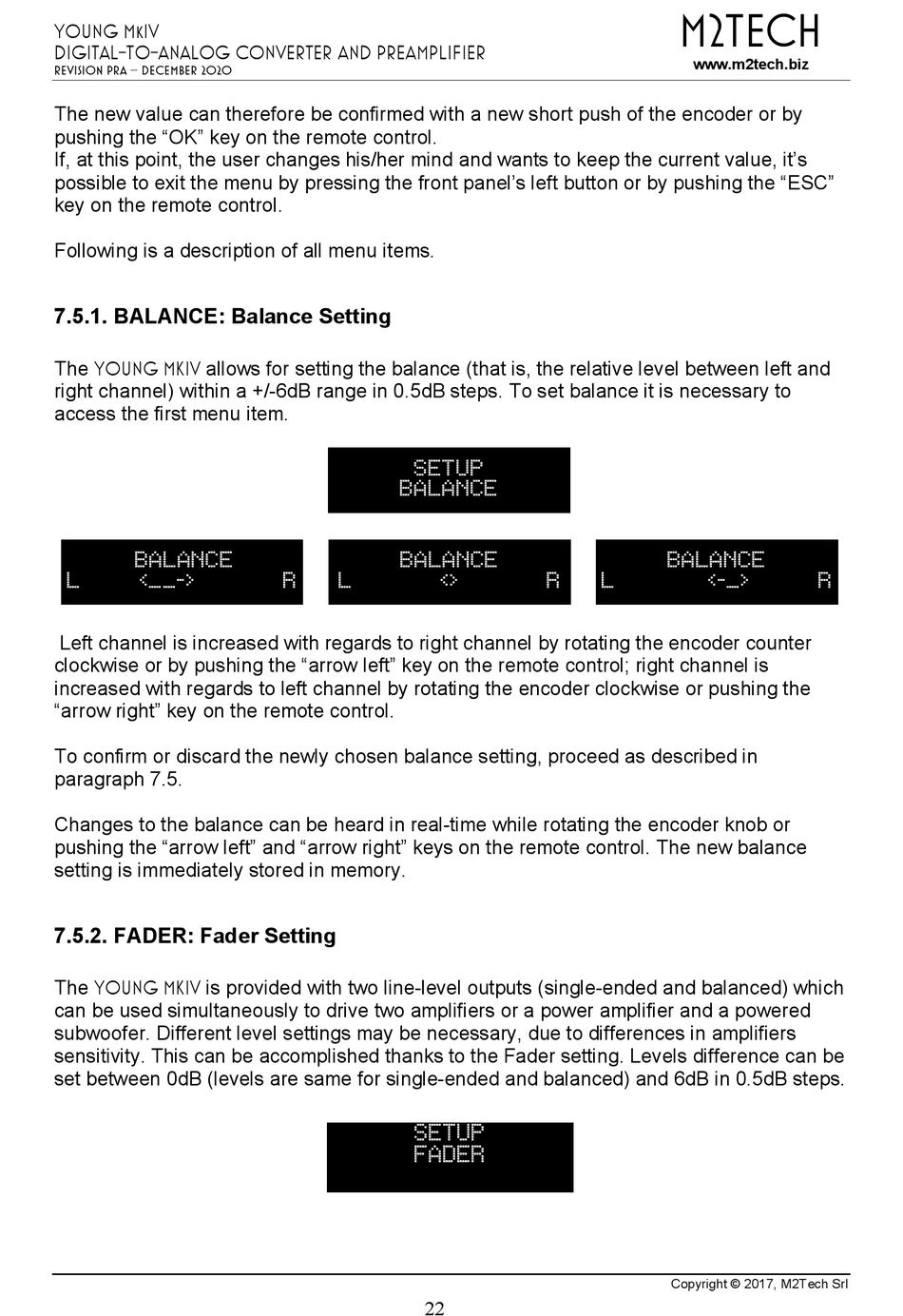

7.5.1. BALANCE: Balance Setting

The YOUNG MKIV allows for setting the balance (that is, the relative level between left and
right channel) within a +/-6dB range in 0.5dB steps. To set balance it is necessary to
access the first menu item.
BALANCE
L <__->
Left channel is increased with regards to right channel by rotating the encoder counter
clockwise or by pushing the "arrow left" key on the remote control; right channel is
increased with regards to left channel by rotating the encoder clockwise or pushing the
"arrow right" key on the remote control.
To confirm or discard the newly chosen balance setting, proceed as described in
paragraph 7.5.
Changes to the balance can be heard in real-time while rotating the encoder knob or
pushing the "arrow left" and "arrow right" keys on the remote control. The new balance
setting is immediately stored in memory.

7.5.2. FADER: Fader Setting

The YOUNG MKIV is provided with two line-level outputs (single-ended and balanced) which
can be used simultaneously to drive two amplifiers or a power amplifier and a powered
subwoofer. Different level settings may be necessary, due to differences in amplifiers
sensitivity. This can be accomplished thanks to the Fader setting. Levels difference can be
set between 0dB (levels are same for single-ended and balanced) and 6dB in 0.5dB steps.
SETUP
BALANCE
BALANCE
R L <>
SETUP
FADER
22
M2Tech
www.m2tech.biz
BALANCE
R L <-_>
