3. Rear Panel
S/N:
MADE IN ITALY
BAL IN R BAL IN
6
6) Composite balanced inputs. Connect the two adapters supplied with the Tosh. The
three balanced inputs are available on the 3-pole female XLR connectors of the above
adapters.
7-pin female XLR female on the device, 3 x 3-pin female XLR on the free end of the
adapters.
7) Single-ended inputs. Connect your single-ended sources to these connectors.
Female RCA.
8) Single ended output. Connect a stereo power amp or two mono power amps equipped
with single-ended inputs to this output using interconnect cables terminated in RCA
connectors. This output is always active together with the balanced one.
Female RCA.
9) Balanced output. Connect a stereo power amp or two mono power amps equipped
with balanced inputs to this output using interconnect cables terminated in XLR
connectors. This output is always active together with the single-ended one.
Male XLR.
10) 15V power input. Connect the supplied power supply to this input. To increase the
DC
TOSH's performance, it can be powered via the Van Der Graaf MkII.
5.5/2.1mm barrel plug with positive on internal contact.
11) Trigger output. Connect the trigger input of another device to this output to turn it on
and off automatically via the TOSH. It delivers 12V
Female 3.5mm jack.
TOSH
LINE LEVEL BALANCED STEREO PREAMPLIFIER
LT
RT
L SE IN 1 SE IN 2
7
LT
RT
SE IN 3 A SE OUT BAL OUT R
8

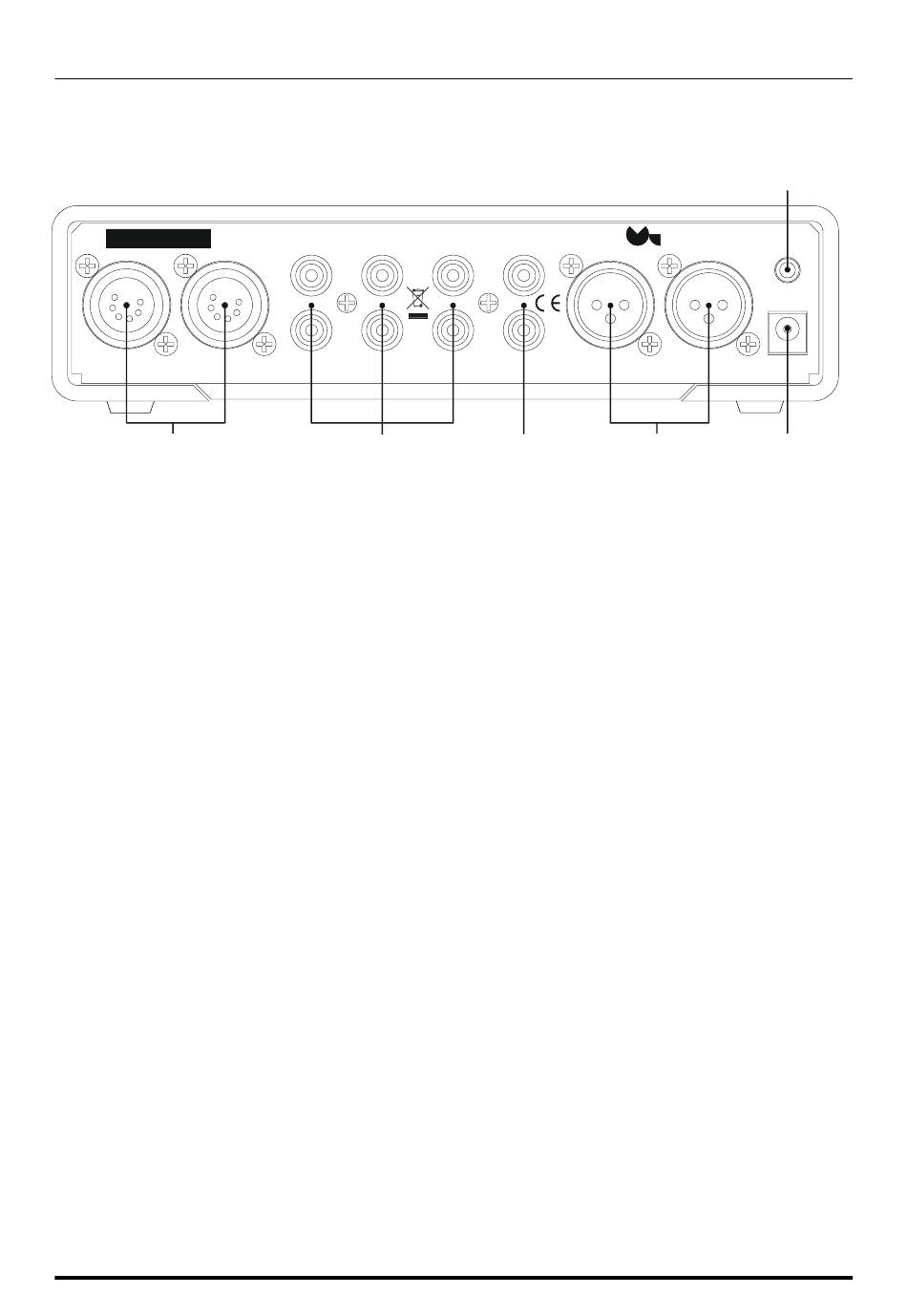

Figure 2
.
DC
11
M2Tech
www.m2tech.biz
11
TRIGGER
OUT 12VDC
M2TECH
DC IN
15V
DC
BAL OUT L
9 10
