3. Back Panel

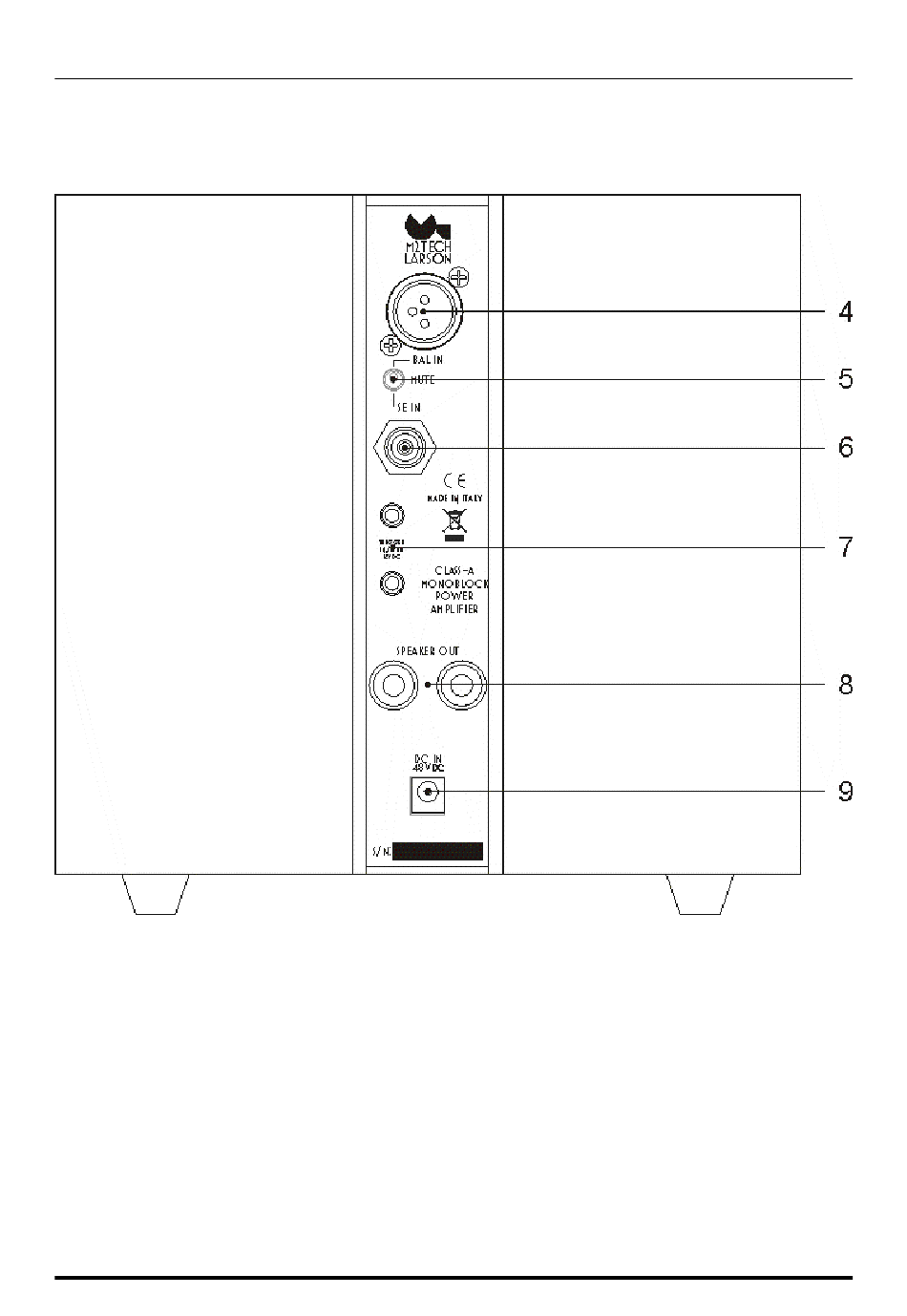

Figure 2
4) Balanced input. Connect a preamplifier provided with balanced outputs. Female 3-pin
xlr connectors. 1 is GND, 2 is send, 3 is return.
5) Input/mute selector switch. Three-way switch. Allows to choose between single-
ended and balanced input. The central position mutes the amplifier, allowing for hot
plugging cables.
6) Single-ended input. Connect a preamplifier provided with single-ended outputs.
Female RCA.
