Viewing ARP
Settings
The ARP Settings Summary Page displays the current ARP settings.
To view ARP Settings:
1 Click Administration > ARP Settings > Summary. The ARP
Settings Summary Page opens.

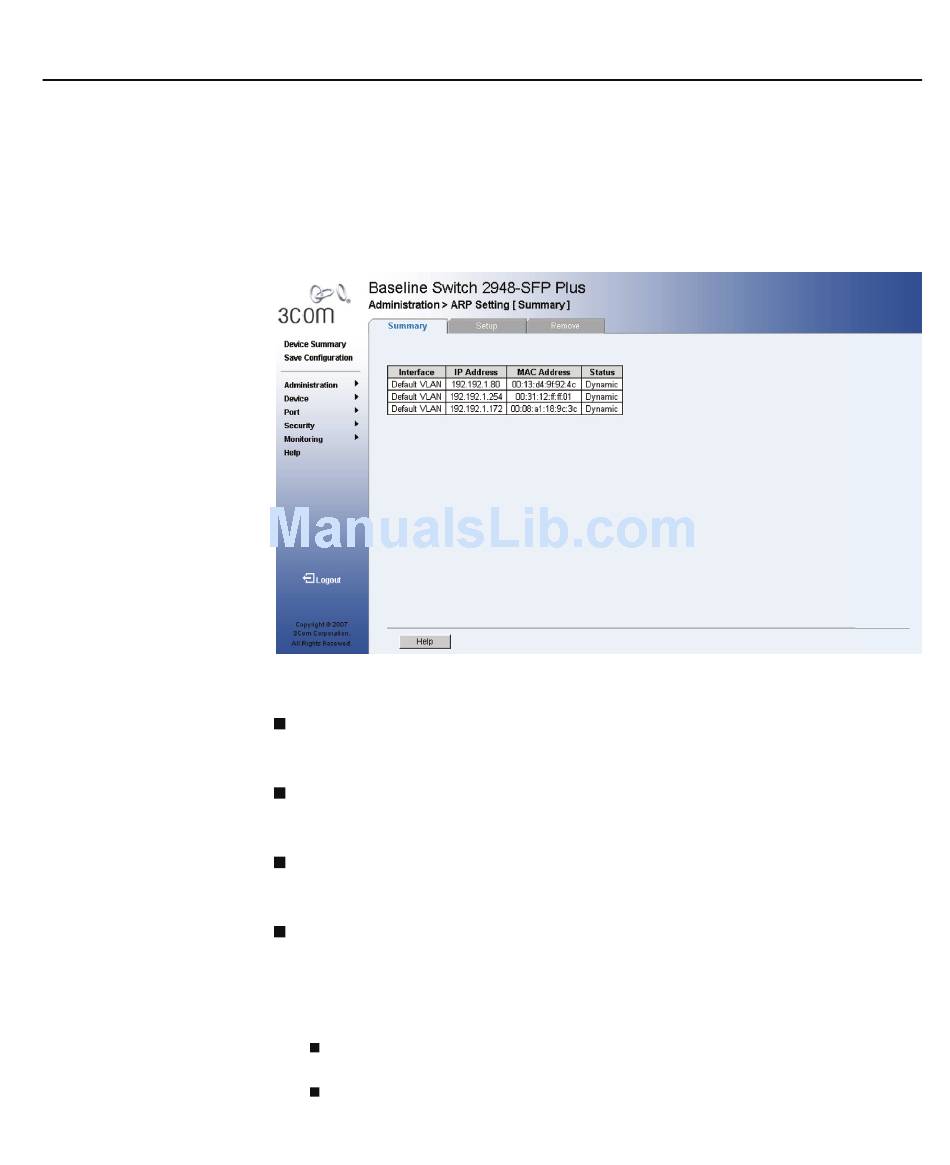

Figure 61 ARP Settings Summary Page
The ARP Settings Summary Page contains the following fields:
Interface — Indicates the VLAN for which ARP parameters are
defined.
IP Address — Indicates the station IP address, which is associated
with the MAC Address.
MAC Address — Displays the station MAC address, which is
associated in the ARP table with the IP address.
Status — Displays the ARP table entry type. Possible field values
are:
Dynamic — Indicates the ARP entry is learned dynamically.
Static — Indicates the ARP entry is a static entry.
C C IP
HAPTER 9: ONFIGURING
MAC A I
AND DDRESS NFORMATION
119
