Defining CoS

The CoS Setup Page contains information for enabling QoS globally.
Monitor users have no access to this page.
To configure CoS Settings:
1 Click Device > QoS > CoS Setup. The CoS Setup Page opens.

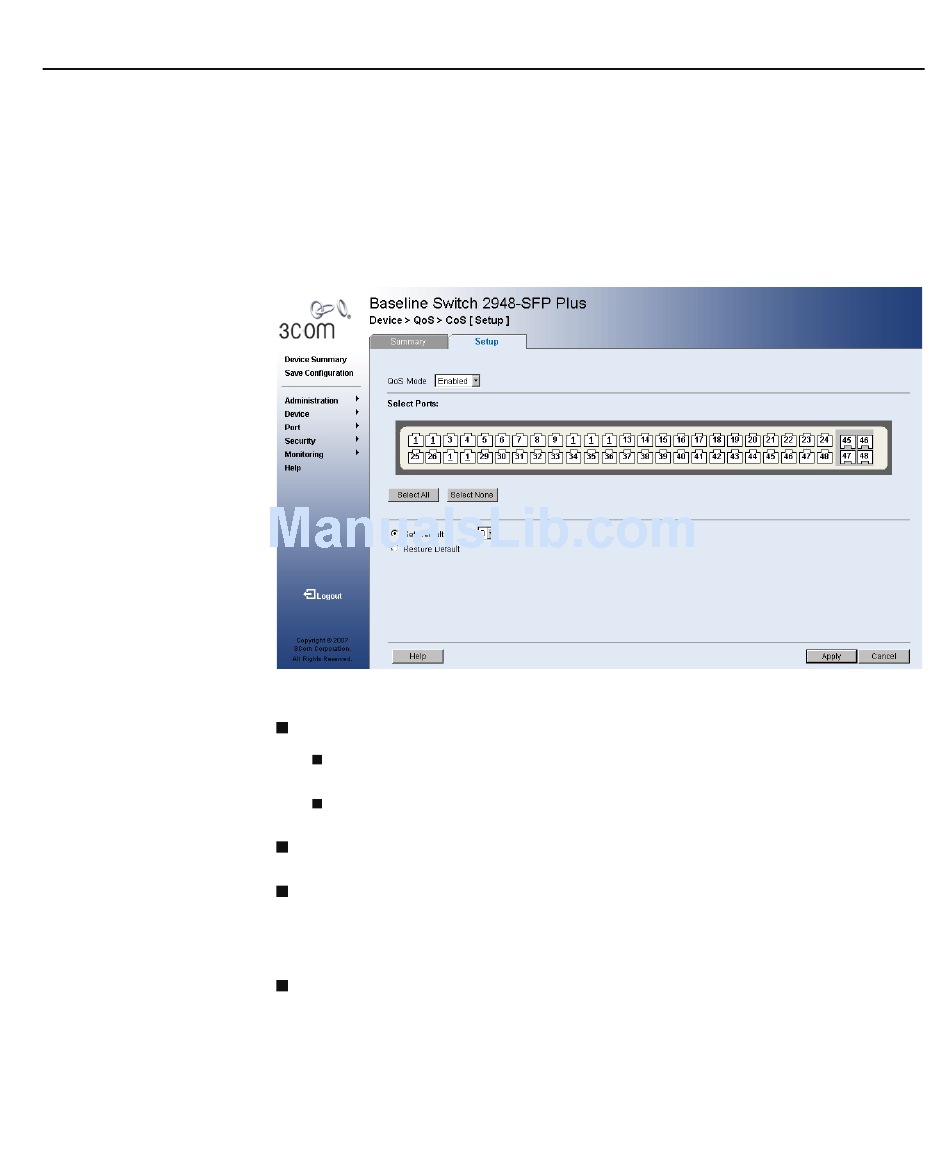

Figure79 CoS Setup Page
The CoS Setup Page contains the following fields:
QoS Mode — Determines the QoS mode on the device:
Disabled — Disables QoS on the device.
Enabled — Enables QoS on the device.
Select Port(s) — Indicates the ports to be configured.
Set Default — Sets the default user priority. The possible field
values are 0-7. The default CoS value is 0. With the default settings,
0 is the lowest and 7 is the highest priority.
Restore Default — Restores the device factory defaults for
CoS values.
2 Define the fields.
3 Click Apply. CoS is enabled on the device, and the device is
updated.
