144 C 9: C
HAPTER ONFIGURING

Viewing ARP Settings

IP MAC A
AND DDRESS
The ARP Settings Summary Page displays the current ARP settings.
To view ARP Settings:
1 Click Administration > ARP Settings > Summary. The ARP Settings
Summary Page opens:

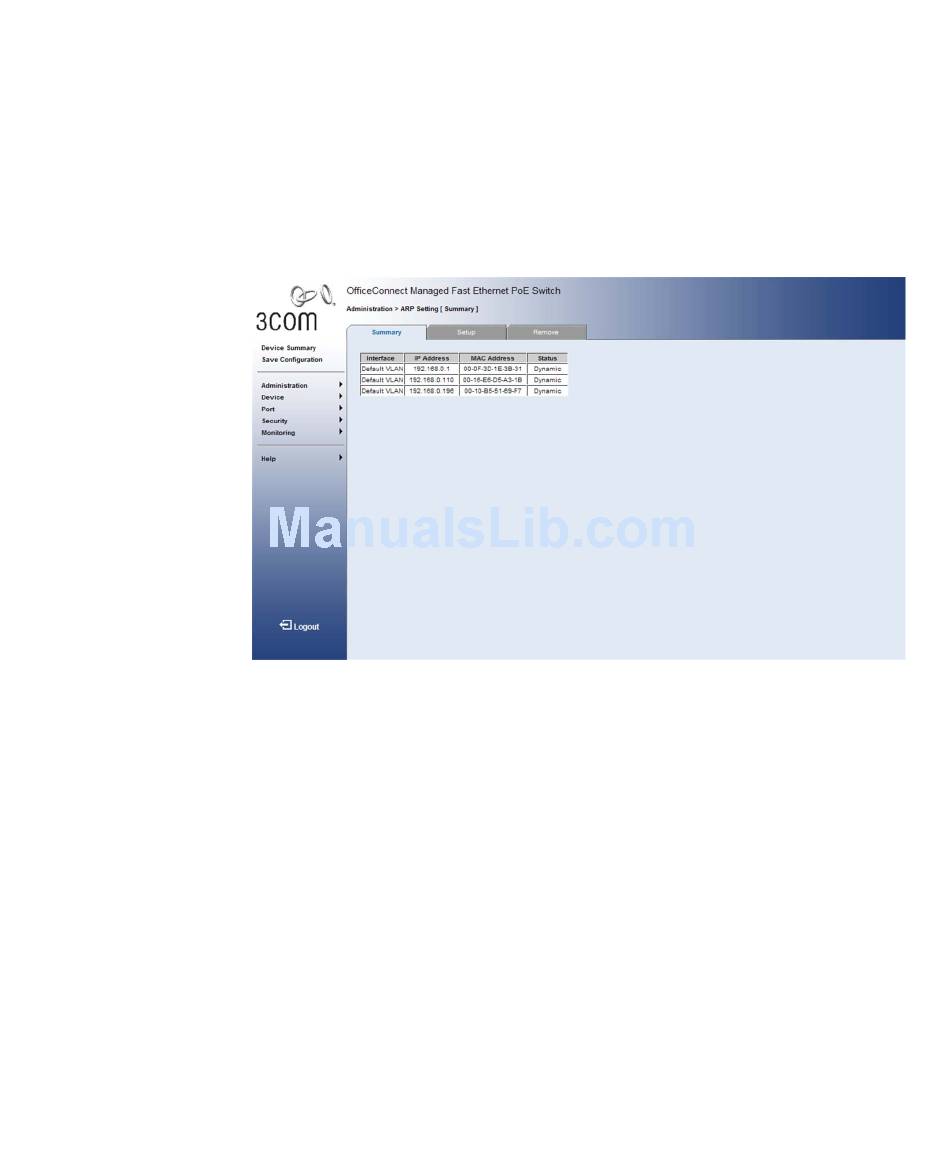

Figure 75 ARP Settings Summary Page
The ARP Settings Summary Page contains the following fields:
Interface — Indicates the VLAN for which ARP parameters are
■
defined.
IP Address — Indicates the station IP address, which is associated
■
with the MAC Address.
MAC Address — Displays the station MAC address, which is
■
associated in the ARP table with the IP address.
Status— Displays the ARP table entry type. Possible field values are:
■
Dynamic — Indicates the ARP entry is learned dynamically.
■
Static — Indicates the ARP entry is a static entry.
■
I
NFORMATION
