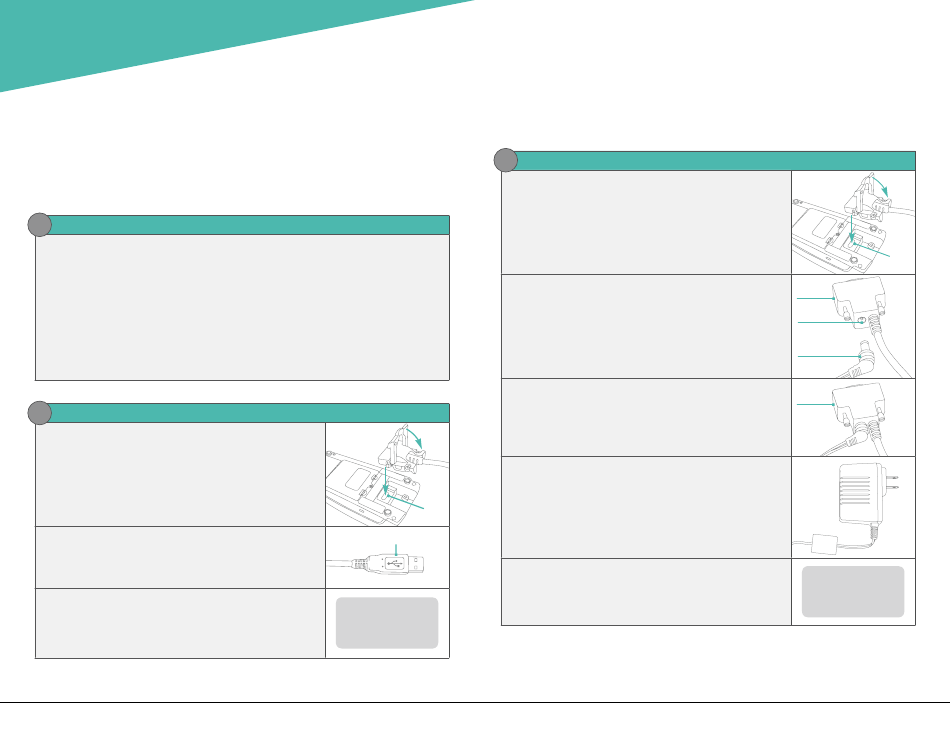

Hardware setup

Using a USB cable

1
DownloadandinstalltheiPP320USBdriver
a. Visit https://esqa.moneris.com/connect/en/download/drivers/index.html.
b. Click on IPP320USBdriver, and then save the zip file to your computer.
c. Unzip and extract the executable (.exe) file, then click on it to begin the
installation process.
d. Continue clicking Next when prompted, then click on Install.
e. Once the driver is installed, proceed to step 2 (Connect the USB cable to
the iPP320 PINpad and your computer) below.
2
ConnecttheUSBcabletotheiPP320PINpadandyourcomputer
a. Plug the USB cable into the empty port on the
underside of the iPP320 PINpad.
b. Fold the latch down and press to secure the cable
connection to the iPP320 PINpad.
c. Plug the USB cable connector into a USB port on
your computer.
d. Wait while the iPP320 PINpad powers on.
e. When the "INIT REQUIRED" screen displays
on the iPP320 PINpad, proceed to Configuring the
iPP320 PINpad on page 6.
4
U S I N G T H E M E R C H A N T R E S O U R C E C E N T E R : M O N E R I S ® I P P 3 2 0 P I N PA D S E T U P G U I D E

Using a serial cable

1
a.
b.
c.
d.
LATCH
LATCH
USB
e.
CABLE
USB
CABLE
f.
PORT
PORT
USB CABLE CONNECTOR
USB CABLE CONNECTOR
g.

INITREQUIRED

ESP iPP320_SUYTeng_Layout 1 13-11-12 1:02 PM Page 5 ESP iPP320_SUYTeng_Layout 1 13-11-12 1:02 PM Page 5 ESP iPP320_SUYTeng_Layout 1 13-11-12 1:02 PM Page 5
ESP iPP320_SUYTeng_Layout 1 13-11-12 1:02 PM Page 5
ConnecttheserialcabletotheiPP320PINpadandyourcomputer
Plug the serial cable into the empty port on the
underside of the iPP320 PINpad.
Fold the latch down and press to secure the cable
connection to the iPP320 PINpad.
Plug the power cable connector into the port at the
back of the serial cable connector.
Plug the serial cable connector into a serial port on
your computer.
Plug the power cable into a working power outlet.
Wait while the iPP320 PINpad powers on.
When the "INIT REQUIRED" screen displays on the
iPP320 PINpad, proceed to Configuring the iPP320
PINpad on page 6.
LATCH
LATCH
LATCH
LATCH
SERIAL
SERIAL SERIAL
CABLE
CABLE CABLE
SERIAL
CABLE
PORT
PORT
PORT
PORT
SERIAL CABLE
SERIAL CABLE
SERIAL CABLE
CONNECTOR
CONNECTOR
CONNECTOR
SERIAL CABLE
CONNECTOR
PORT
PORT
PORT
PORT
POWER CABLE PINPAD
POWER CABLE PINPAD
POWER CABLE PINPAD
CONNECTOR CABLE
CONNECTOR CONNECTOR CABLE CABLE
POWER CABLE PINPAD
CONNECTOR CABLE
SERIAL CABLE
SERIAL CABLE
SERIAL CABLE
CONNECTOR
CONNECTOR
CONNECTOR
SERIAL CABLE
CONNECTOR
PLUG
PLUG
PLUG
PLUG
POWER
POWER
POWER
CABLE
CABLE
CABLE
POWER
CABLE


INITREQUIRED
INITREQUIRED
