Type 16 - Directed Directechs DS4+ Installation Manual

Type 16

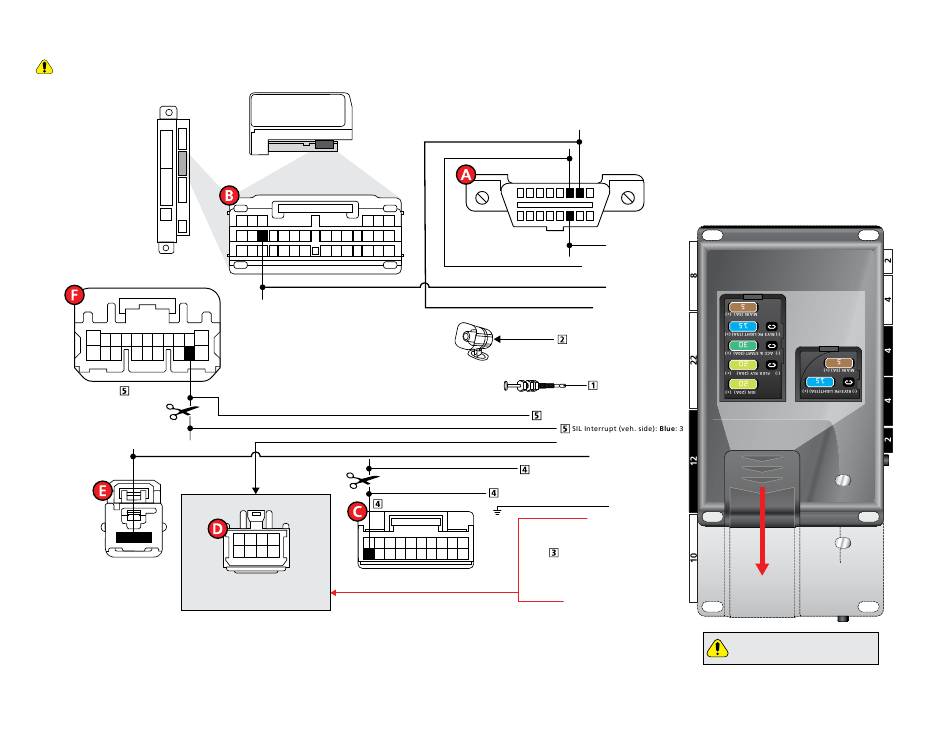

Refer to "Pre-installation and application warnings" on page 4 and "Vehicle wiring reference chart" on page 56 for important information on this installation.
Body ECU
Connector
Tire Pressure Warning ECU
(blue conn. in passenger kick panel)
11 1
10 9 8 7 6 5 4 3 2
20 13 12
19 18 17 16 15 14
SIL: Tan, pin 13
Cut
(+) 12V:
White, pin 1
Ignition Connector
1
Dash Fuse Box
(white conn.)
Refer to the Vehicle Wiring
Reference Information for wire
and connector details.
55
FUSES
OR
BODY ECU
Body ECU Connector
(middle or underside conn.of ECU)
6 5 4 3 2 1
18 17 16 15 14 13 12 11 10 9 8 7
30 29 28 27 26 25 24 23 22 21 20 19
RDA: Lt. Blue or Green, pin 16
Cut
Autolight: Green, pin 20
4 3 2 1
10 9 8
8 7 6 5
20 19 18 17
Headlight Switch
HS CAN High:
Black, pin 6
1
9
HS CAN Low: White, pin 14
(+) Siren Output: Brown/Red: 11
Siren
Hood Pin
SIL Interrupt (conn. side): Blue/White: 1
(+) Starter 2 Output: White: 5 & 11
Autolight Interrupt (veh. side): Lt. Green: 8
Autolight Interrupt (conn. side): Lt. Green/White: 9
(+/-) Flex Output: Pink/White: 4
7 6 5 4 3 2 1
Starter Disable (key side): Green: 6
16 15 14 13 12 11
(+) 12V Starter Output (starter side): Violet: 7
(+) 12V Accessory Output: Orange: 8
(+) Ignition Input/Ouput: Pink: 10
SIL Data: Green, pin 7
Diagnostic
8 Connector OBDII
16
HS CAN Low 1: Tan: 1
HS CAN High 1: Tan/Black: 2
RDA: Orange/Black: 7
SIL Data: Yellow/Black: 8
(-) Hood Input: Gray: 21
DS4+
Proper Fuse
Positioning
(+) 12V Input: Red: 6 & 12
(-) Ground: Black: 10
(+) 12V Input: Red/Black: 2
(+) 12V Ignition Input: Red: 5
Slide
(+/-) Flex Input: Red/White: 9
to open
It is important to check that the
fuses are positioned correctly.
DS4
DS4
DS4+
DS4+ TL10
