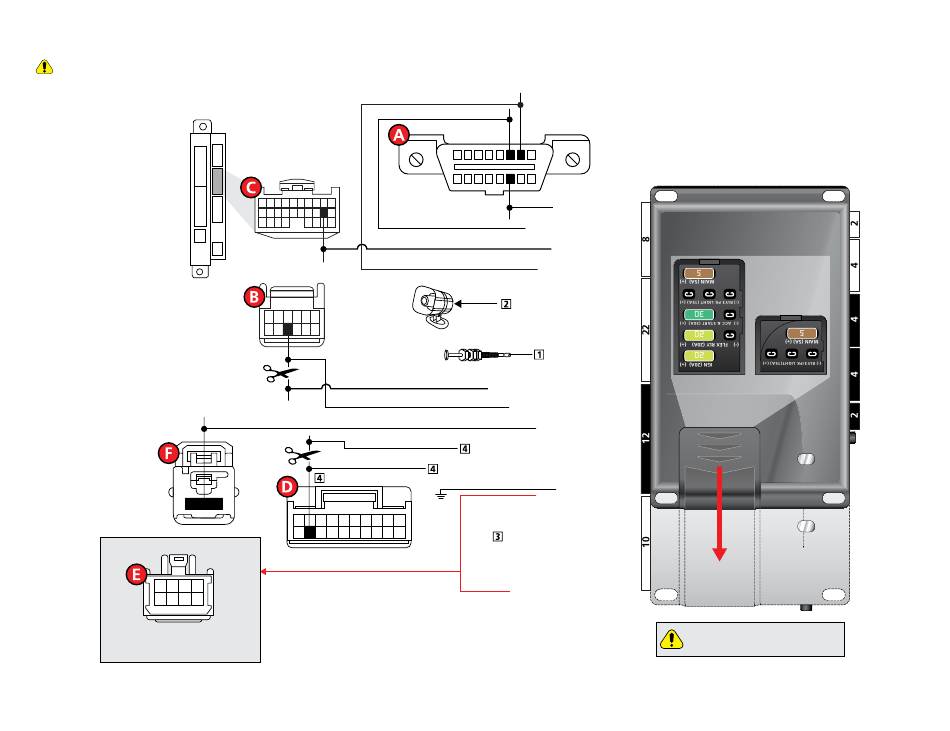

Type 2 - Directed Directechs DS4+ Installation Manual

Type 2

Refer to "Pre-installation and application warnings" on page 4 and "Vehicle wiring reference chart" on page 14 for important information on this installation.
Body ECU
Connector
Tire Pressure
Warning ECU
(behind glove box)
(+) 12V: Black, pin 1
Dash Fuse Box
(white conn.)
1
Ignition Connector
4 3 2 1
8 7 6 5
Refer to the Vehicle Wiring
Reference Information for wire
and connector details.
13
Body ECU Connector
(middle conn. left side
of steering column)
HS CAN Low: White, pin 14
10 9 8 7 6 5 4 3 2 1
20 19 18 17 16 15 14 13 12 11
28 27 26 25 24 23 22 21
RDA: Violet, pin 12
6 5 4 3 2 1
Siren
10
12 11 9 8 7
SIL: Blue, pin 10 Hood Pin
Cut
Cut
Autolight: Green, pin 19
10 9 8 7 6 5 4 3 2 1
20 19 18 17 16 15 14 13 12 11
Headlight Switch
HS CAN High: Violet, SIL: Tan, pin 7
pin 6
Diagnostic
1 8
Connector OBDII
9 16
HS CAN 1 Low: Tan: 1
HS CAN 1 High: Tan/Black: 2
RDA: Orange/Black: 7
SIL Data: Yellow/Black: 8
(+) Siren Output: Brown/Red: 11
(-) Hood Input: Gray: 21
SIL Interrupt (veh. side): Blue/White: 1
SIL Interrupt (conn. side): Blue: 3
(+) 12V Input: Red: 6 & 12
Autolight Interrupt (veh. side): Lt. Green: 8
Autolight Interrupt (conn. side): Lt. Green/White: 9
(-) Ground: Black: 10
(+) 12V Input: Red/Black: 2
(+/-) Flex Output: Pink/White: 4
(+) 12V Ignition Input: Red: 5
Starter Disable (key side): Green: 6
(+) 12V Starter Output (starter side): Violet: 7
(+) 12V Accessory Output: Orange: 8
(+/-) Flex Input: Red/White: 9
(+) Ignition Input/Ouput: Pink: 10
DS4+ DS4
Proper Fuse
Positioning
DS4
Slide
DS4+
to open
It is important to check that the
fuses are positioned correctly.
© 2017-05-29 Directed. All rights reserved.
DS4+ TL10
