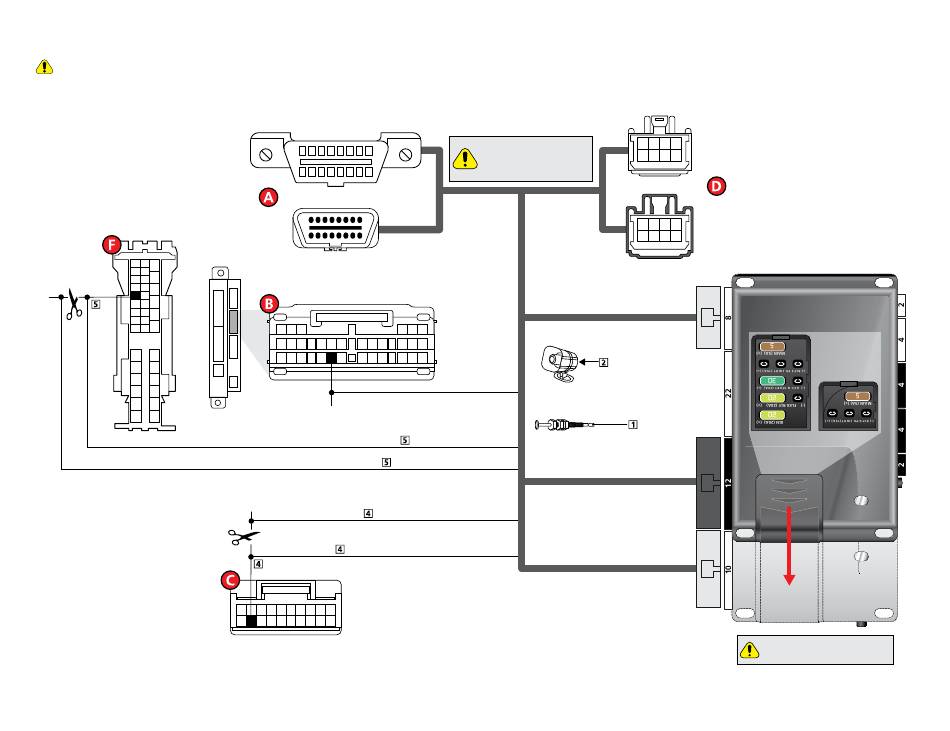

Type 5 with T-Harness (THTON4)

Refer to "Pre-installation and application warnings" on page 4 and "Vehicle wiring reference chart" on page 23 for important information on this installation.
Tire Pressure Warning ECU
(white conn. on Body ECU)
Body ECU
Connector
36 27
12
35 26
11
34 25
Cut
33 24
10
32
23
9
31 22
SIL:
30 21
Blue, 8
29 20
pin 32
19 7
28
18 6
17 5
16 4
15 3
14 2
13 1
21
1 8
9 16
Diagnostic Connector OBDII
Body ECU Connector
(middle conn. left side of steering column)
6 5 4 3 2
18 17 16 15 14 13 12 11 10 9 8
26
30 29 28 27 25 24 23 22 21 20
RDA: Pink, pin 26
SIL Interrupt (conn. side): Blue
SIL Interrupt (veh. side): Blue/White
Autolight Interrupt (veh. side): Lt. Green
Cut
Autolight Interrupt (conn. side): Lt. Green/White
Autolight: Violet
or Red, pin 19
10 9 8 7 6 5 4 3 2 1
19
20 18 17 16 15 14 13 12 11
Headlight Switch
THTON4
(optional T-Harness)
Refer to the "Vehicle
wiring reference chart"
for more specific T-harness
compatibility.
1
7
19
Siren
RDA: Orange/Black
Hood Pin
Ignition Connector
8-pin White
Connector
(+) Siren Output: Brown/Red: 11
(-) Hood Input: Gray: 21
DS4+
12-pin Black
Proper Fuse
Connector
Positioning
10-pin White
Connector
Slide
to open
It is important to check that the
fuses are positioned correctly.
