Directed Directechs DS4+ Installation Manual page 14

Vehicle wiring reference chart
This section provides vehicle wiring information to guide you through the various stages of your installation. Refer to
www.directechs.com for additional information.
T-Harness compatibility
Vehicle
Toyota Sequoia (H Key)
Wire Information
Function Color
Sequoia (H Key) 2015-2017
HS CAN High Violet
HS CAN Low White
SIL Tan
SIL Interrupt Blue
RDA Violet
Autolights Green
Accessory Gray
Ignition 1 Black
Ignition 2 Lt. Green
Starter Green
12V Black
14
Year T-Harness
2015-2017 THTON4
Pin Polarity Location
6 Data OBDII.
14 Data OBDII.
7 Data OBDII.
10 Data TPMS warning ECU behind glove box.
12 Data Main body ECU left of steering column.
19 Cut Headlight switch.
2 (+) Ignition switch.
6 (+) Ignition switch.
1 (+) Ignition switch.
7 (+) Ignition switch.
1 (+) Dash fuse box.

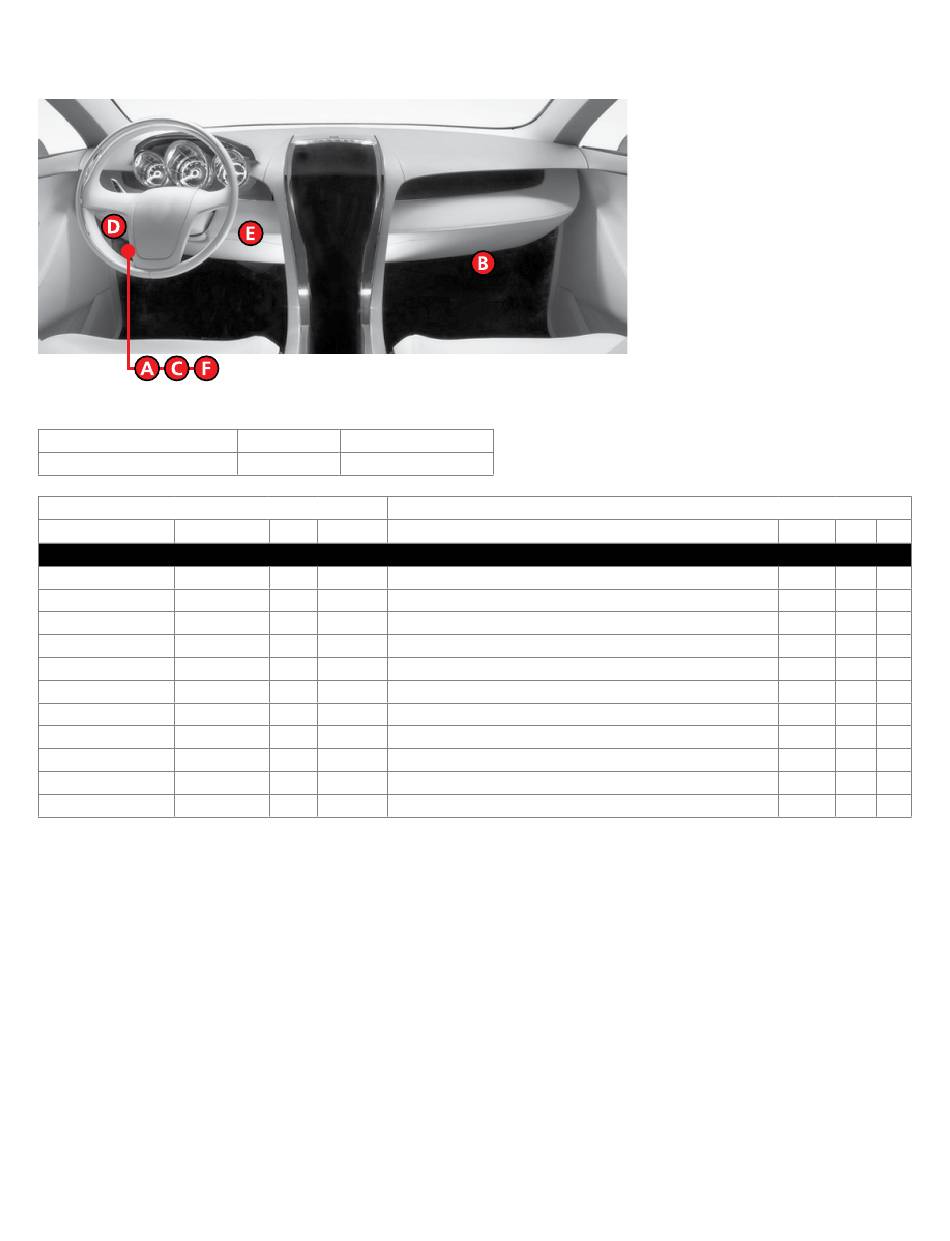

Connector Information
© 2017-05-29 Directed. All rights reserved.
Color Pins Ref.
White 16 A
White 16 A
White 16 A
White 12 B
White 28 C
White 20 D
White 8 E
White 8 E
White 8 E
White 8 E
White 1 F
DS4+ TL10
