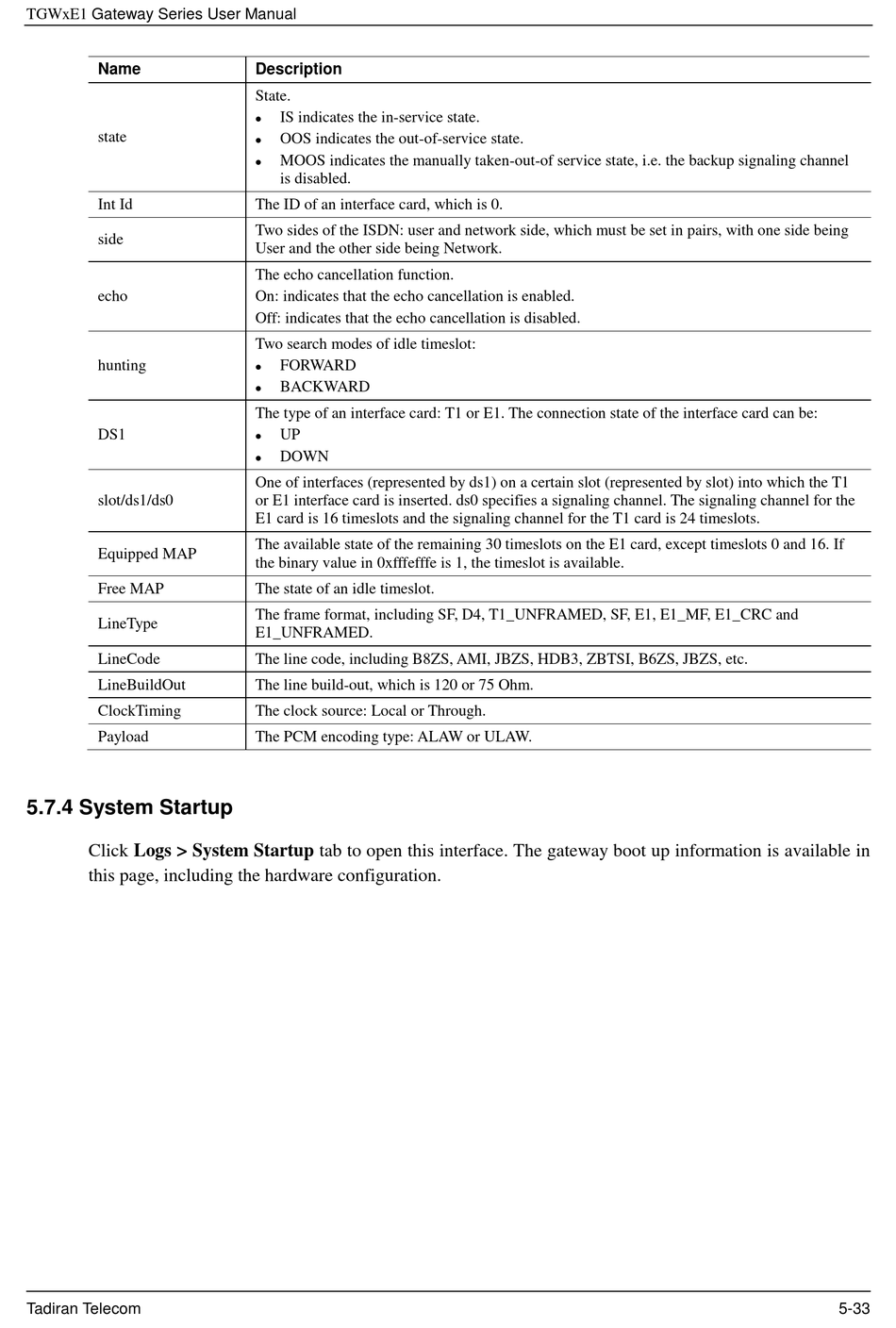

TGWxE1 G a te w a y S e rie s U s e r M a n u a l
Name
state
Int Id
side
echo
hunting
DS1
slot/ds1/ds0
Equipped MAP
Free MAP
LineType
LineCode
LineBuildOut
ClockTiming
Payload
5.7.4 System Startup
Click Logs > System Startup tab to open this interface. The gateway boot up information is available in
this page, including the hardware configuration.
Ta d ira n Te le c o m
Description
State.
IS indicates the in-service state.

OOS indicates the out-of-service state.

MOOS indicates the manually taken-out-of service state, i.e. the backup signaling channel

is disabled.
The ID of an interface card, which is 0.
Two sides of the ISDN: user and network side, which must be set in pairs, with one side being
User and the other side being Network.
The echo cancellation function.
On: indicates that the echo cancellation is enabled.
Off: indicates that the echo cancellation is disabled.
Two search modes of idle timeslot:
FORWARD

BACKWARD

The type of an interface card: T1 or E1. The connection state of the interface card can be:
UP

DOWN

One of interfaces (represented by ds1) on a certain slot (represented by slot) into which the T1
or E1 interface card is inserted. ds0 specifies a signaling channel. The signaling channel for the
E1 card is 16 timeslots and the signaling channel for the T1 card is 24 timeslots.
The available state of the remaining 30 timeslots on the E1 card, except timeslots 0 and 16. If
the binary value in 0xfffefffe is 1, the timeslot is available.
The state of an idle timeslot.
The frame format, including SF, D4, T1_UNFRAMED, SF, E1, E1_MF, E1_CRC and
E1_UNFRAMED.
The line code, including B8ZS, AMI, JBZS, HDB3, ZBTSI, B6ZS, JBZS, etc.
The line build-out, which is 120 or 75 Ohm.
The clock source: Local or Through.
The PCM encoding type: ALAW or ULAW.
5 -3 3
