TGWxE1 G a te w a y S e rie s U s e r M a n u a l

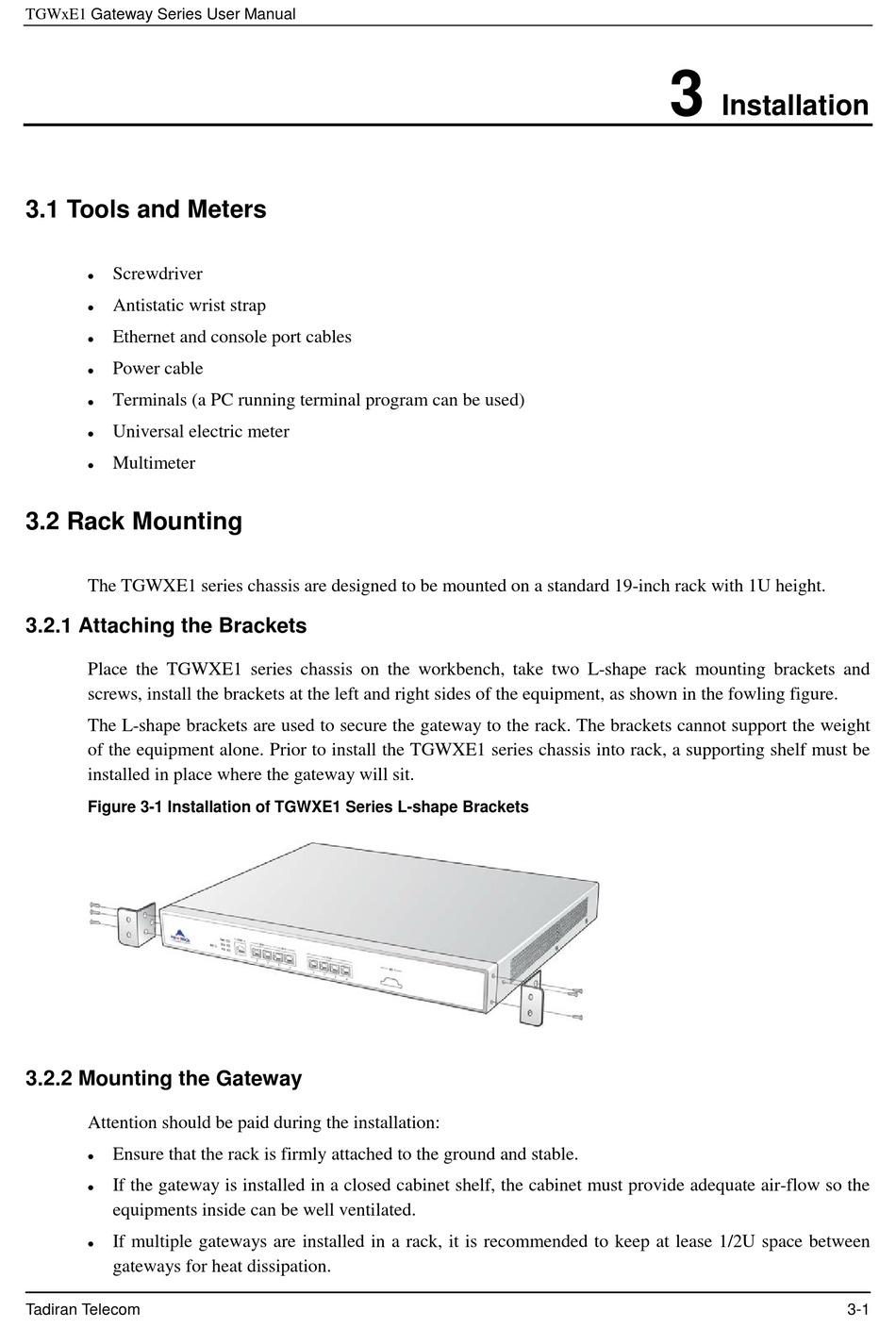

3.1 Tools and Meters

Screwdriver

Antistatic wrist strap

Ethernet and console port cables

Power cable

Terminals (a PC running terminal program can be used)

Universal electric meter

Multimeter


3.2 Rack Mounting

The TGWXE1 series chassis are designed to be mounted on a standard 19-inch rack with 1U height.

3.2.1 Attaching the Brackets

Place the TGWXE1 series chassis on the workbench, take two L-shape rack mounting brackets and
screws, install the brackets at the left and right sides of the equipment, as shown in the fowling figure.
The L-shape brackets are used to secure the gateway to the rack. The brackets cannot support the weight
of the equipment alone. Prior to install the TGWXE1 series chassis into rack, a supporting shelf must be
installed in place where the gateway will sit.
Figure 3-1 Installation of TGWXE1 Series L-shape Brackets

3.2.2 Mounting the Gateway

Attention should be paid during the installation:
Ensure that the rack is firmly attached to the ground and stable.

If the gateway is installed in a closed cabinet shelf, the cabinet must provide adequate air-flow so the

equipments inside can be well ventilated.
If multiple gateways are installed in a rack, it is recommended to keep at lease 1/2U space between

gateways for heat dissipation.
