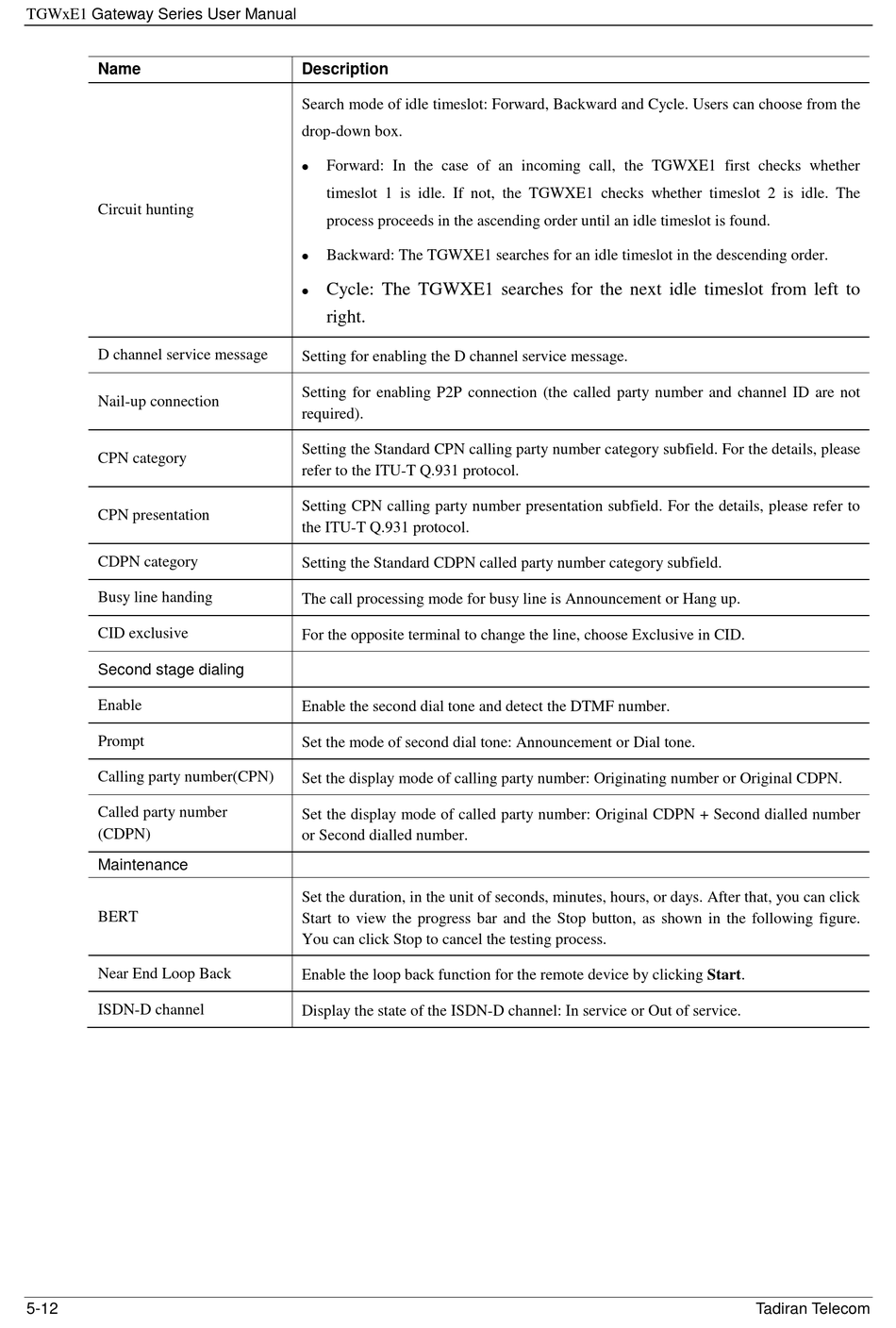

TGWxE1 G a te w a y S e rie s U s e r M a n u a l
Name
Circuit hunting
D channel service message
Nail-up connection
CPN category
CPN presentation
CDPN category
Busy line handing
CID exclusive
S e c o n d s ta g e d ia lin g
Enable
Prompt
Calling party number(CPN)
Called party number
(CDPN)
M a in te n a n c e
BERT
Near End Loop Back
ISDN-D channel
5 -1 2
Description
Search mode of idle timeslot: Forward, Backward and Cycle. Users can choose from the
drop-down box.
Forward: In the case of an incoming call, the TGWXE1 first checks whether

timeslot 1 is idle. If not, the TGWXE1 checks whether timeslot 2 is idle. The
process proceeds in the ascending order until an idle timeslot is found.
Backward: The TGWXE1 searches for an idle timeslot in the descending order.

Cycle: The TGWXE1 searches for the next idle timeslot from left to

right.
Setting for enabling the D channel service message.
Setting for enabling P2P connection (the called party number and channel ID are not
required).
Setting the Standard CPN calling party number category subfield. For the details, please
refer to the ITU-T Q.931 protocol.
Setting CPN calling party number presentation subfield. For the details, please refer to
the ITU-T Q.931 protocol.
Setting the Standard CDPN called party number category subfield.
The call processing mode for busy line is Announcement or Hang up.
For the opposite terminal to change the line, choose Exclusive in CID.
Enable the second dial tone and detect the DTMF number.
Set the mode of second dial tone: Announcement or Dial tone.
Set the display mode of calling party number: Originating number or Original CDPN.
Set the display mode of called party number: Original CDPN + Second dialled number
or Second dialled number.
Set the duration, in the unit of seconds, minutes, hours, or days. After that, you can click
Start to view the progress bar and the Stop button, as shown in the following figure.
You can click Stop to cancel the testing process.
Enable the loop back function for the remote device by clicking Start.
Display the state of the ISDN-D channel: In service or Out of service.
